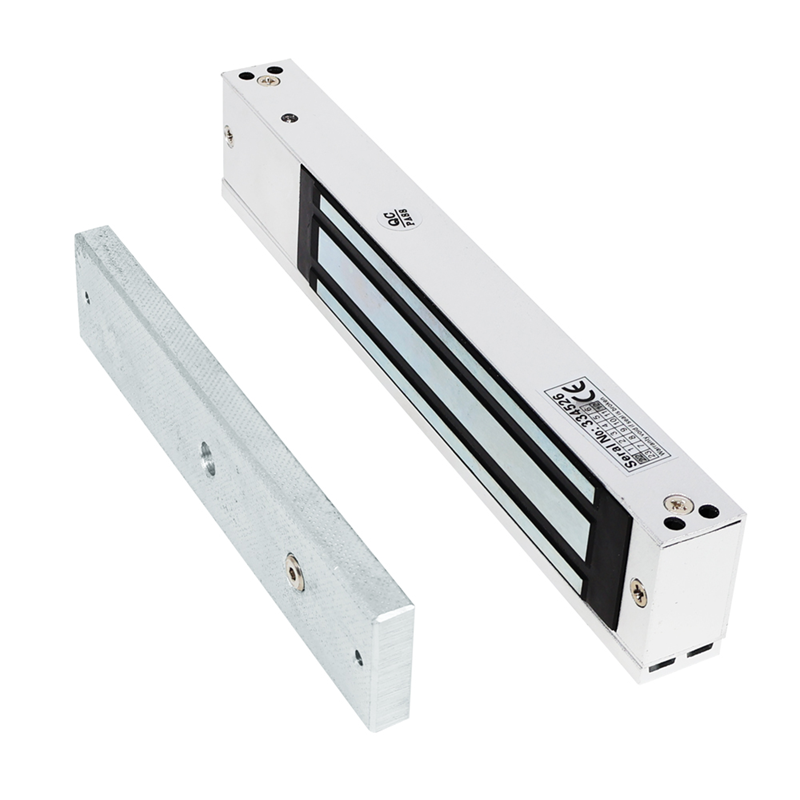

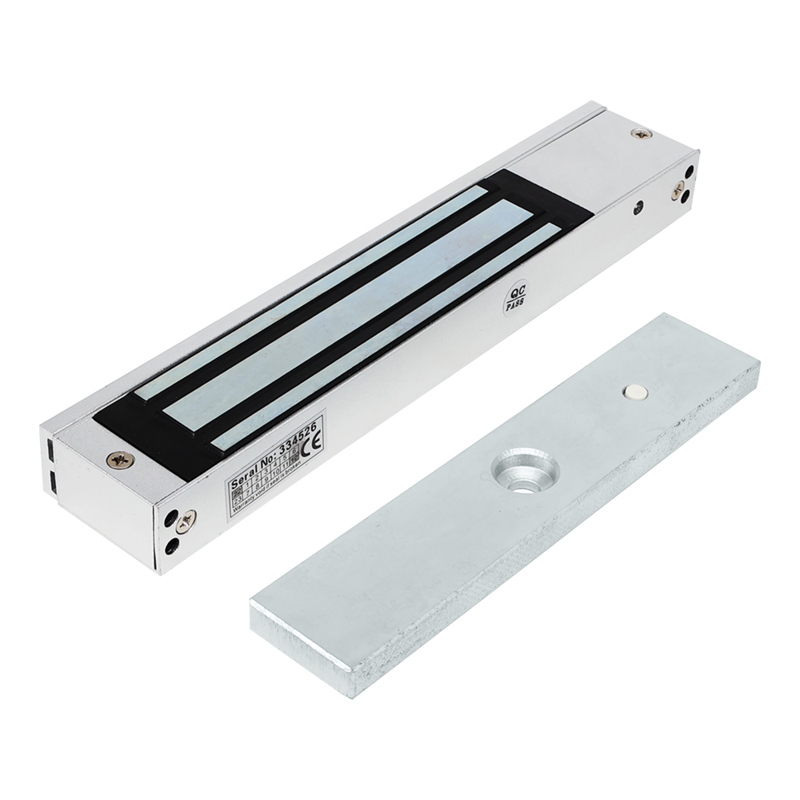

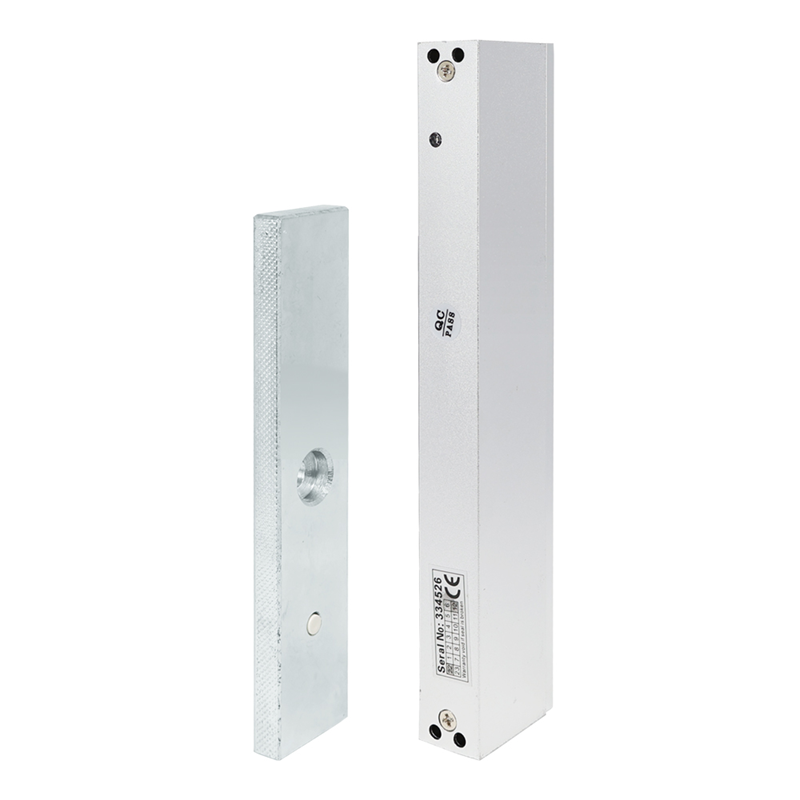

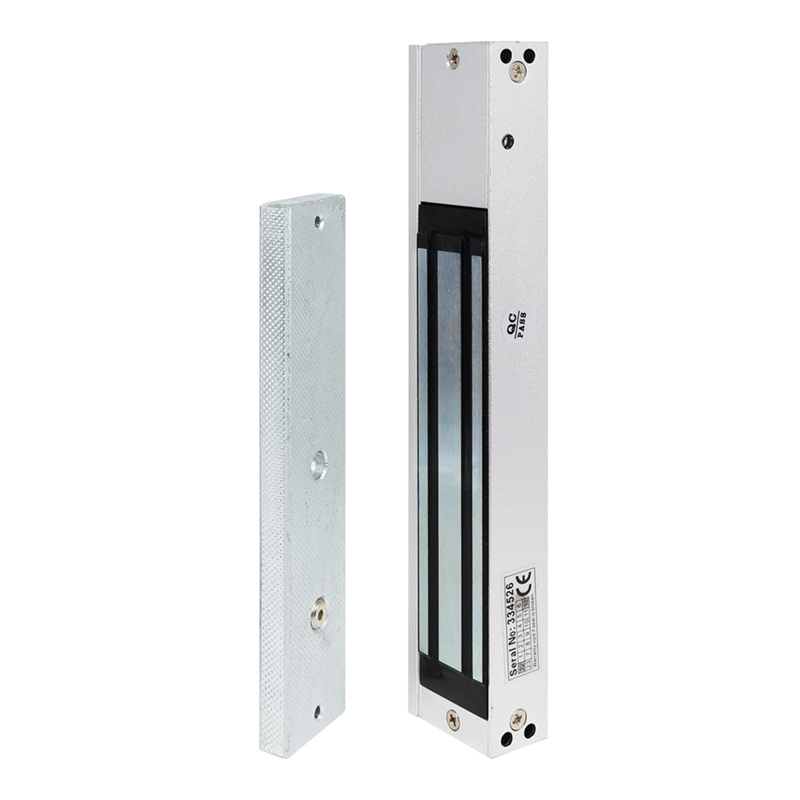

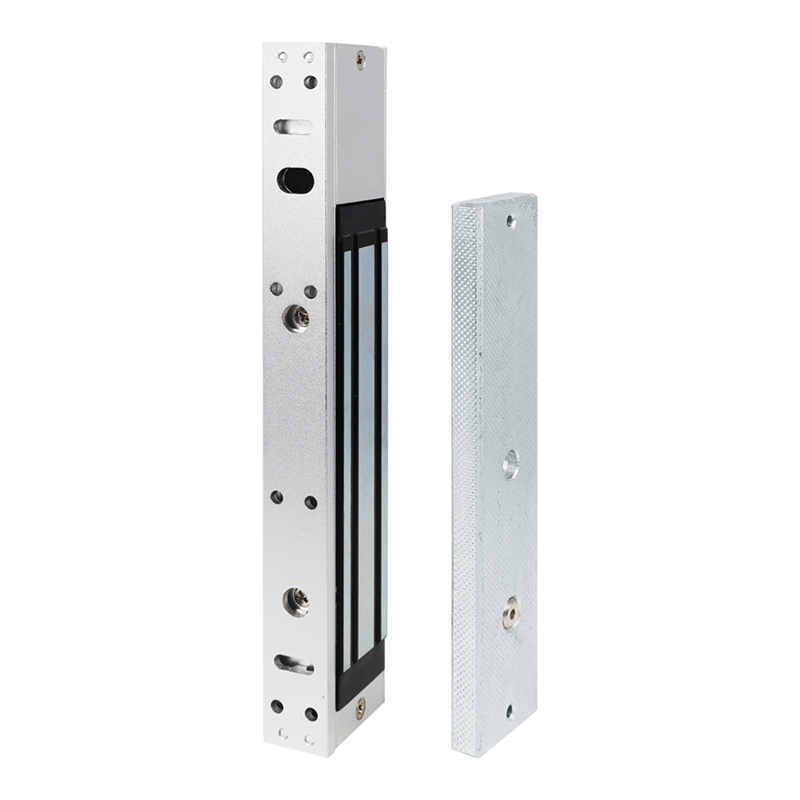

Electric Magnetic Lock 280KG 12V Fail-Safe for Tuya Access Control for Door Gate Garage

Electric Magnetic Lock 280KG 12V Fail-Safe for Tuya Access Control for Door Gate Garage

R 799.00 ZAR
R 899.00 ZAR R 799.00 ZAR
Sale Sold out
Shipping calculated at checkout.



Product Parameter

Parameter Description

Lock size

25L x 4.8W x 2.5H (cm)

Armature Plate size

18L x 3.8W x 1.2H (cm)

Fail-Safe

Locked when energized. Must have Backup power to stay locked.

Holding Force

280kg(600Lbs)

Input Voltage

12V DC

Current

12V/500mA

Suitable

Wooden door, glass door, metal door, fireproof door

Surface Temp

Below 20 oC (68 oF)

Operating Temp

-10 oC ~ 55 oC (14 oF ~ 131 oF)

Humidity

0% ~ 90%(non-condensing)

Cover Finish

Anodic hardening

Lock Finish

Zinc

Armature Plate Finish

Zinc

Weight

1.8kg



Please note that this is the Electric Lock ONLY. It needs to be connected to the Push release button, Power supply, and Access control unit is needed for this product to work correctly.
