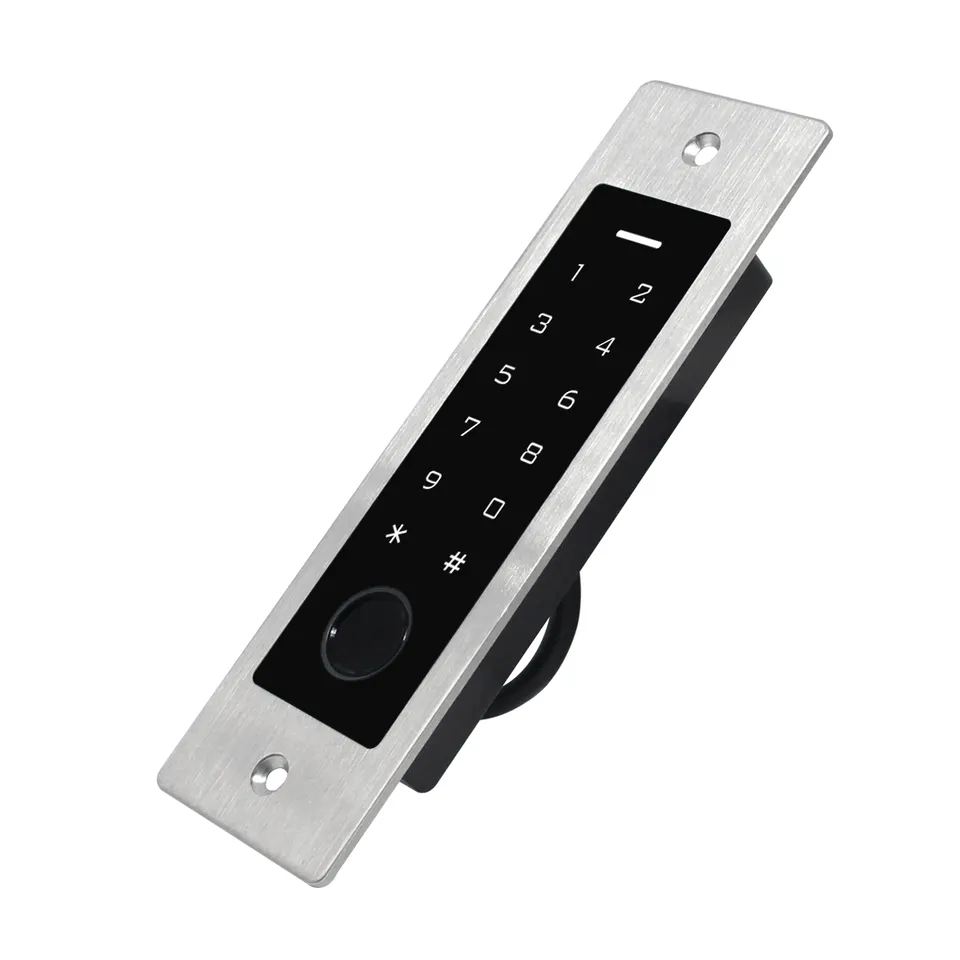

12V Embedded Access Controller for Wiegand Keypad Card Fingerprint Reader for Door Gate Garage Motor

Welcome to Smart Home Automation.

Our 12V Embedded Access Controller is perfect for Wiegand controllers and can be used for Access Control Doors, Gate motors, Garage Motor Etc. Suitable for Homes, Apartments, Houses, Guest Lodges, Bed, and Breakfast accommodations, Airbnb, Shops, Farms, Businesses, etc.

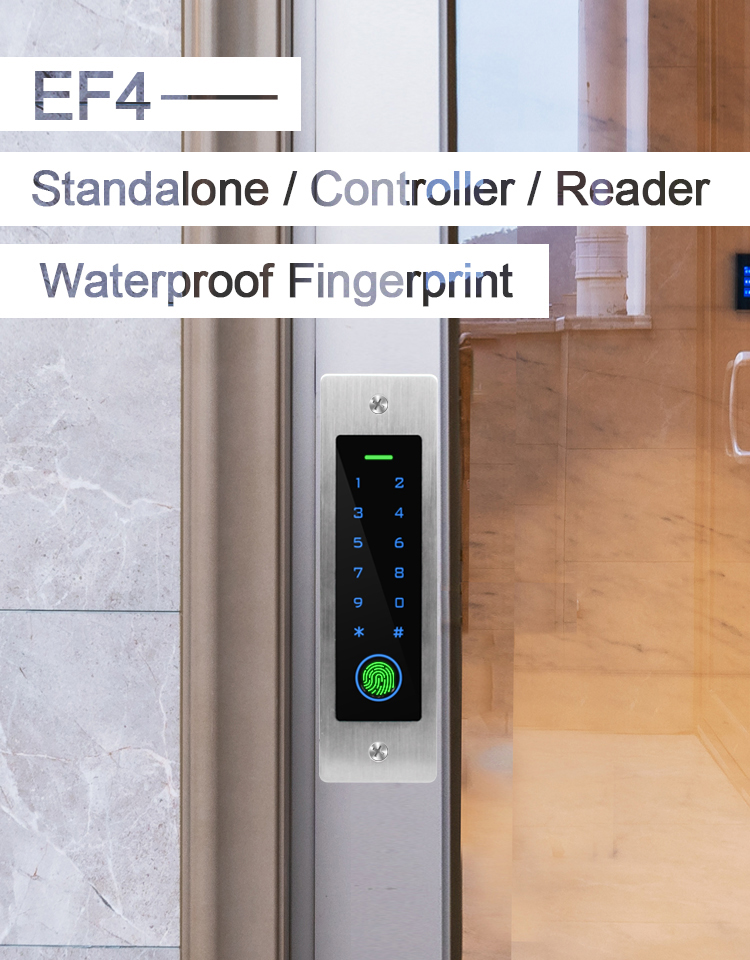

This device is for Single Door use and can be used as a Standalone access controller or Wiegand output Reader.

Features;
Supports up to 1000 users including up to 990 Common Users (100 Fingerprints, 890 Cards/ Passwords users), and 10 Visitors.

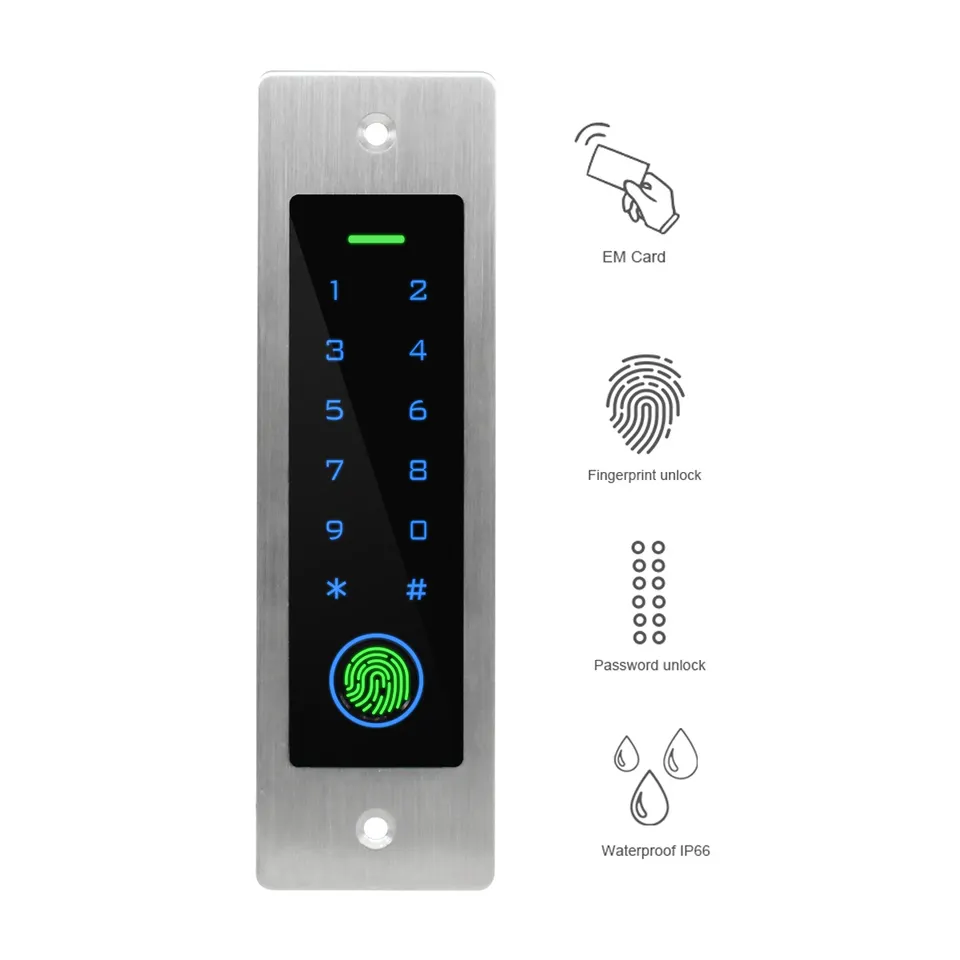

Unlock by Password, Card, or Fingerprint.
Password Peeping Prevention function allows you to input a random number then your password then random numbers and once you press the # key then it will register the correct password for example; XXXX CorrectPassword XXXX (X being Random Numbers) Max 10 Digits.

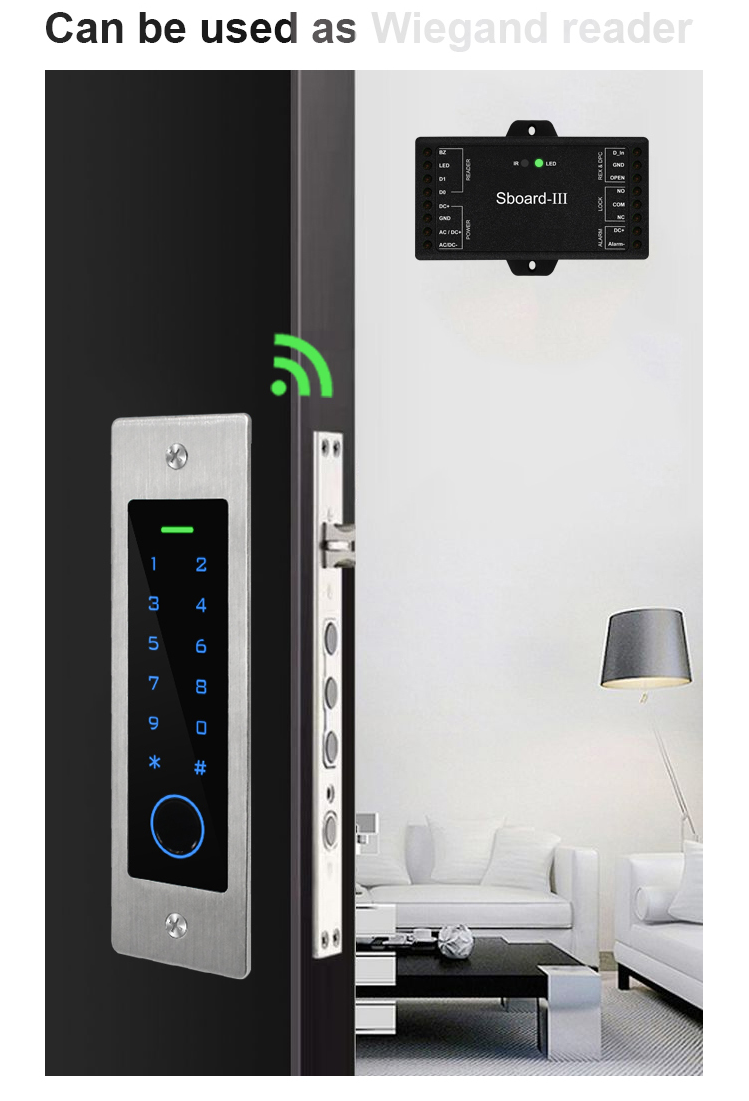

Can be used as a stand-alone system and or connected to a Wiegand Controller.

Specifications;
Electrical Voltage: DC12V-18V | Working Current 150mA | Idle Current 60mA.
Wiring Connections support Relay Output 2amp max (NO, Common, and NC), Exit Button, Wiegand Input, and Wiegand Output.

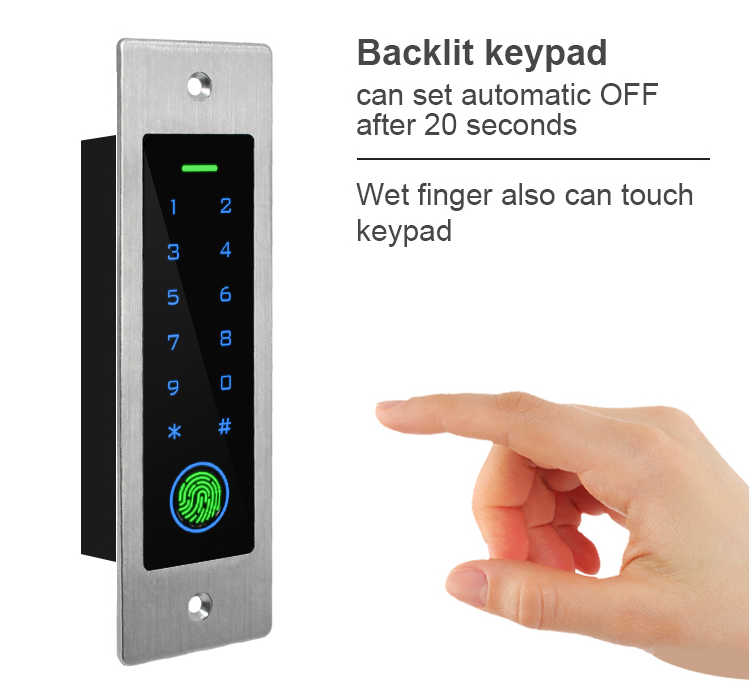

Keypad for Password or Code | Fingerprint Reader | Card Reader (ID Card 125KHz EM) | Wiegand Reader (26-44 Bits input and output).

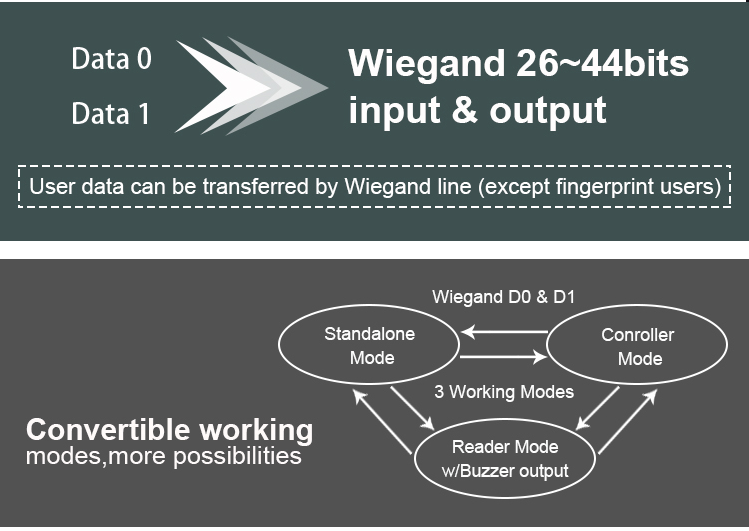

Supports Wiegand Controllers 26~44 Bits Keypad for Password or Code or Card Reader with 4Bits, 8Bits (ASCII), or 10 Bits Virtual number outputs.
User Data (Card or Password/Pins) can be transferred via D0 and D1 inputs. Fingerprint Data cannot be transferred.
Can be used for Doors, Gate Motors, Garage motors, etc.

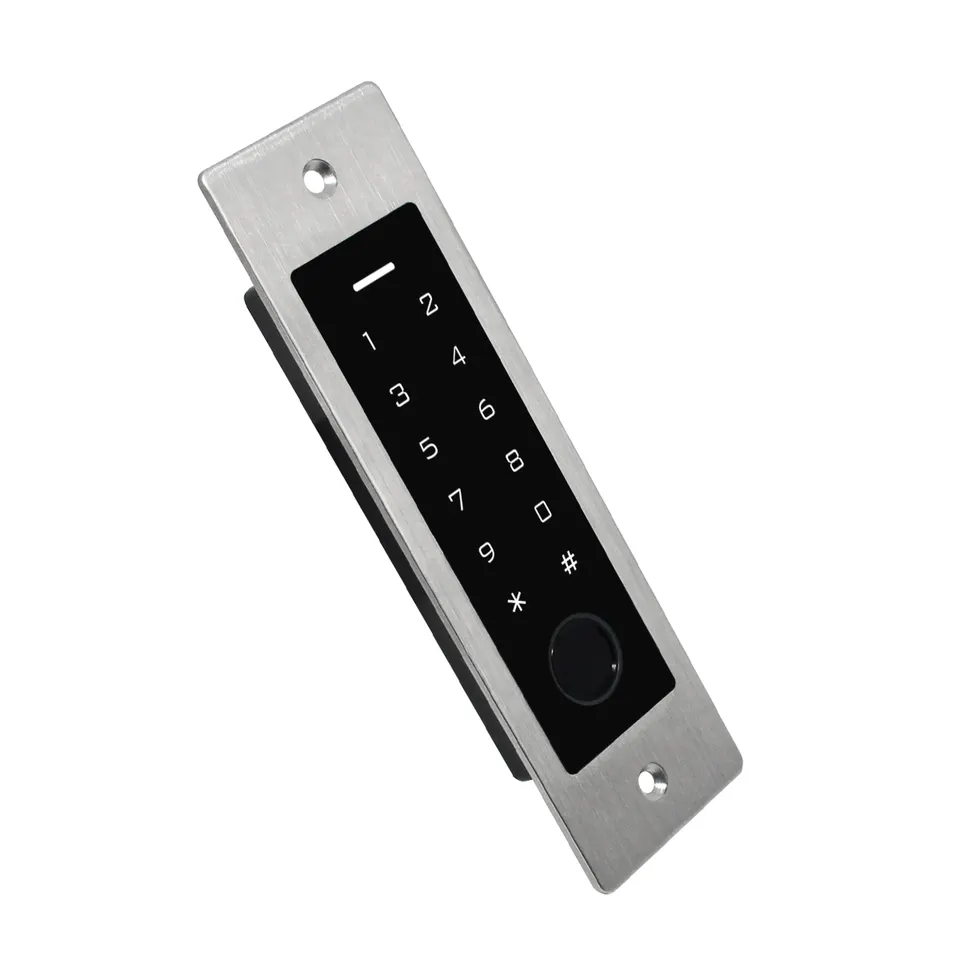

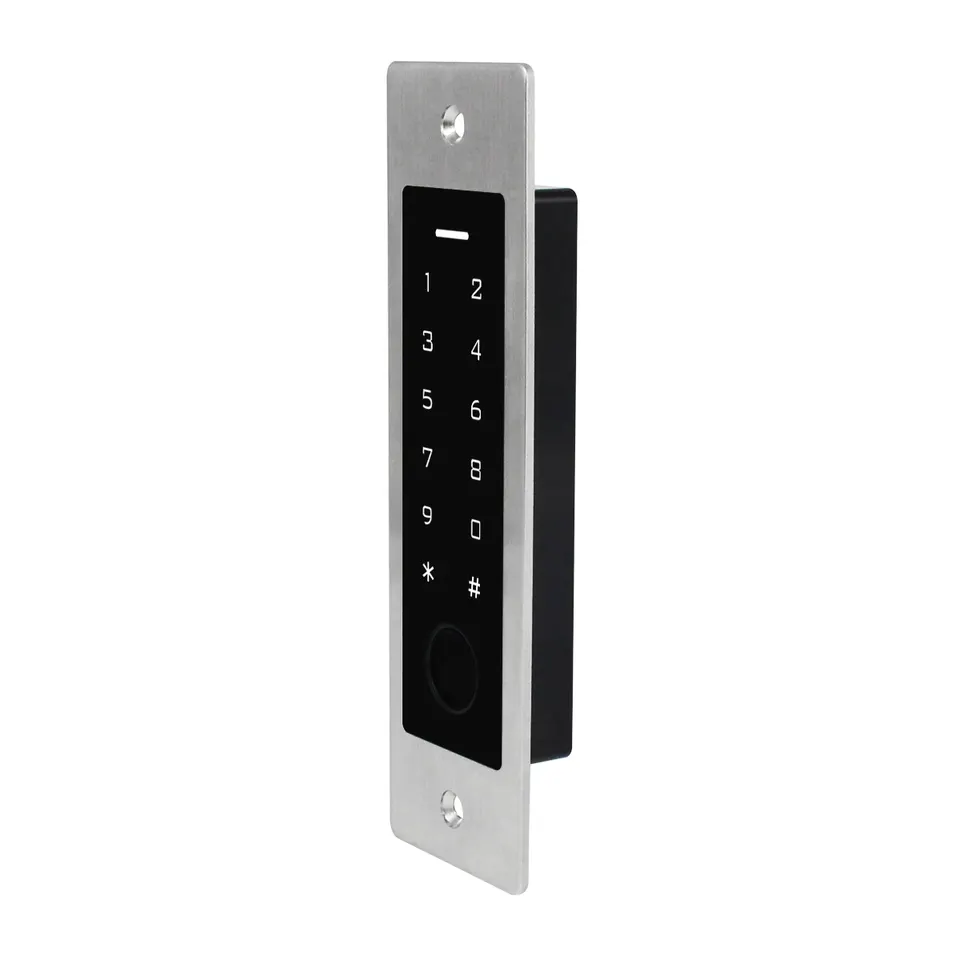

Material: Stainless Steel | Color: Silver and Black.
Waterproof IP66.

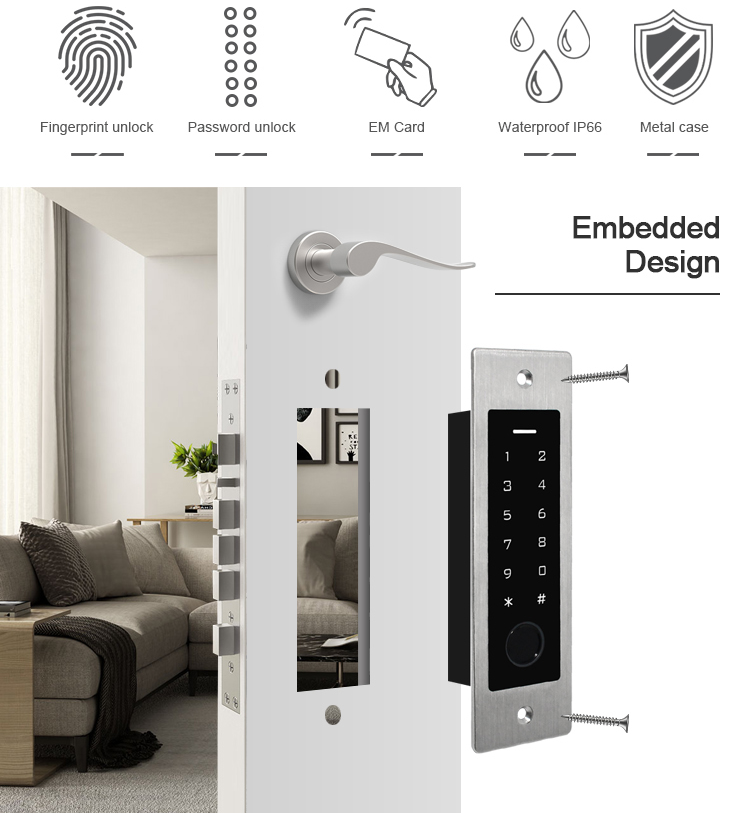

Installation: Indoor or Outdoor.

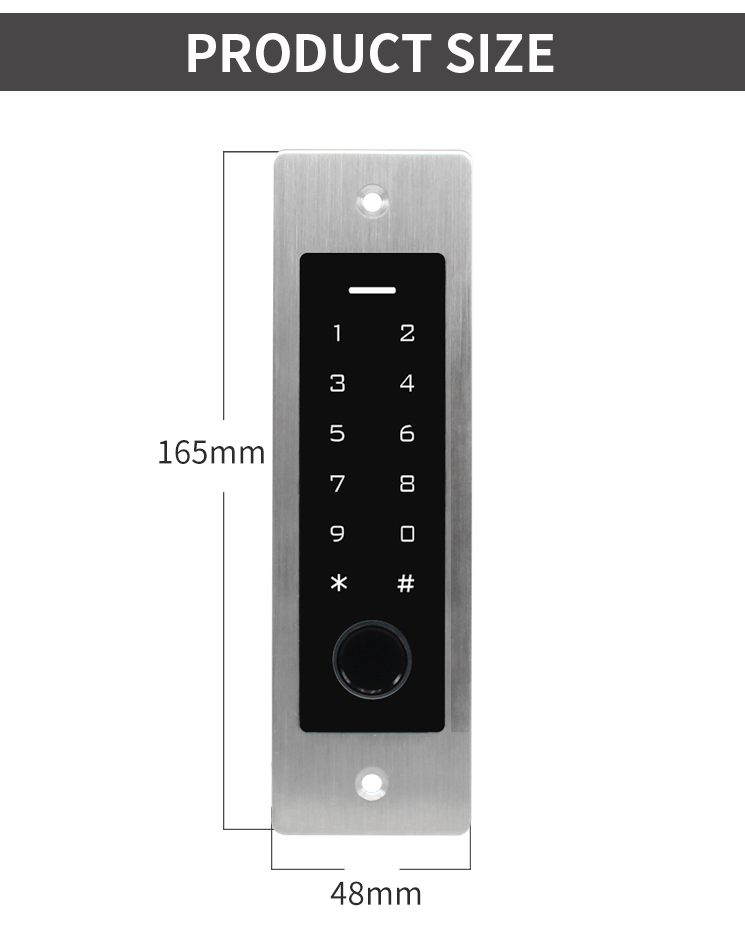

Dimensions: Box 175 x 70 x 55mm
Weight: 0.21kg.

What's in the Package;
1 x 12V Embedded Access Controller.
1 x Diode IN4004.
1 x Set of Screws.
1 x User Manual.

Please note that this is only the Access Controller as per the Picture. A Magnet Door Lock, Power Supply, Push Release Button, etc is needed in order for this to work properly.
