Access Control Embedded Waterproof 12V 24V Infrared No Touch Exit Button Door Release Button

Welcome to the Digital Life Smart Home Automation Range.

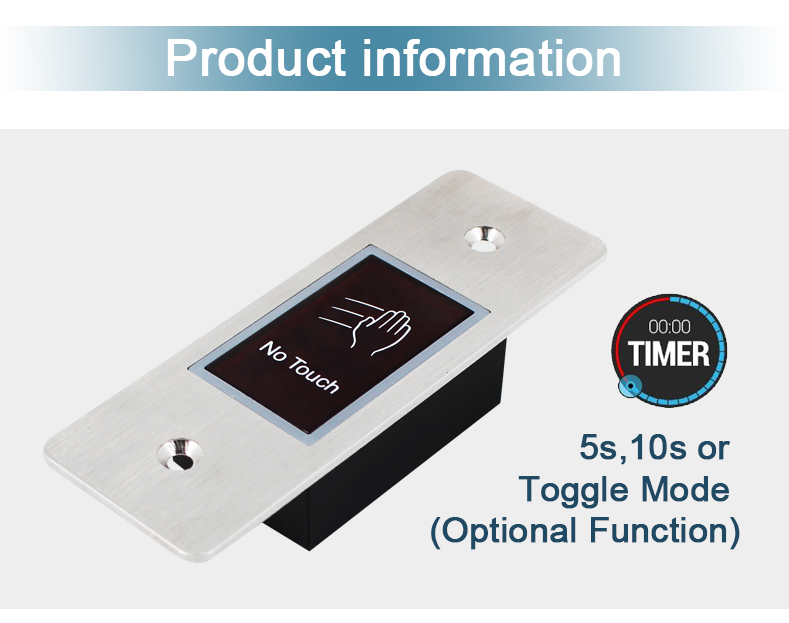

Our Access Control Embedded IP66 Infrared No Touch Exit Button Door Release Button is the perfect Exit Door Release Button.

This product is meant to be used together with our Tuya Smart Access Control or if you want to replace your Exit button that supports 12V Exit Buttons.

Suitable for Homes, Apartments, Houses, Guest Lodges, Bed, and Breakfast accommodations, Airbnb, Shops, Farms, Businesses, etc. This device is for Single Door use.

Features;
Infrared induction No Touch Exit Button.
Blue Backlight.
The backlight changes to green when it senses the hand.
Sensor Distance: 2.5cm to 11cm (Adjustable).
Timer Delay: 5s | 10s | Toggle Mode.

Specifications;
Model: Ebutton 1-X
Electrical Voltage: DC10V-24V | Working Current ≤25mA | Idle Current ≤15mA.
Wiring Connections support Relay Output 2amp max (Power +, Ground, Normally Open, Common, and Normally Closed).
Material: Stainless Steel.
Color: Silver.

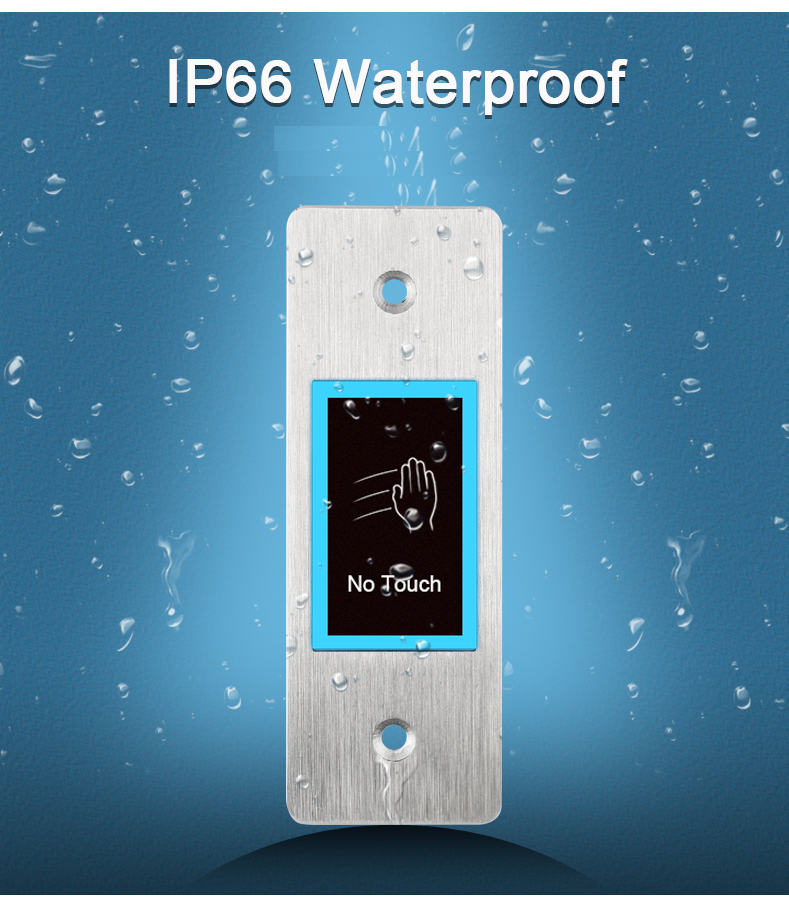

Waterproof IP66.
Installation: Indoor or Outdoor.
Dimensions: 116 x 41 x 24mm
Weight: 0.19kg.

What's in the Package;
1 x Embedded IP66 Infrared No Touch Exit Button Door Release Button.

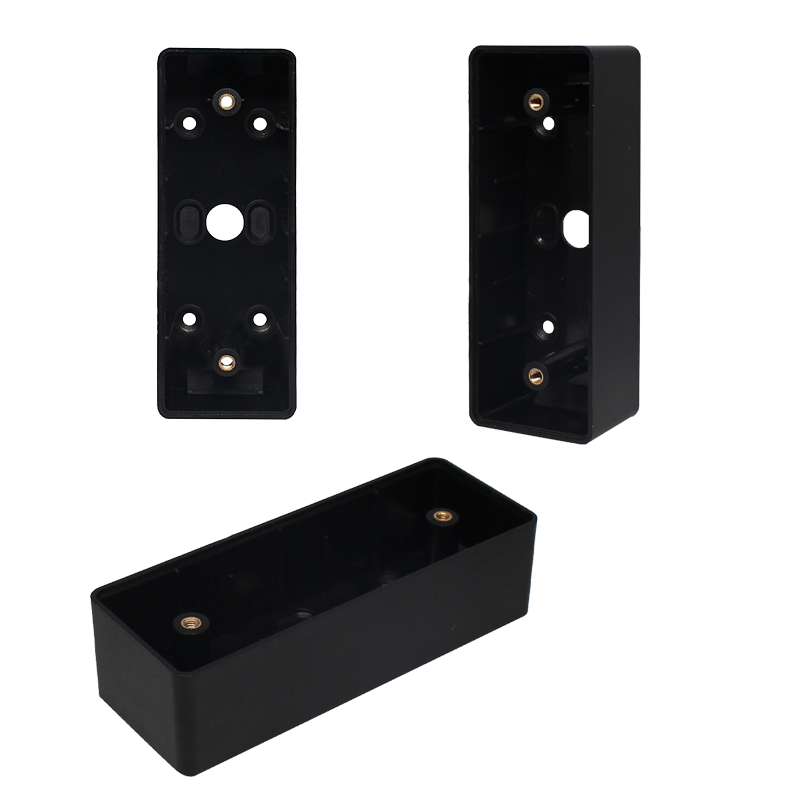

1 x Mounting Box (Black).
1 x Diode IN4004.
1 x Set of Screws.
1 x User Manual.
