Access Control Power Supply DC 12V 3A

Welcome to the Digital Life Smart Home Automation Range.

Our Power Supply Access Controller is perfect for your DC 12V Access control.

This product is meant to be used together with your DC 12V Access Controllers and or DC 12V Electric Locks or with our Tuya Smart Access Control or if you want to replace your Existing 12V access control.

Suitable for Homes, Apartments, Houses, Guest Lodges, Bed, and Breakfast accommodations, Airbnb, Shops, Farms, Businesses, etc. This device is for Single Door use.

Features;
DC 12V Power Supply with built-in Access Controller.
Input AC 110V to 240V into the red wires.
Output wires for DC 12V Power to Access controller (+12V & GND) | Electric Lock (COM, NC, NO) | Door Exit Push Button (Push).
Timer Delay (Adjustable): 0 to 15s

Specifications;
Electrical Voltage: Input: AC 110-240V | Output: DC12V 3A 30W Max.

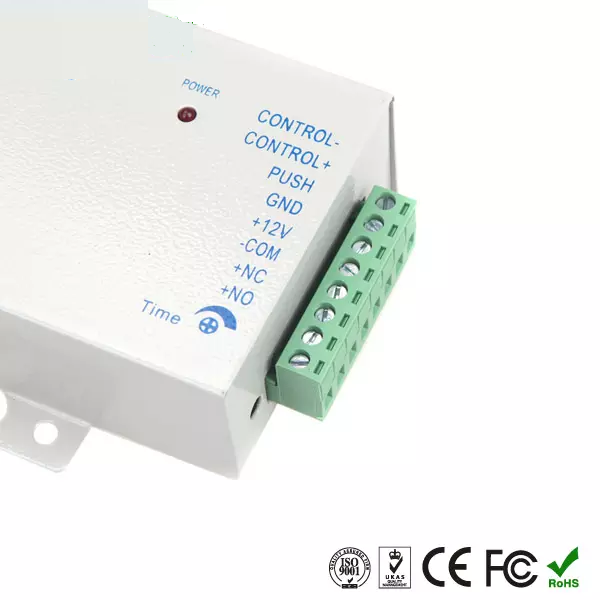

Wiring Connections support Control+ | Control- | Push | GND (Ground) | +12V | -COM (Common) | +NC (Normally Closed) | +NO (Normally Open) | Time.
Relay Output 12V 3amp 30w Max.
Material: Metal.
Color: Grey.
Installation: Indoor / Outdoor. This product is Not Waterproof. Please make sure no water/ dew can get to the product.
Dimensions: Box: 138 x 96 x 40mm
Weight: 320g.

What's in the Package;
1 x Access Control Power Supply DC 12V 3A.
1 x User Manual.
