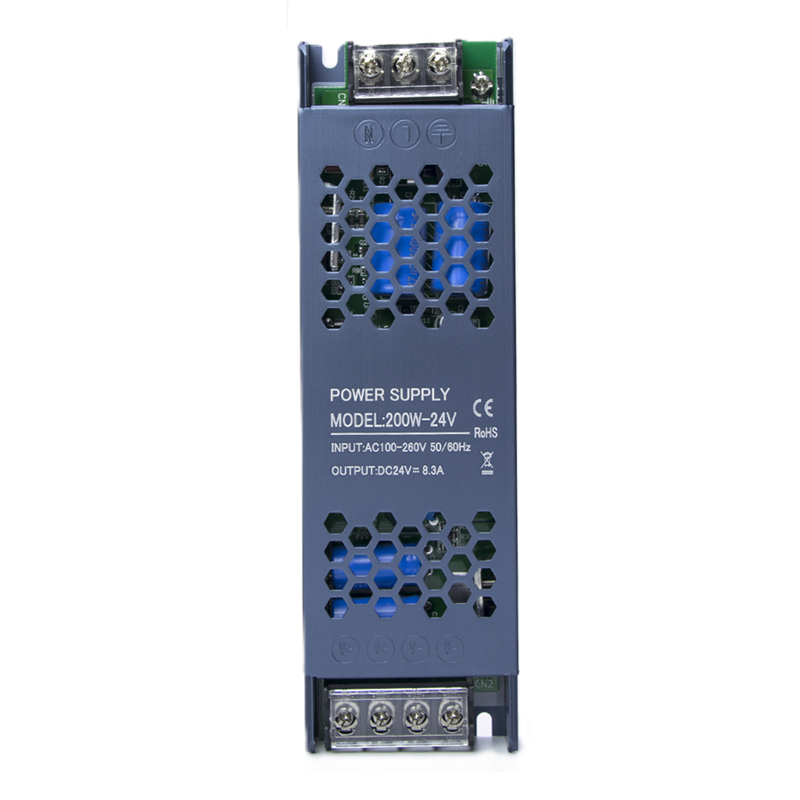

DC 24V 8.3A 200W Slim LED Driver Constant Voltage Power Supply for LED Strips & Lighting | AC Input

Welcome to Smart Home Automation.

This ultra‑slim 200W LED driver delivers stable 24V constant‑voltage power for LED strips, signage, and low‑voltage lighting. Its aluminium body provides excellent heat dissipation, while built‑in protections ensure safe, reliable performance. Compact, efficient, and easy to install — perfect for residential, commercial, and architectural lighting setups.

Use For;
- LED strip lights.
- LED neon flex.
- Display lighting.
- Signage.
- Under‑cabinet lighting.
- Architectural lighting.

Features;
- Ideal for LED strips, modules, signage, and low‑voltage lighting.
- Thin, compact design for tight installations. Fits easily behind cabinets, ceilings, and narrow profiles
- 24V Stable, regulated output. Prevents flicker and extends LED lifespan.
- Efficient power conversion.
- Aluminium housing improves heat dissipation.
- Safe for long‑term continuous operation.
- Over‑voltage protection | Over‑current protection | Short‑circuit protection.

Specifications;
- Electrical Voltage: Input AC 176V-264V | Output DC 24V 8.3A 200W Max.
- Max Wattage: For Continuous use, the wattage should not exceed more than 80% of its rated output capacity. In this case, LED Lighting should not exceed 160W to prolong the device's lifespan.
- LED Strip must support the same Voltage you are outputting from the Power Supply.
- Material: Aluminium.
- Installation: Indoor. Power Supply is NOT Waterproof.
- Dimensions: Box: 184 x 55 x 27mm. | Power Supply: 180 x 50 x 25mm
- Weight: 190g.

What's in the Package;
1 x DC 24V 8.3A 200W Slim LED Driver Constant Voltage Power Supply.

Available in DC24V 60W | 100W | 200W | 300W | 400W. Please view our listings.

Voltage Warning: Input voltage must Exactly match the LED strip. A 12V power supply for a 12V LED strip, and a 24V power supply for a 24V LED strip. Connecting a 12V strip to a 24V Power Supply or vice versa will instantly destroy the controller and lighting.

Wattage Capacity & Safety Margin: Never run an LED power supply at 100% capacity. Total the wattage of all connected lights and add 20% to 30% extra capacity as a buffer. Running a power supply at maximum load creates excessive heat and drastically reduces its lifespan.

Environmental & IP Ratings: Choose a driver with an appropriate IP rating for your installation area. Using a basic indoor-rated power supply (e.g., IP20) in damp bathrooms, outdoors, or coastal environments leads to rapid corrosion and failure. Non-waterproof units with exposed metal housings require clear airflow (free air convection) and should not be buried in unventilated wall spaces or covered with thermal insulation.

Dimming Limitations: Standard power supplies cannot be dimmed. If you are installing dimmers, you must ensure the power supply is specifically a dimmable driver (e.g., TRIAC or 0-10V). Mixing incompatible dimmers and non-dimmable drivers can cause buzzing, flickering, and damage.

Wiring and Safety: Safety First: Always disconnect the 220V/230V AC mains supply before making or adjusting any connections. Ensure that the live, neutral, and earth cables are connected to the correct terminals, especially on exposed terminal block units.
