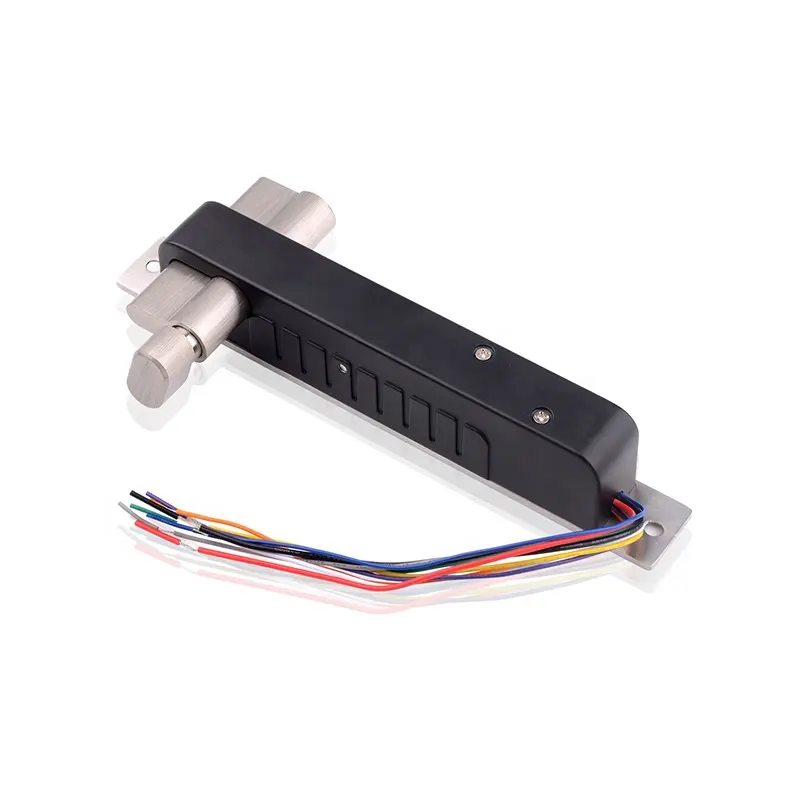

Electric Bolt Lock 12V 24V Fail-Secure w/ Key Cylinder & Contact Sensor for Tuya Access Control for Door Gate Garage
Electric Bolt Lock 12V 24V Fail-Secure w/ Key Cylinder & Contact Sensor for Tuya Access Control for Door Gate Garage
Regular price
R 1,799.00 ZAR
Regular price
R 1,999.00 ZAR
Sale price
R 1,799.00 ZAR
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
|
Product Parameter
|
Parameter Description
|
|
Fail Secure
|
Unlocked when energized. When no power then this will stay locked.
|
|
Bolt
|
1.2cm DIA, stainless steel 1.8cm throw
|
| Backup | Key Cylinder slot for Manual Key Backup. |
| Key Cylinder | One side Key and opposite side Knob. The knob side turns freely. Can use with other Key cylinders of the same size. |
|
Voltage
|
12V / 24V DC
|
|
Start Current
|
1200mA
|
|
Standby Current
|
200mA
|
|
Suitable For
|
Wooden door, glass door, metal door
|
|
Signal Output
|
Built In Door Contact Sensor Door status output, NO/COM. Pushes the Bolt out once both sides meet together.
|

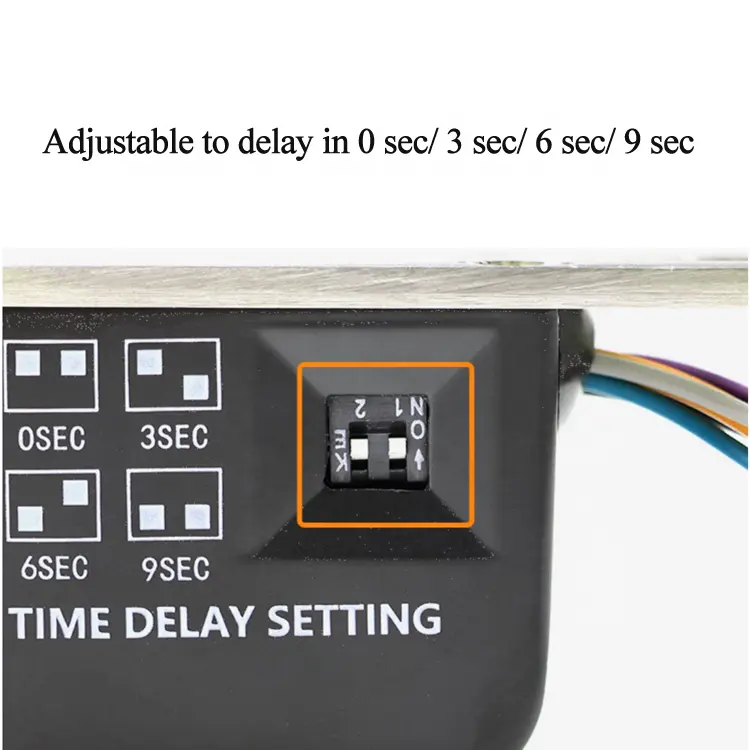

| Time Delay | Built-in 0, 3, 6, 9 Seconds. |
|
Surface Temp
|
Low Temperature
|
|
Induction Distance
|
8mm
|
|
Operating temp
|
-10 oC ~ 55 oC (14 oF ~ 131 oF)
|
|
Operating Humidity
|
0% ~ 90%(non-condensing)
|
|
Special Designed
|
Tested to 200000 cycles
|
|
Weight
|
0.8kg
|
Please note that this is the Electric Lock ONLY. It needs to be connected to the Push release button, Power supply, and Access control unit is needed for this product to work correctly.
