Electric Bolt Lock CS5 12V Fail-Safe Contact Sensor for Tuya Access Control for Door Gate Garage
Electric Bolt Lock CS5 12V Fail-Safe Contact Sensor for Tuya Access Control for Door Gate Garage
Regular price
R 649.00 ZAR
Regular price
R 799.00 ZAR
Sale price
R 649.00 ZAR
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
|
Product Parameter
|
Parameter Description
|
|
Fail-Safe
|
Locked when energized. Must have Backup power to stay locked.
|
|
Face Plate
|
20.0L x 2.8W x 4.1H (cm)
|
|
Strike
|
9.0L x 2.5W x 0.2H (cm)
|
|
Bolt
|
1.6cm DIA, stainless steel 1.6cm throw
|
|
Voltage
|
12V DC
|
|
Start Current
|
900mA
|
|
Standby Current
|
150mA
|
|
Solid Bolt
|
Polishing housing, 1500Kg holding force
|
|
Suitable For
|
Wooden door, glass door, metal door
|
|
Signal Output
|

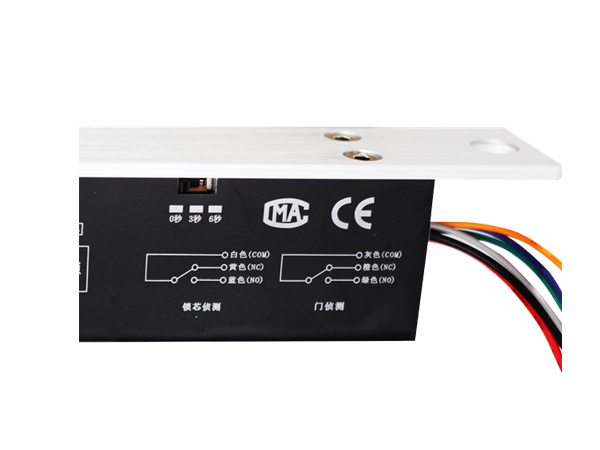

Built In Door Contact Sensor Door status output, Door status output, NC/NO/COM. Pushes the Bolt out once both sides meet together.
|
| Time Delay | Built-in 0, 3, 6 Seconds. |
|
Surface Temp
|
Low Temperature
|
|
Induction Distance
|
8mm
|
|
Operating temp
|
-10 oC ~ 55 oC (14 oF ~ 131 oF)
|
|
Operating Humidity
|
0% ~ 90%(non-condensing)
|
|
Special Designed
|
Tested to 500000 cycles
|
|
Face place material
|
High aluminum, carrulous line finished
|
|
Weight
|
0.8kg
|
Please note that this is the Electric Lock ONLY. It needs to be connected to the Push release button, Power supply, and Access control unit is needed for this product to work correctly.
