Electric Bolt Lock CS6 12V Fail-Secure Contact Sensor for Tuya Access Control for Door Gate Garage

Welcome to the Digital Life Smart Home Automation Range.

Our Electric Bolt Lock is the perfect Lock for your 12V access control.

This product is meant to be used together with our Tuya Smart Access Control or if you want to replace your Electric lock that supports 12V.

Suitable for Homes, Apartments, Houses, Guest Lodges, Bed, and Breakfast accommodations, Airbnb, Shops, Farms, Businesses, etc. This device is for Single Door use.

Features;
Fail Secure Electric Bolt ensure the Bolt is pushed out even if there is a power cut. Bolt only unlocks when power runs through.
Built-in Door Contact Sensor Door output, NC/NO/COM. Pushes the Bolt out once both sides meet together.
Built-in Timer Delay: 0, 3, 6 Seconds.

Specifications;
Model: CS6
Electrical Voltage: DC12V | Start Current ≤1100mA | Standby Current ≤150mA.
Fail Secure means Unlocked when energized. When no power then this will stay locked (Bolt out).
Suitable For Wooden Doors, Glass Doors, and Metal Doors.

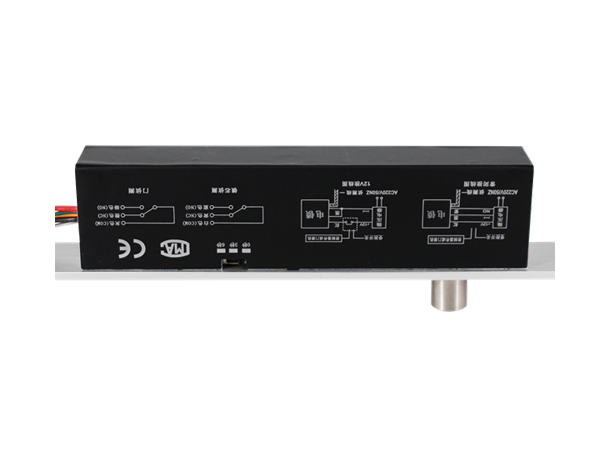

Wiring Connections support Power +, Ground, Normally Open, Common, and Normally Closed).
Holding force: 1500kg
Magnetic Induction distance of 3mm for contact sensor magnet to work properly.
Material: High aluminum, carrulous line finished.
Color: Silver.
Installation: Indoor or Outdoor. This product is not waterproof.

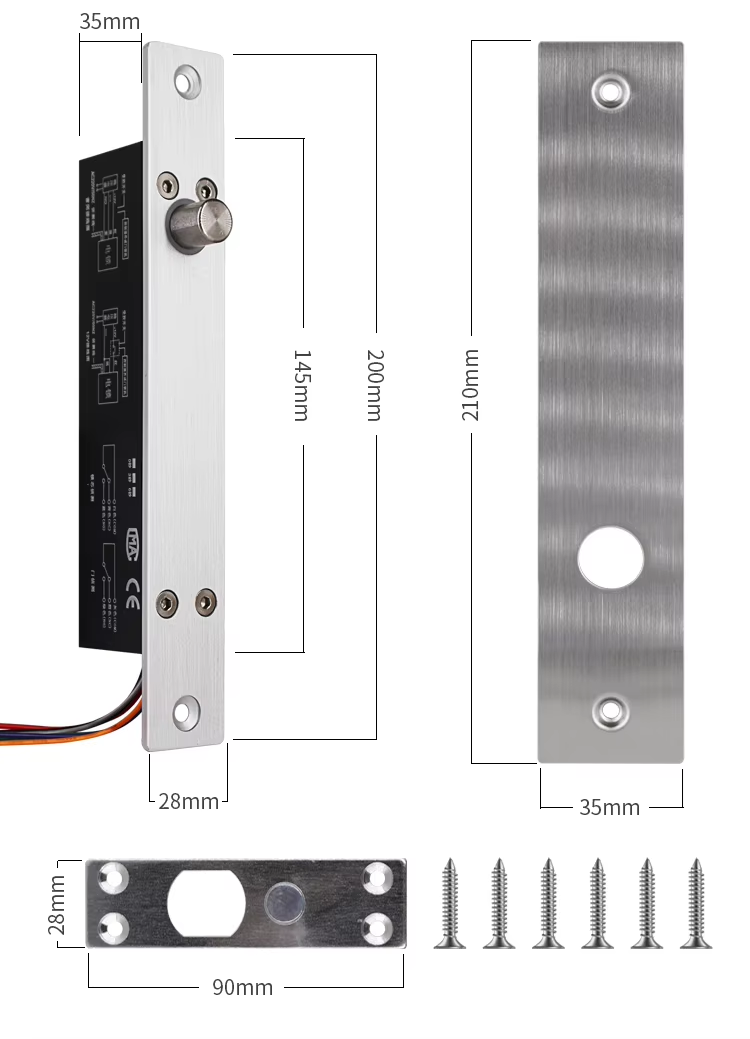

Dimensions: Box: 233 x 85 x 43mm | Face Plate: 20.0L x 2.8W x 4.1H (cm) | Strike: 9.0L x 2.5W x 0.2H (cm) | Bolt: 1.6cm DIA, stainless steel 1.6cm throw.
Weight: 452g.

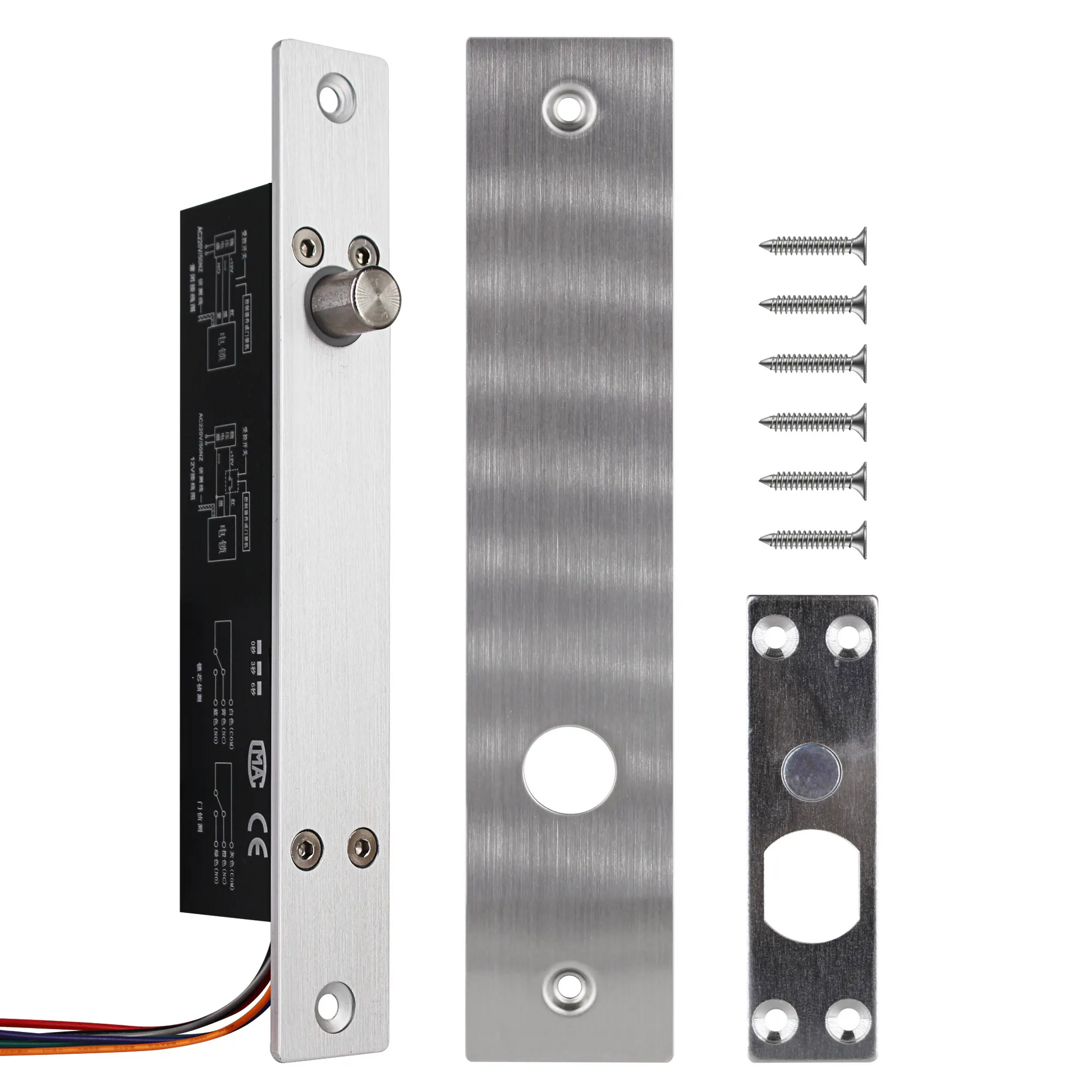

What's in the Package;
1 x Electric Bolt Lock CS6 12V Fail-Secure.
1 x Magnet Contact Plate.
1 x Drill Hole Cutout Template.
1 x Set of Screws.
1 x User Manual.

Please note that this is the Electric Lock ONLY. It needs to be connected to the Push release button, Power supply, and Access control unit is needed for this product to work correctly.
