Smart Life Tuya Bluetooth Access Control Fingerprint Keypad Card Key Cylinder Door Lock (Black)

Welcome to Smart Home Automation.

Our Smart Door Lock is the perfect access control for opening your Doors via Fingerprint, Keypad, Card, or Mobile smartphones via the Tuya/ Smart Life App from Bluetooth range or from anywhere in the world with the additional purchase of our Bluetooth to Wi-Fi Gateway.

Suitable for Homes, Apartments, Houses, Guest Lodges, Bed and Breakfast accommodations, Airbnb, Shops, Farms, Businesses, etc.

All you need is Our Smart Home Devices, Tuya/ Smart Life app and Bluetooth phone within Bluetooth range to set up and control Device. Some of Our Devices are Battery Powered so you don't have to worry about messy cables or the need to run cables.

Features;
Supports up to 50 users Max including up to 50 Fingerprints / Passwords / Cards.

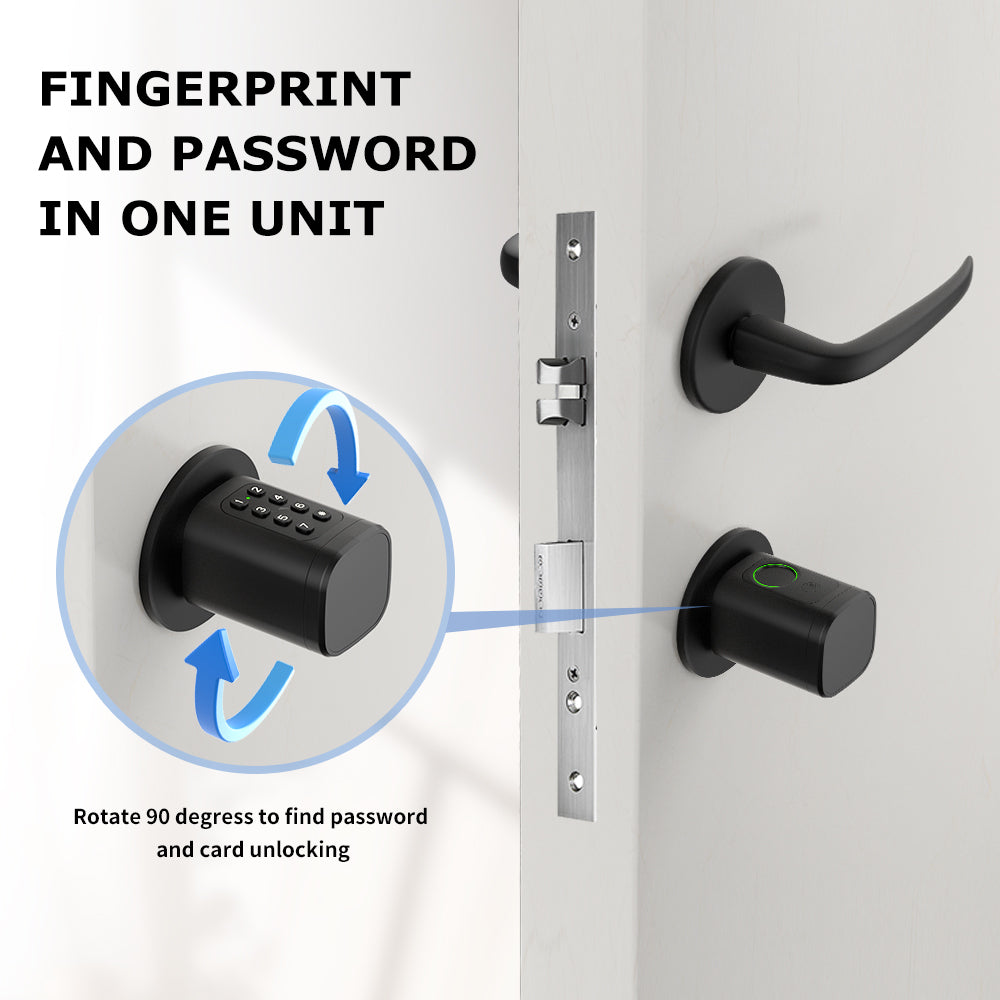

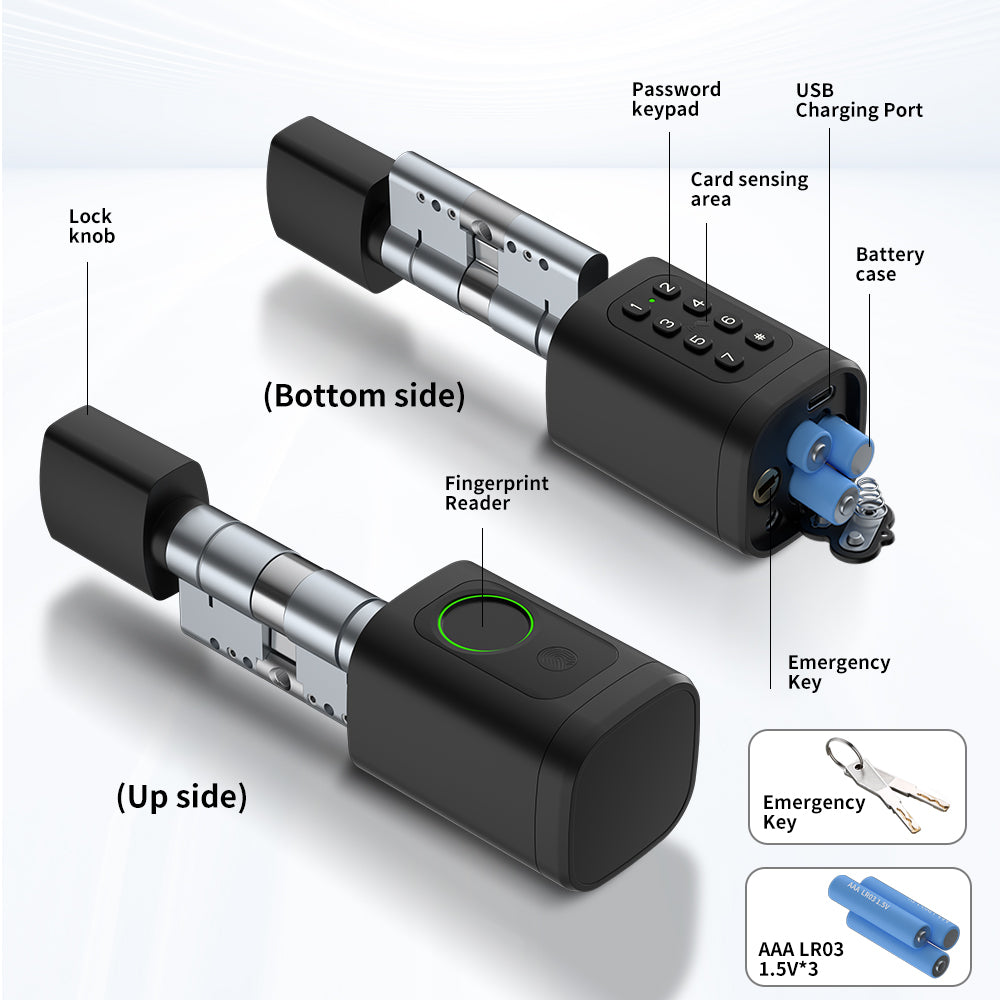

Fingerprint reader on one side and Keypad & Card reader on the other side.

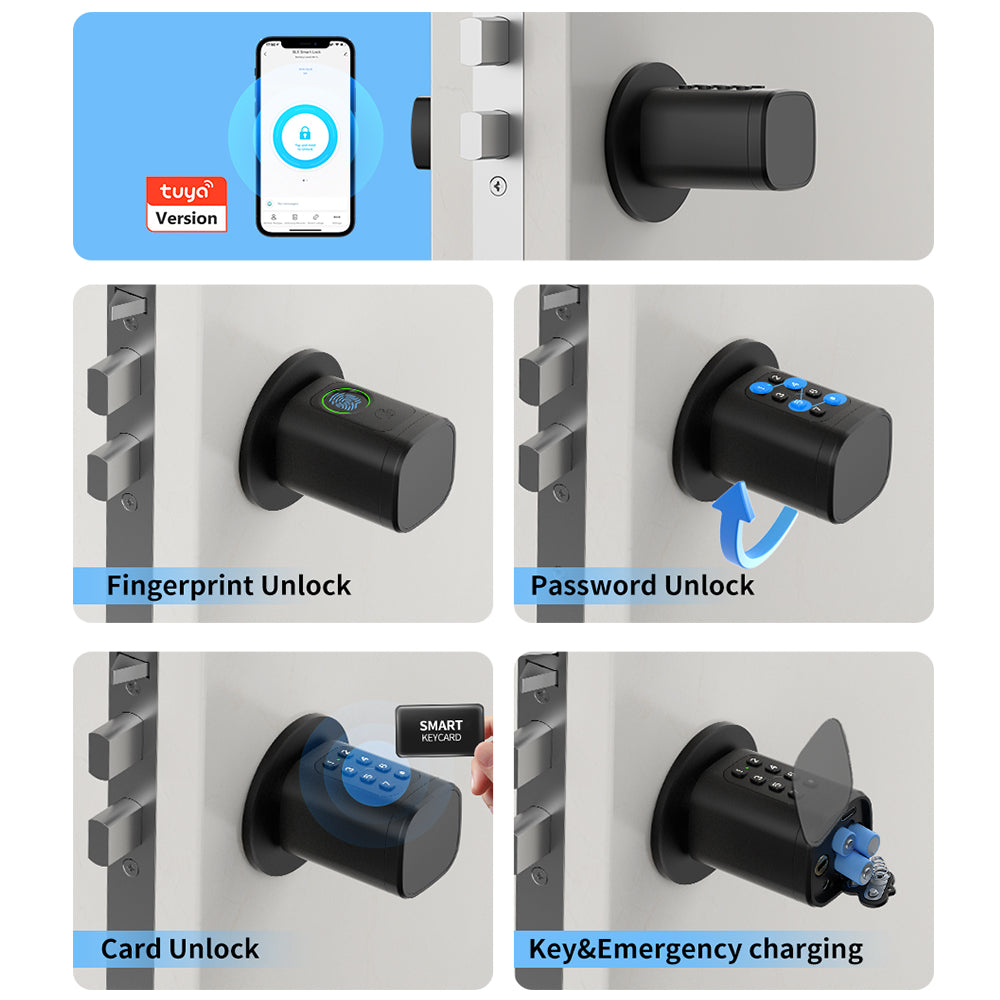

Unlock by Fingerprint, Keypad, Card, Key, or App.

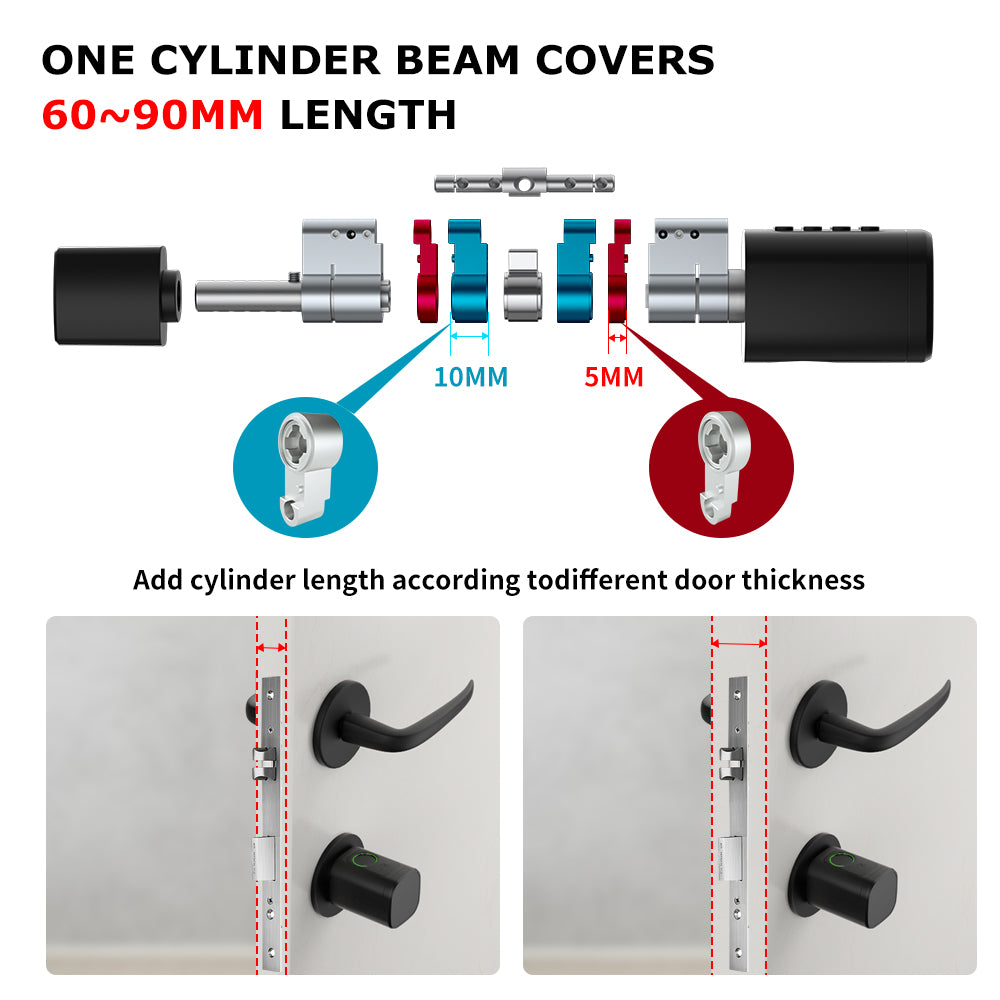

Adjustable Cylinder length from 60mm - 90mm. 60mm Standard with increases in 5mm increments using the included Extension Pieces.

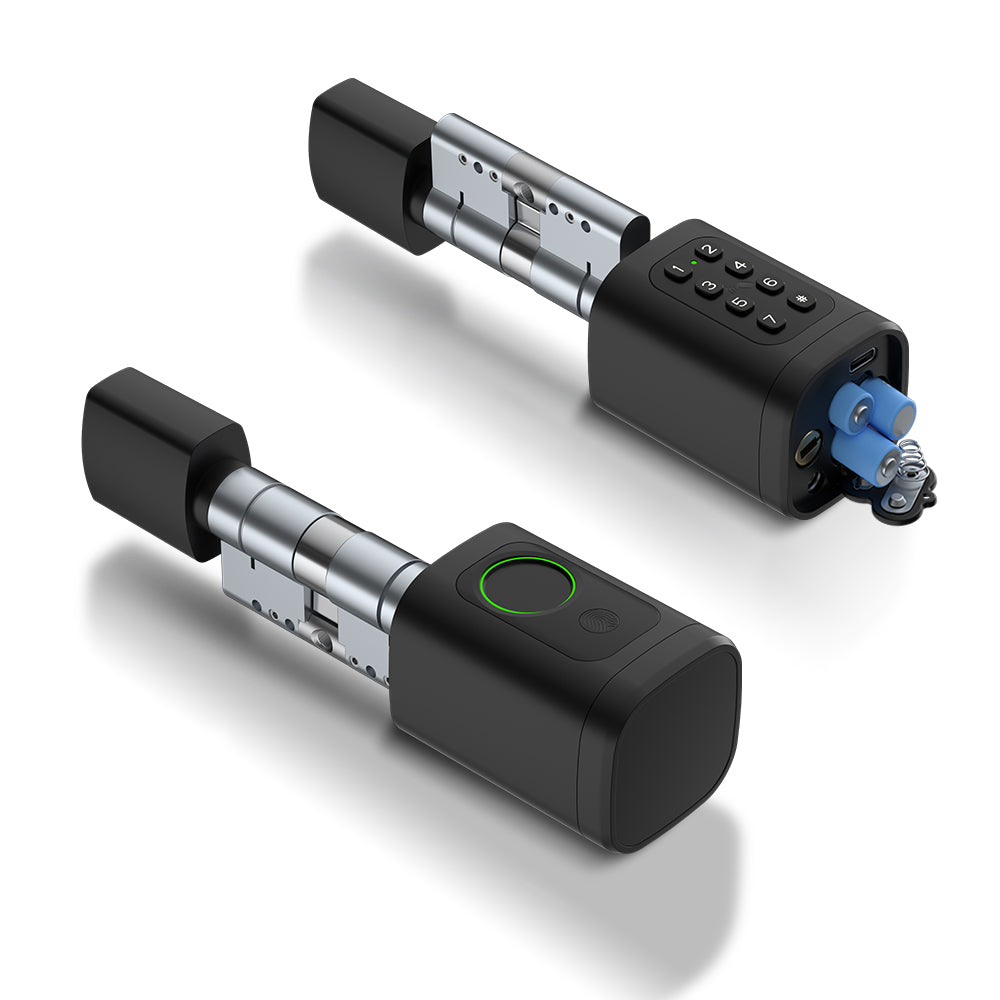

Emergency Manual Key / USB C slot to plug in 5V Power Bank in case the battery dies off completely. The app will send you a notification before the batteries completely die provided you are in Bluetooth Range or connected to the WiFi Gateway.

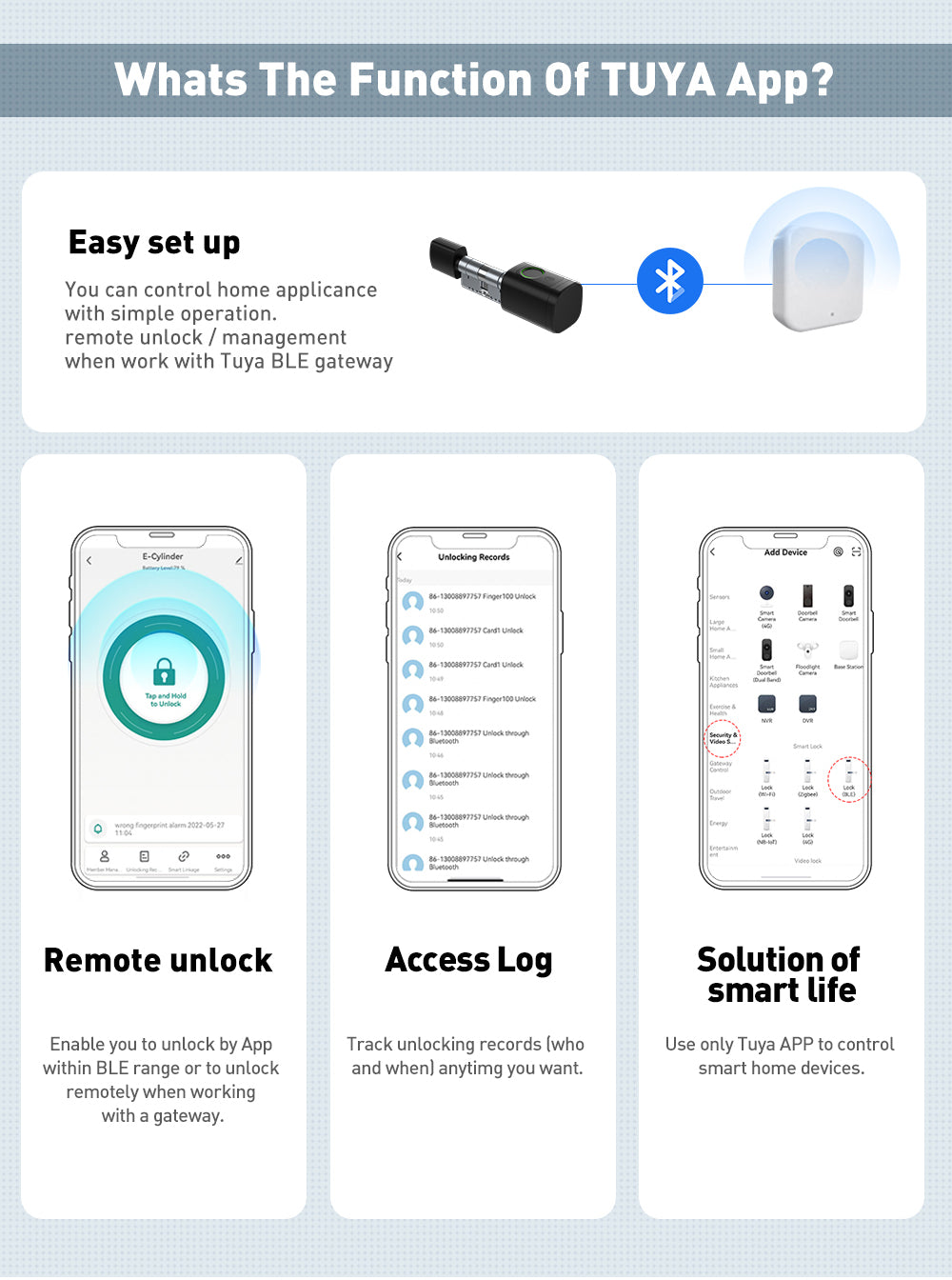

In-App Features;

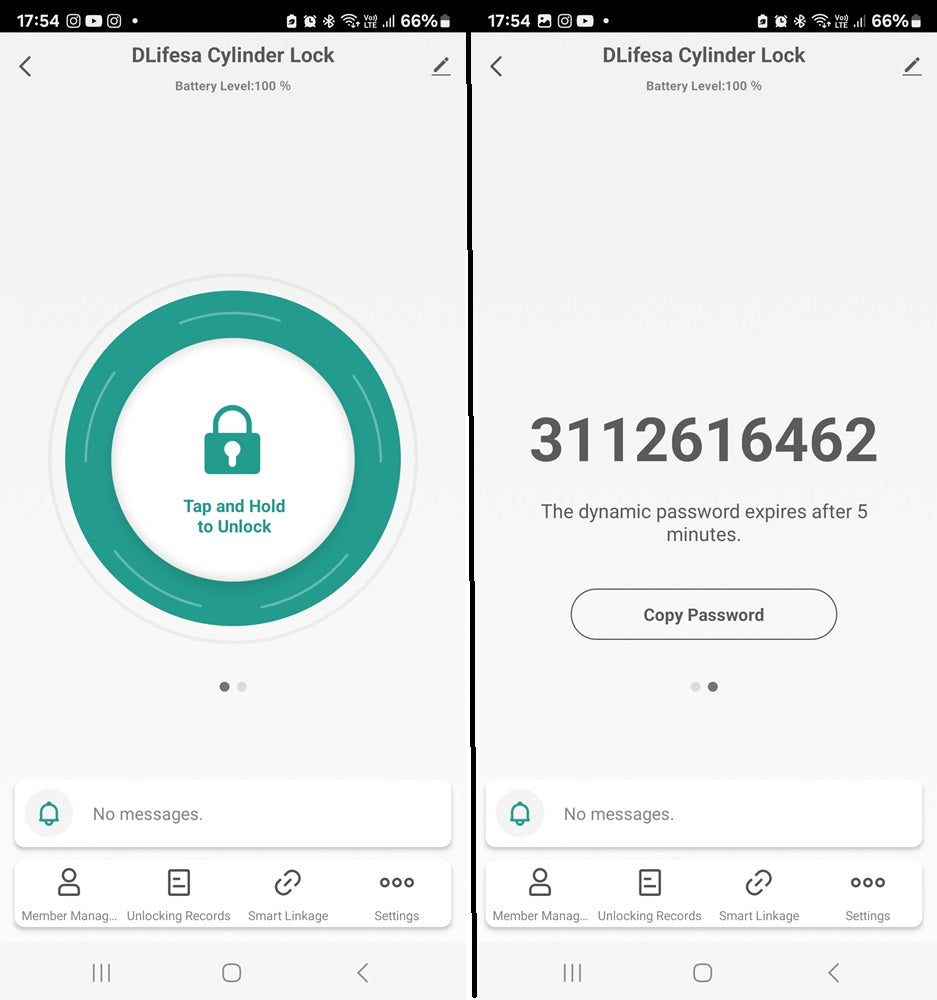

Tap and Hold to Unlock

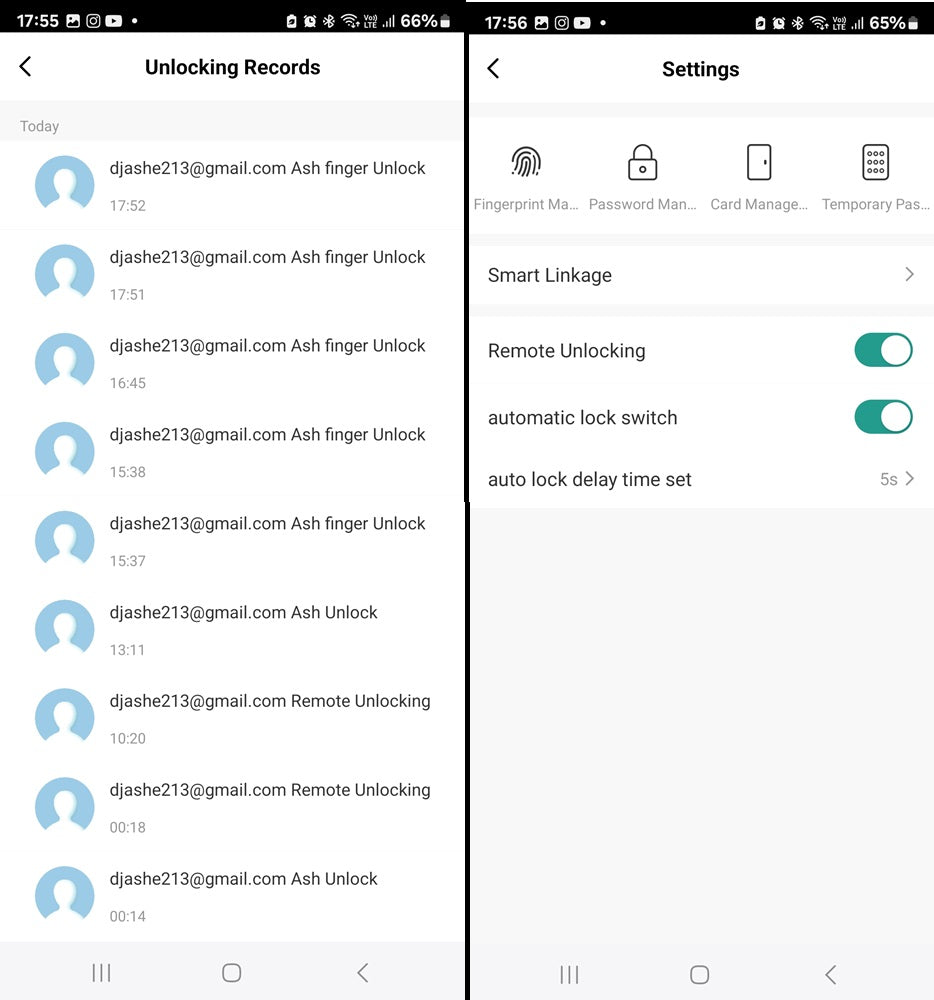

Member Management | Unlocking Records.
Settings:

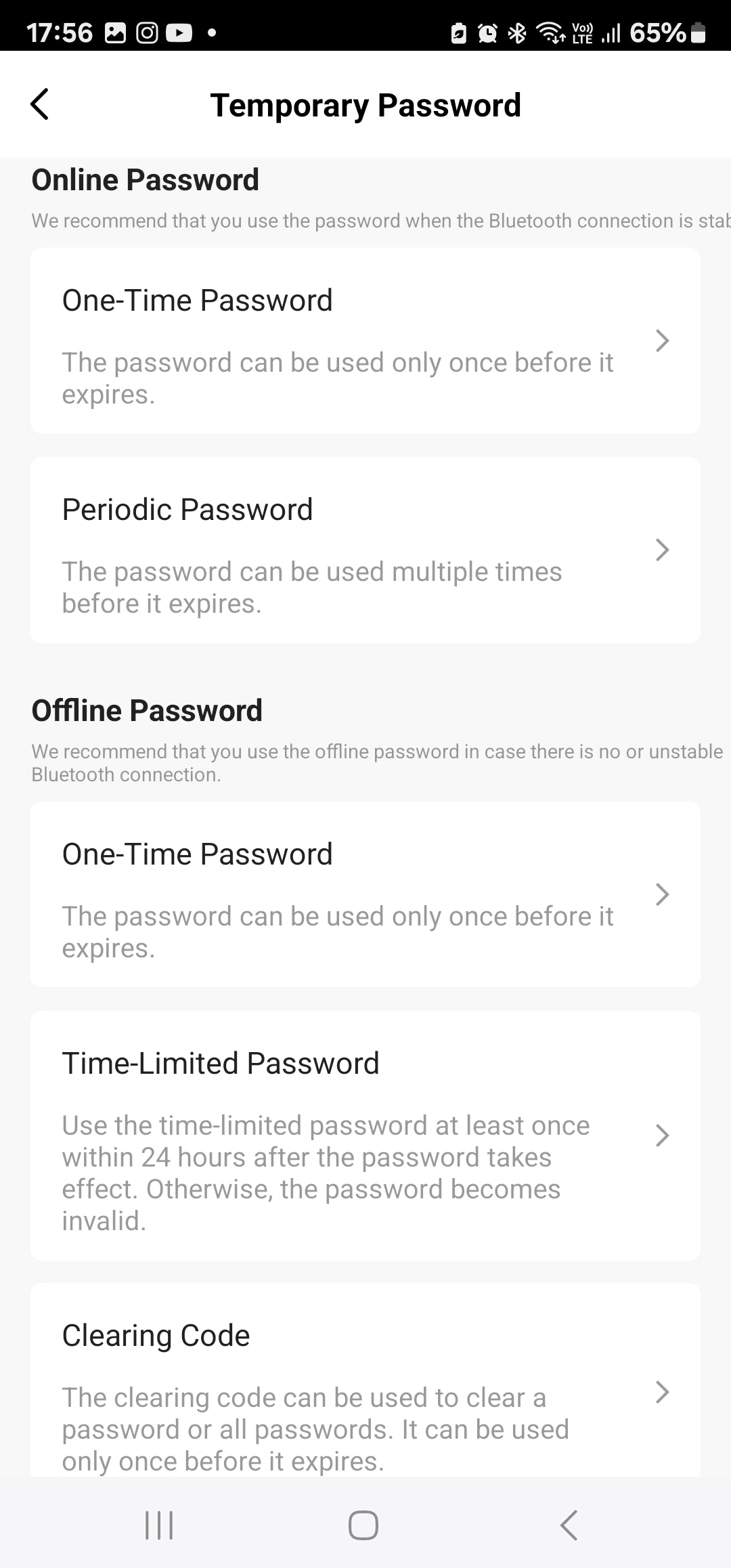

Fingerprint Management | Password Management | Card Management | Temporary Password.
Smart Linkage | Remote Unlocking | Automatic lock Switch | Auto Lock delay time set.

Specifications;
Electrical Voltage: DC 4.5V (3 x AAA Alkaline Batteries included)

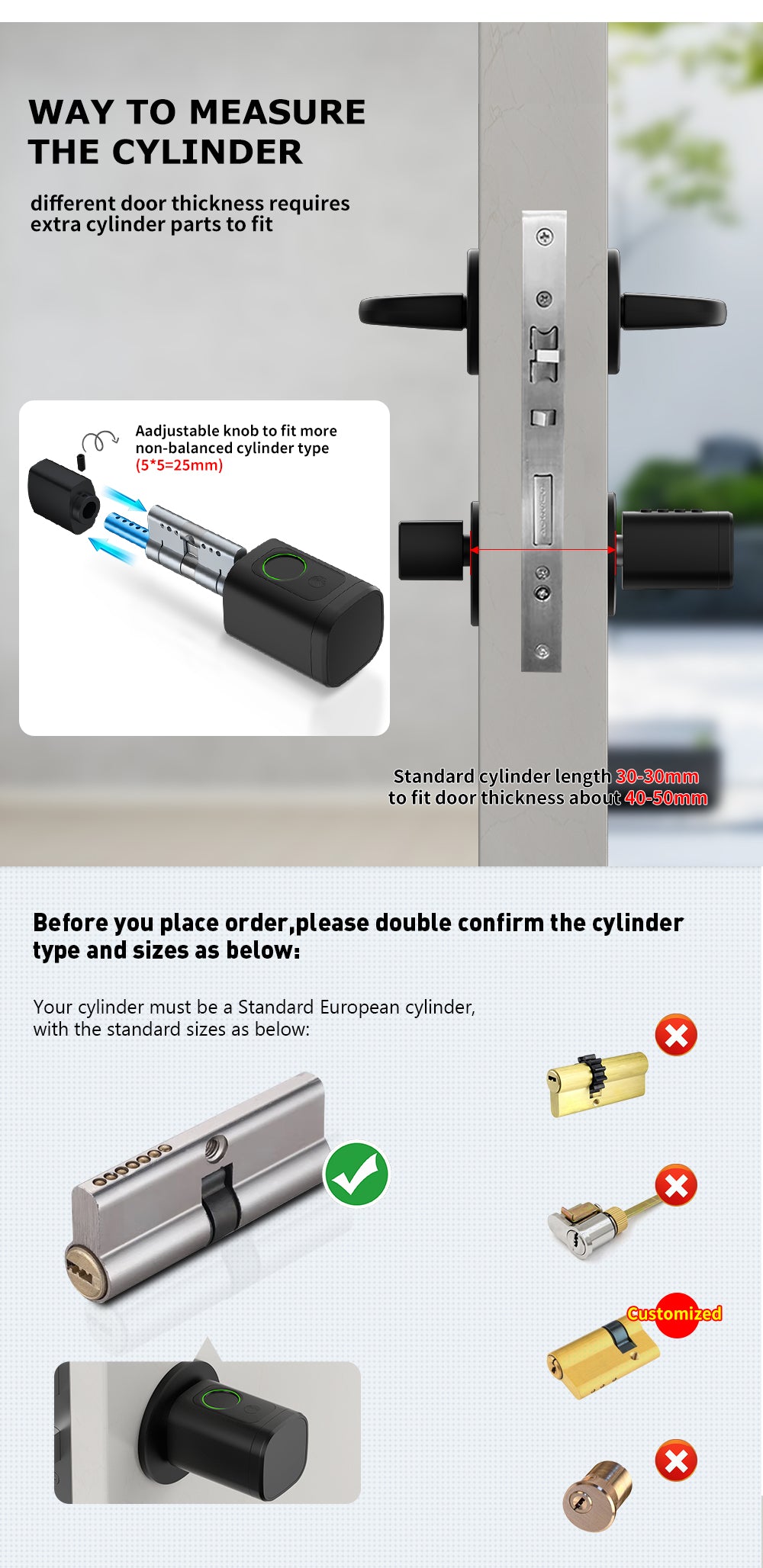

For Door thickness Between 40-90mm. Fits Wooden doors, Aluminium Doors, or Customs Doors with Cylinder Locks. The Cylinder Standard Length is 60mm and can be adjusted with the included Cylinder extension pieces. Please let us know the door Thickness you require and we can adjust it before shipping it out.

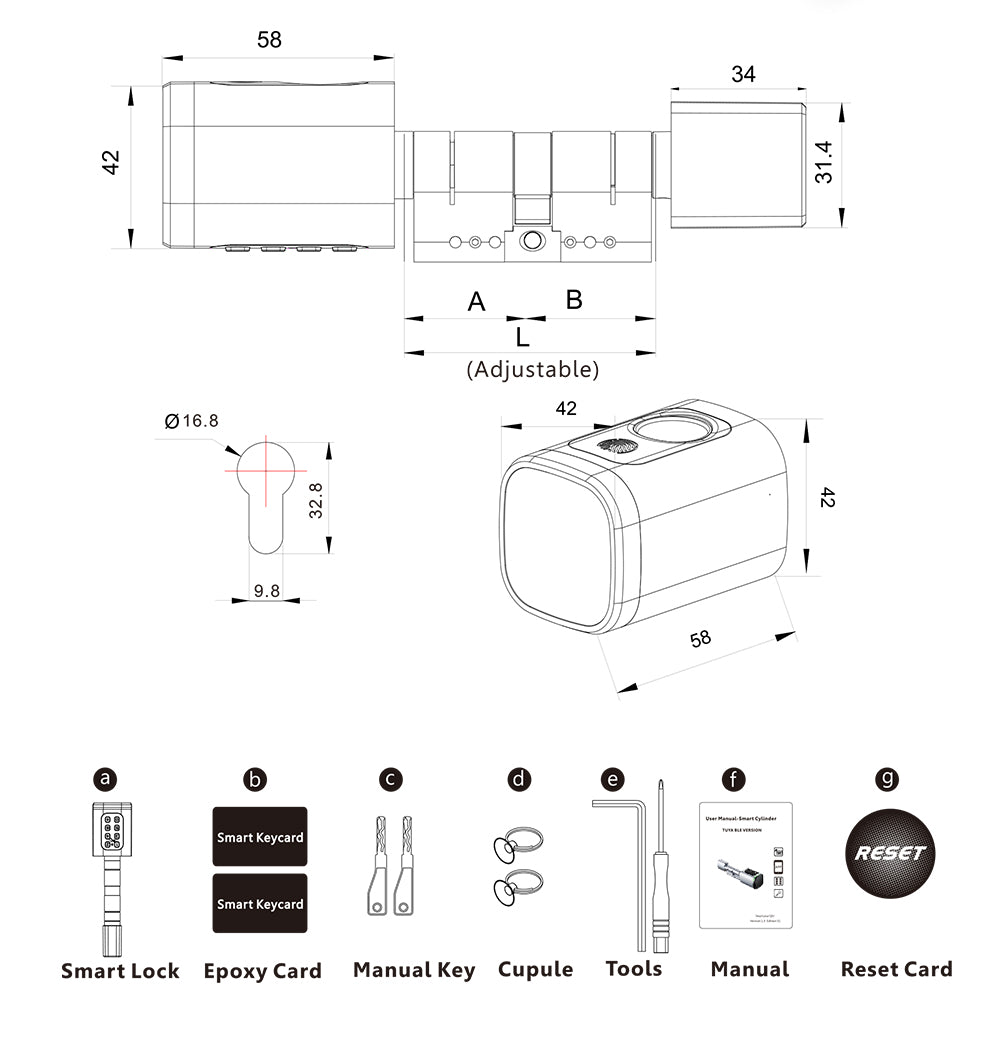

Only compatible with Key Cylinder Dimensions; ⌀17mm (Diameter), 33mm Length, 10mm Width.
Please note that to Lock, you need to Unlock via Fingerprint/ Keypad/ Card/ App first then turn the handle to Lock your Door. From the Inside Handle, you can Lock or Unlock freely.
Once Fingerprints, Pin Codes & Cards are set up from the app and synced through to the lock then data is saved internally on the Handle.
Wireless Frequency: Bluetooth Only.
Material: Aluminium, Zinc, Copper Alloy | Stainless Steel | Acrylic.
Color: Black | Silver Cylinder.

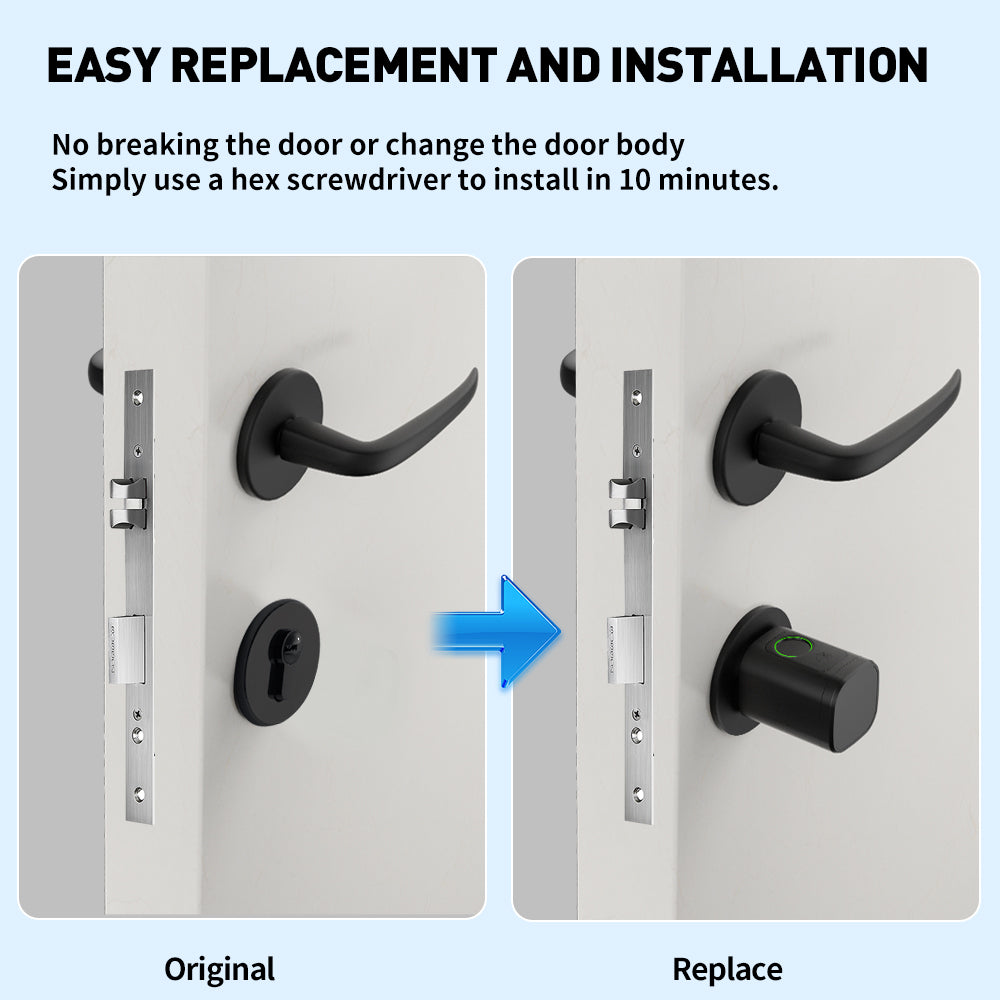

Installation: Indoor / Outdoor. Just pull out the existing Key Cylinder and slot in the Smart one. The product is IP55 (Dust protected & Water jets/ Rainproof).
Dimensions: Box 255 x 104 x 74mm
Weight: 645g.

What's in the Package;
1 x Tuya Bluetooth Access Control Fingerprint Keypad Card Key Cylinder Door Lock (Black).
1 x Back Handle Knob.
3 x AAA 1.5V Alkaline Batteries.
4 x Cylinder extension pieces (2 x 10mm & 2 x 5mm).
2 x IC Cards.
1 x Reset Card.
2 x Keys.
1 x Set of Screws.
1 x Screwdriver.
1 x Allen Key.
2 x Suction Cup.
1 x User Manual.

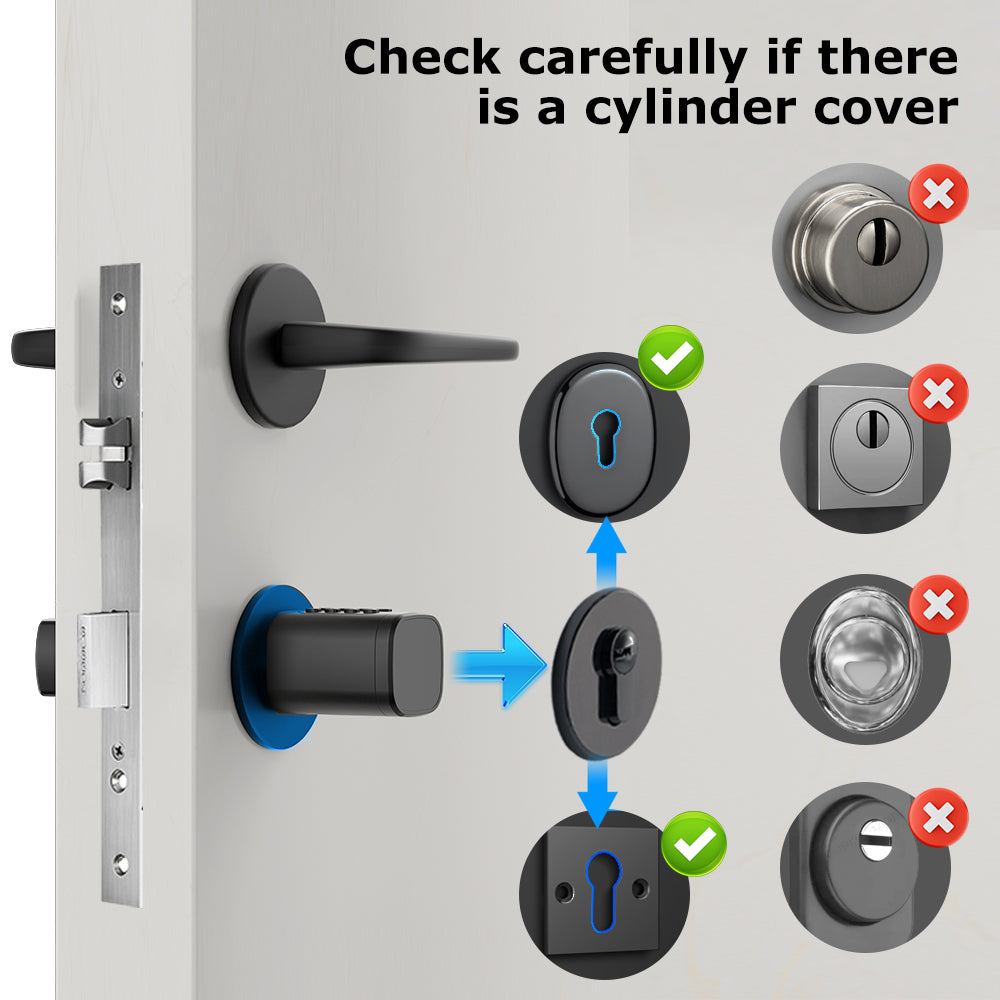

This set is only the Handle part with Cylinder Only. Does not include a mortise Lock Body or Keyhole Cover plate.

Please note that this Device only Supports Bluetooth Connection to the Tuya or Smart Life App. It cannot connect to the internet and perform automation unless the Mobile Phone that it is connected to Bluetooth to is in the Bluetooth range. If you need to connect to Wifi to remotely monitor or Unlock then a separate Tuya Smart Life Bluetooth to WiFi Gateway needs to be Purchased and to be linked to the device.
