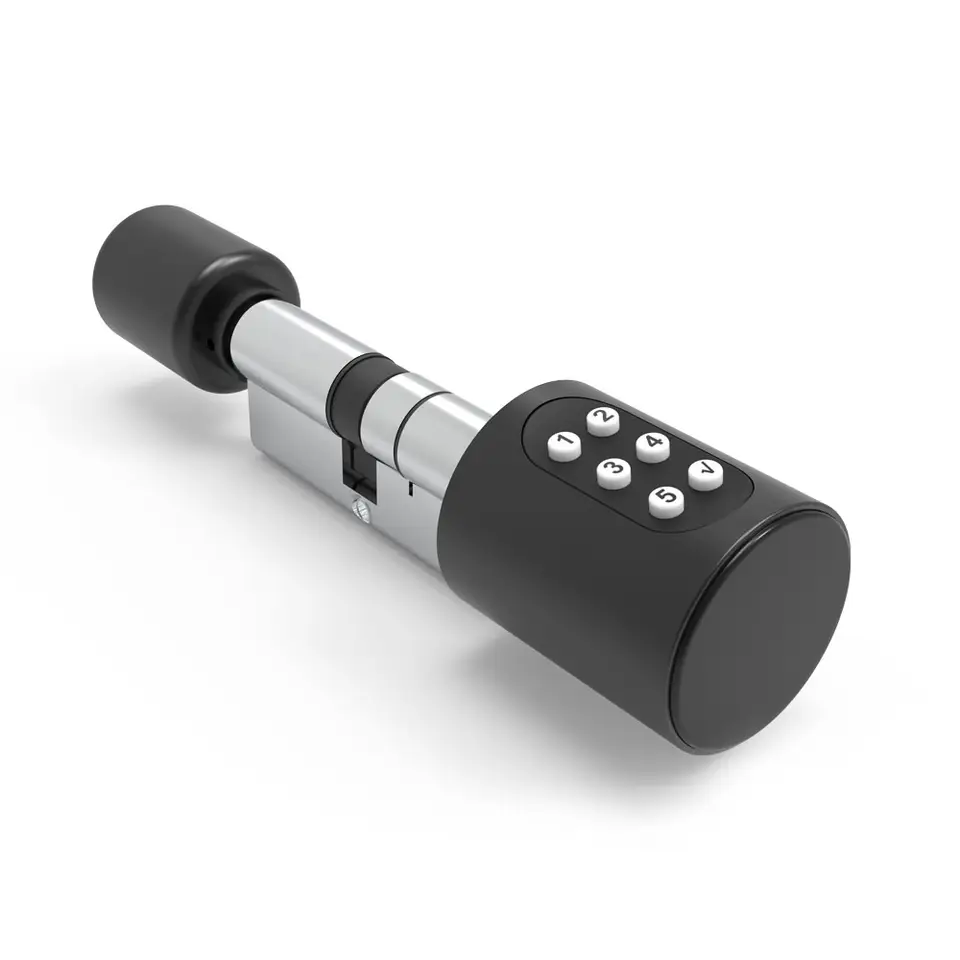

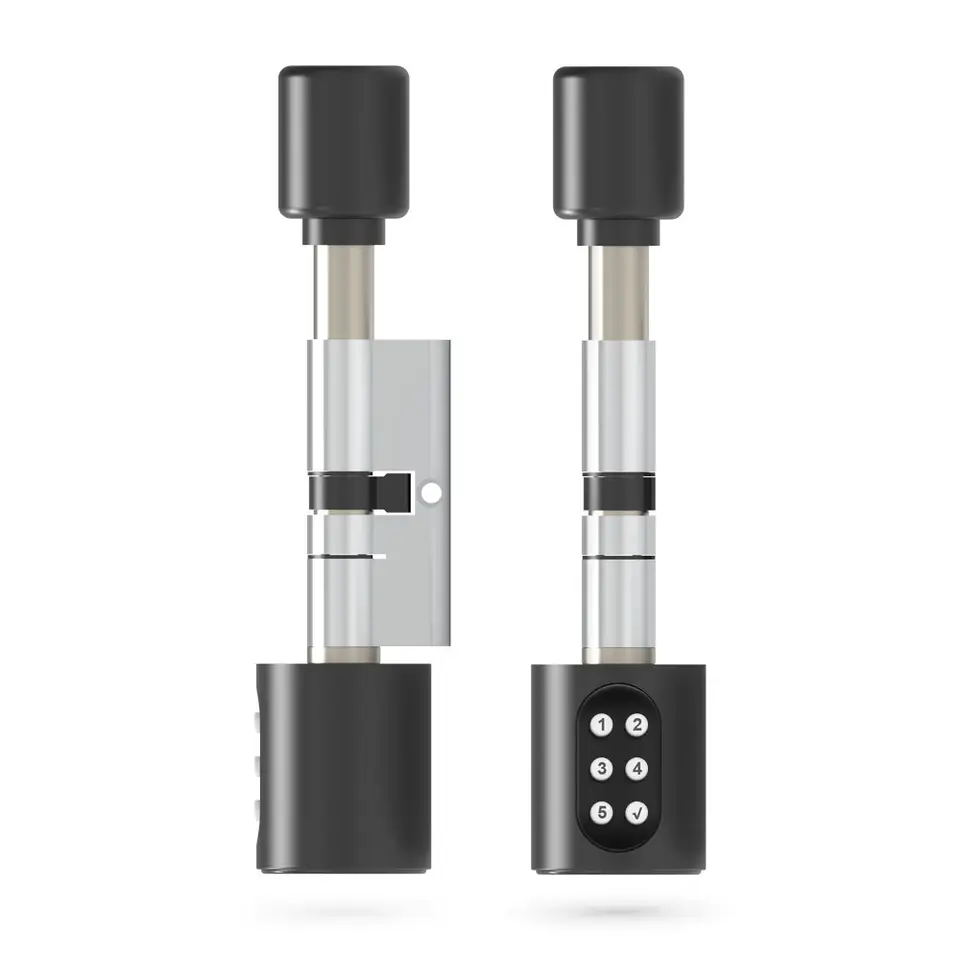

Smart Life Tuya Bluetooth Access Control Keypad Card Smart Key Cylinder Door Lock (Black)

Welcome to Smart Home Automation.

Our Smart Door Handle is the perfect access control for opening your Doors via Keypad, Card, or Mobile smartphones via the Tuya/ Smart Life App from Bluetooth range or from anywhere in the world with the additional purchase of our Bluetooth to Wi-Fi Gateway. Suitable for Homes, Apartments, Houses, Guest Lodges, Bed and Breakfast accommodations, Airbnb, Shops, Farms, Businesses, etc.

All you need is Our Smart Home Devices, Wi-Fi with constant Internet, and Electricity to power the Device. Some of Our Devices are Battery Powered so you don't have to worry about messy cables or the need to run cables.

Features;
Supports up to 50 users Max including up to 50 Passwords or Cards.
Unlock by Password, Card, Key, or App.
Click Button keypad (Numbers 1 to 5 and Enter) with LED backlighting.

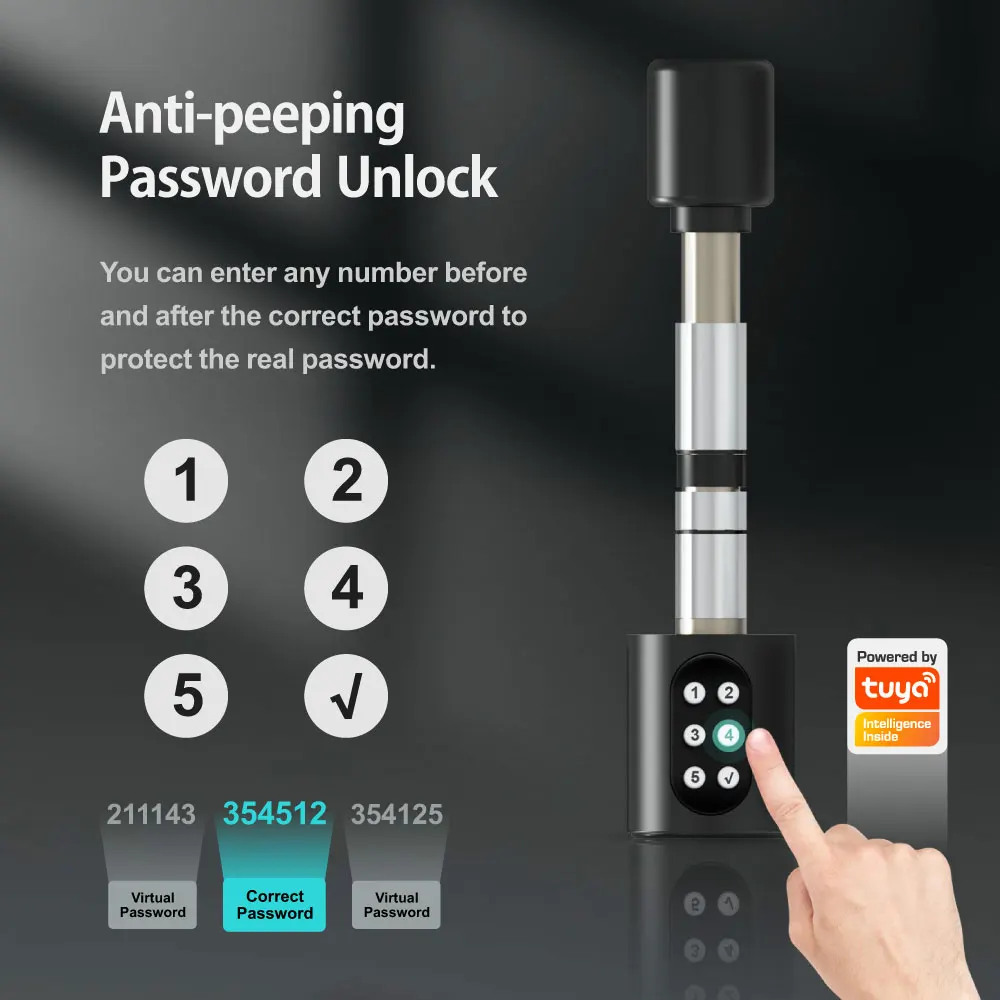

Password Peeping Prevention function allows you to input a random number then your password then random numbers and once you press the # key then it will register the correct password for example; XXXX CorrectPassword XXXX (X being Random Numbers) Max 12 Digits.
Emergency Manual Key in case the battery dies off completely. The app will send you a notification before the batteries completely die provided you are in Bluetooth Range.

In-App Features;

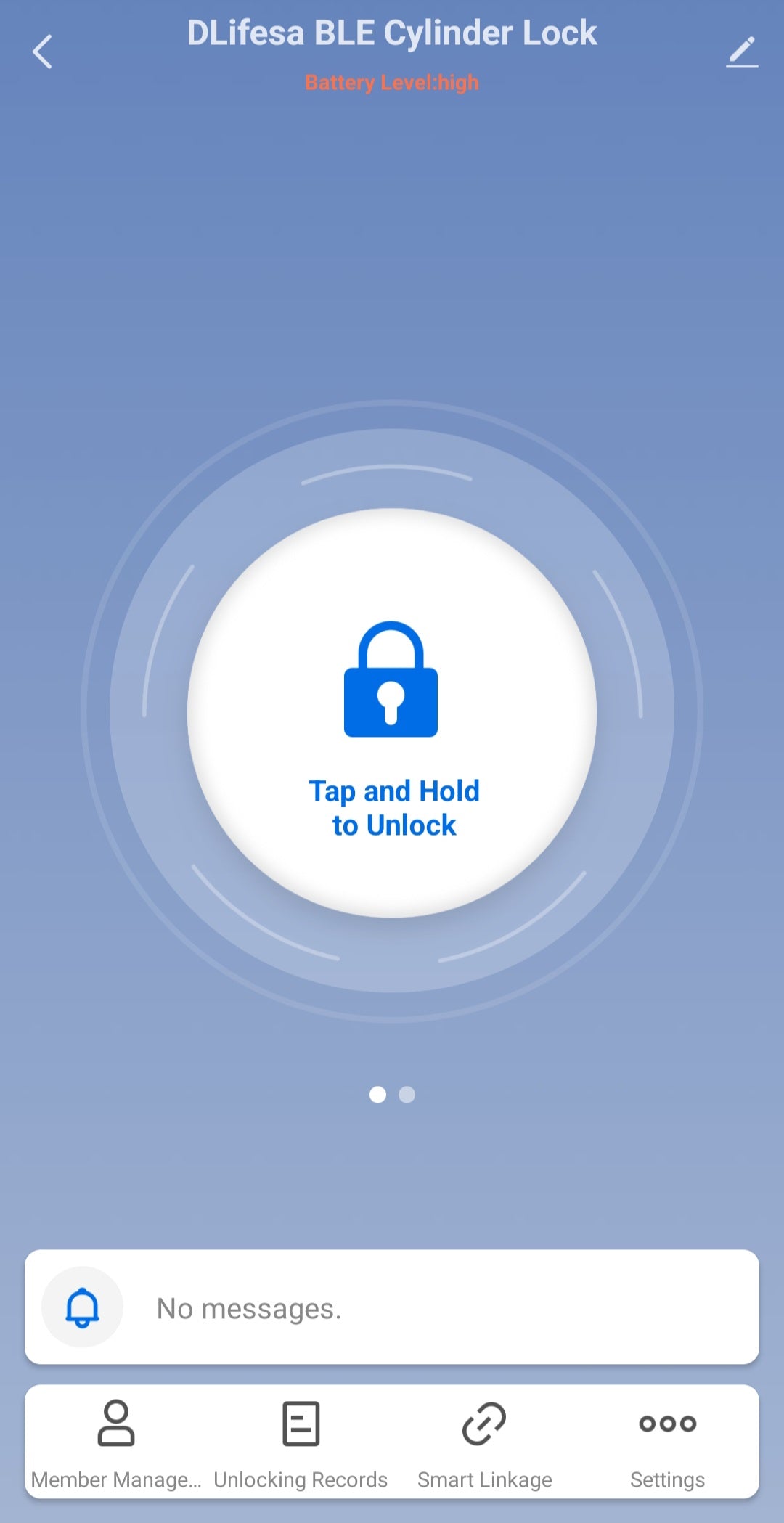

Tap and Hold to Unlock | Obtain Dynamic Password (A random 12 Digit Code that expires in 5 Minutes)

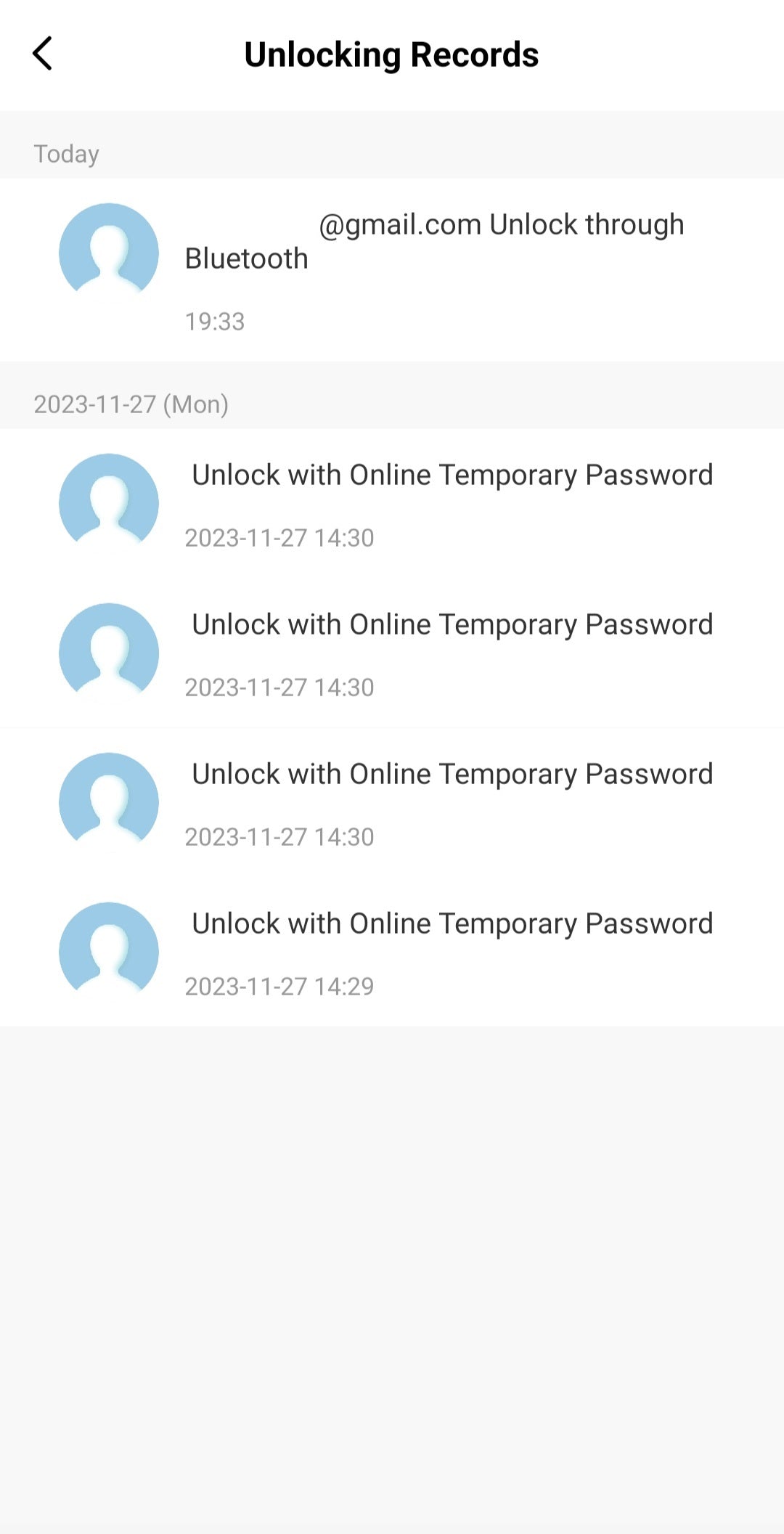

Member Management | Unlocking Records | Smart Linkage.

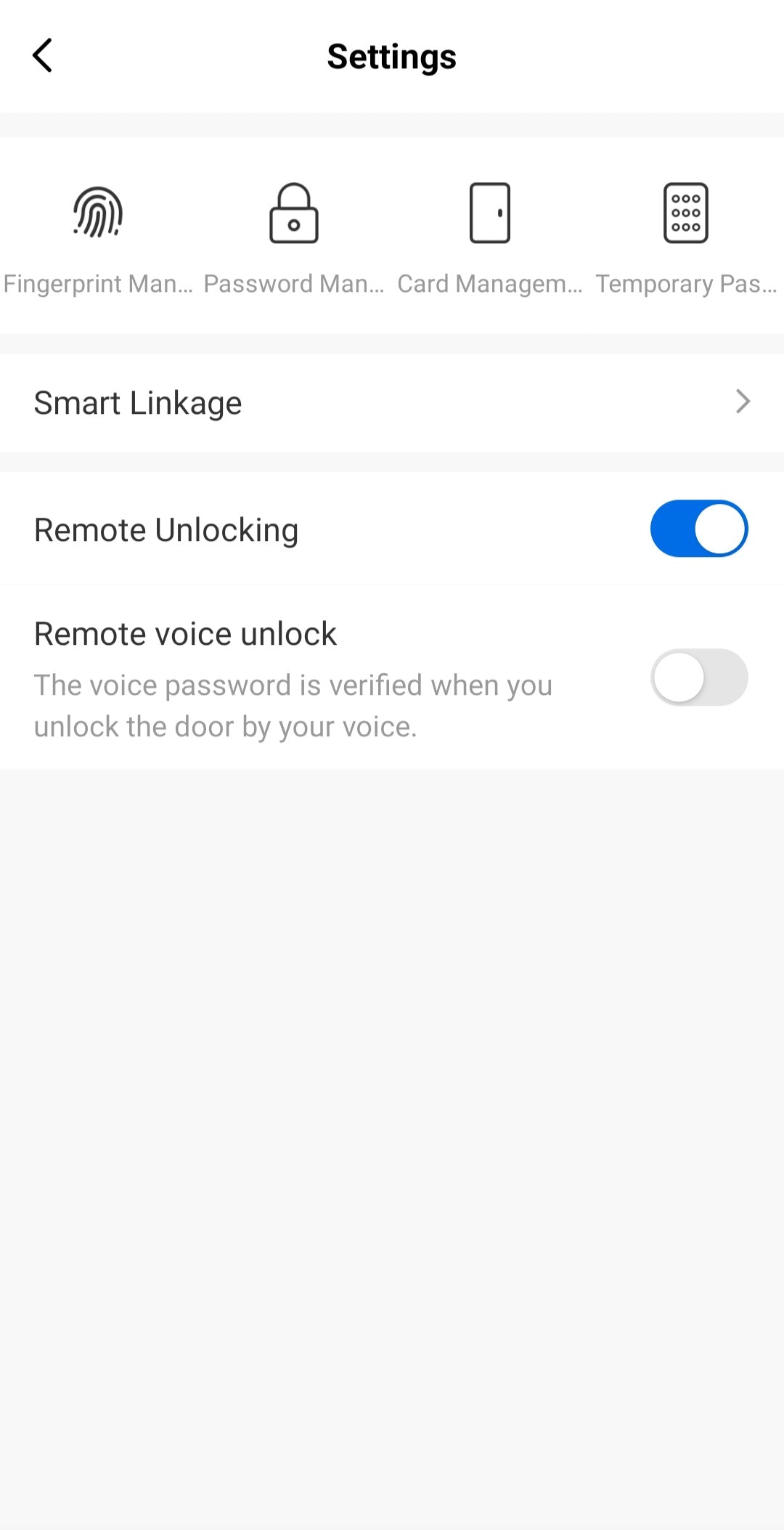

Settings:
Password Management | Card Management.

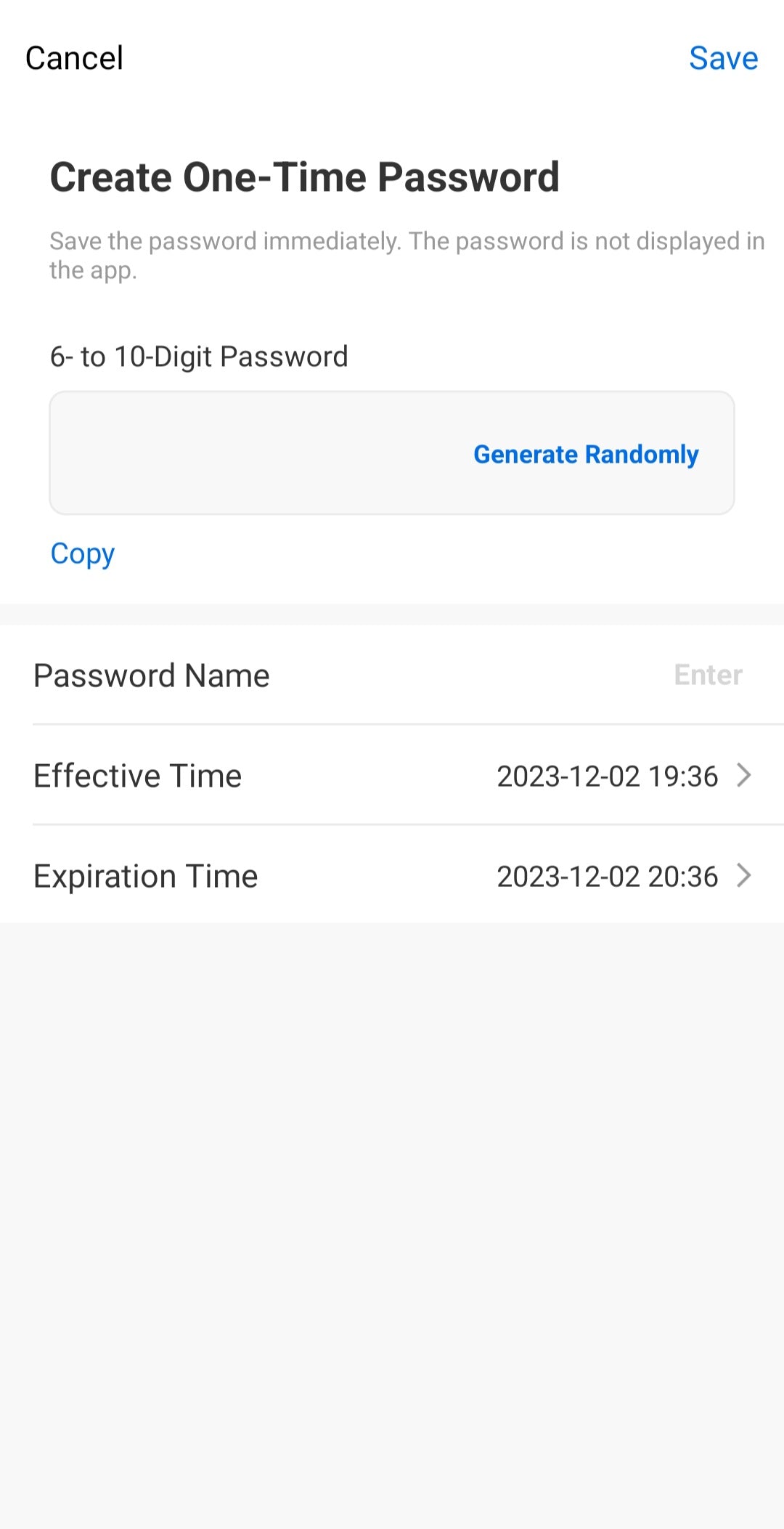

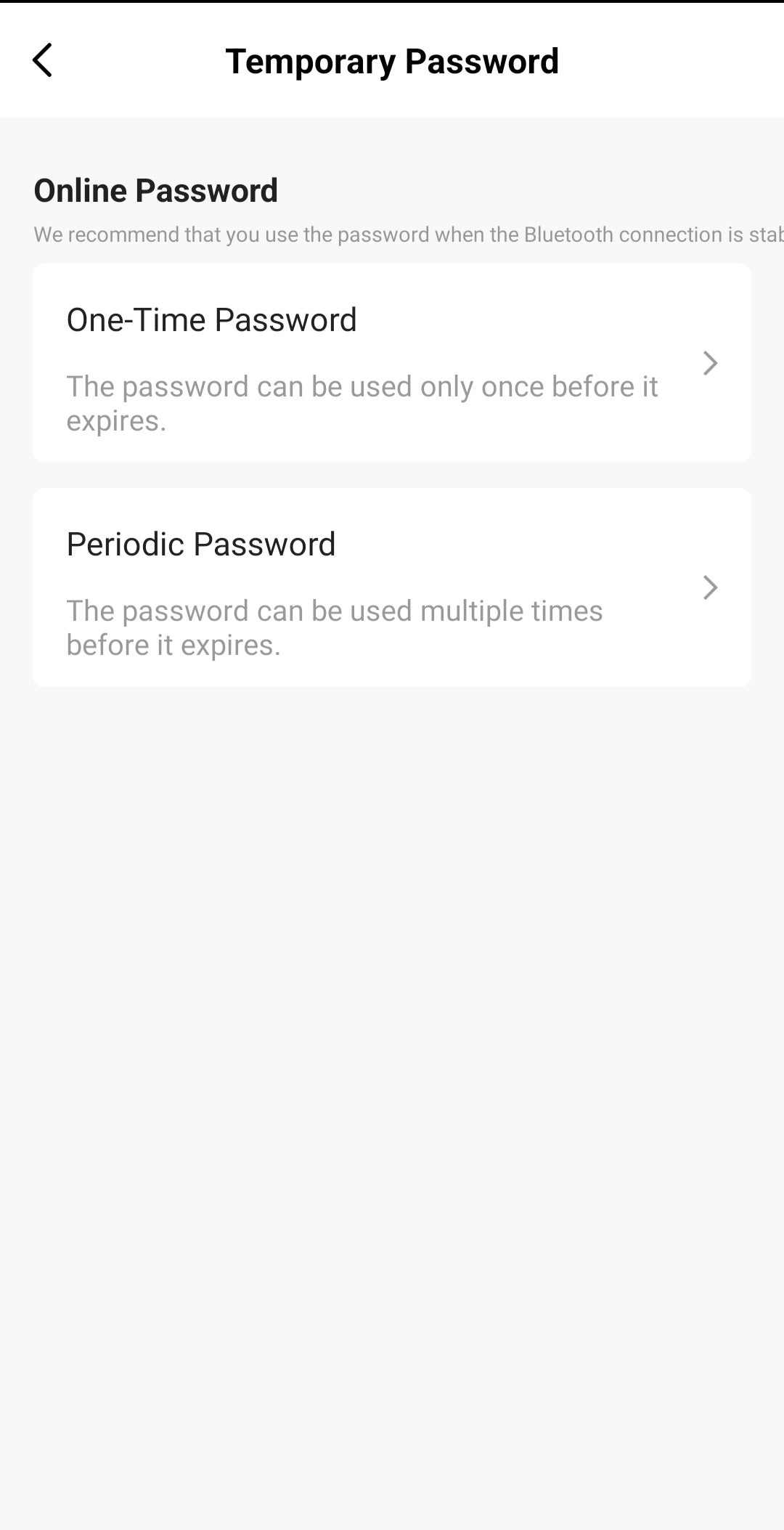

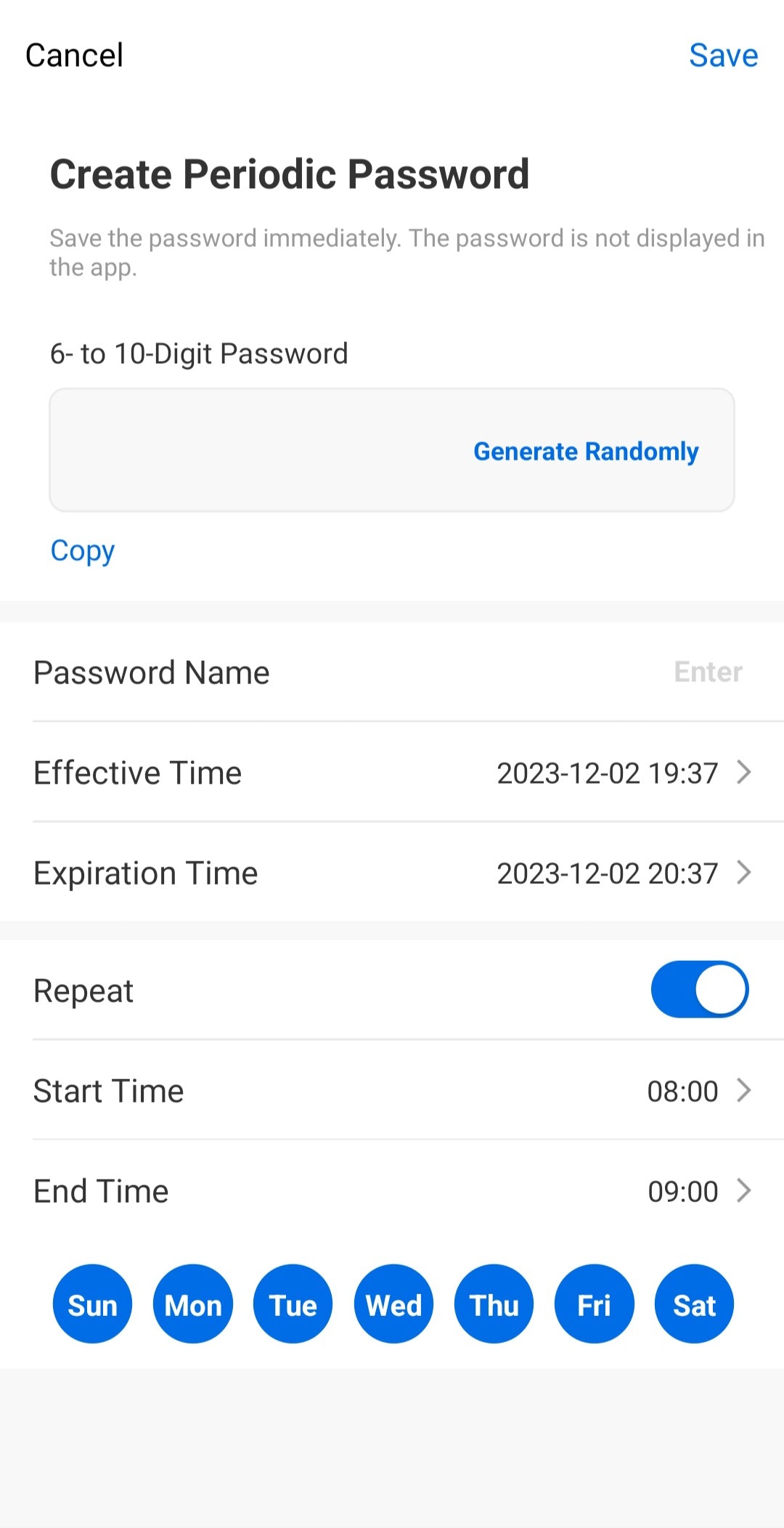

Temporary Password: Online One-Time or Periodic Password.

Specifications;

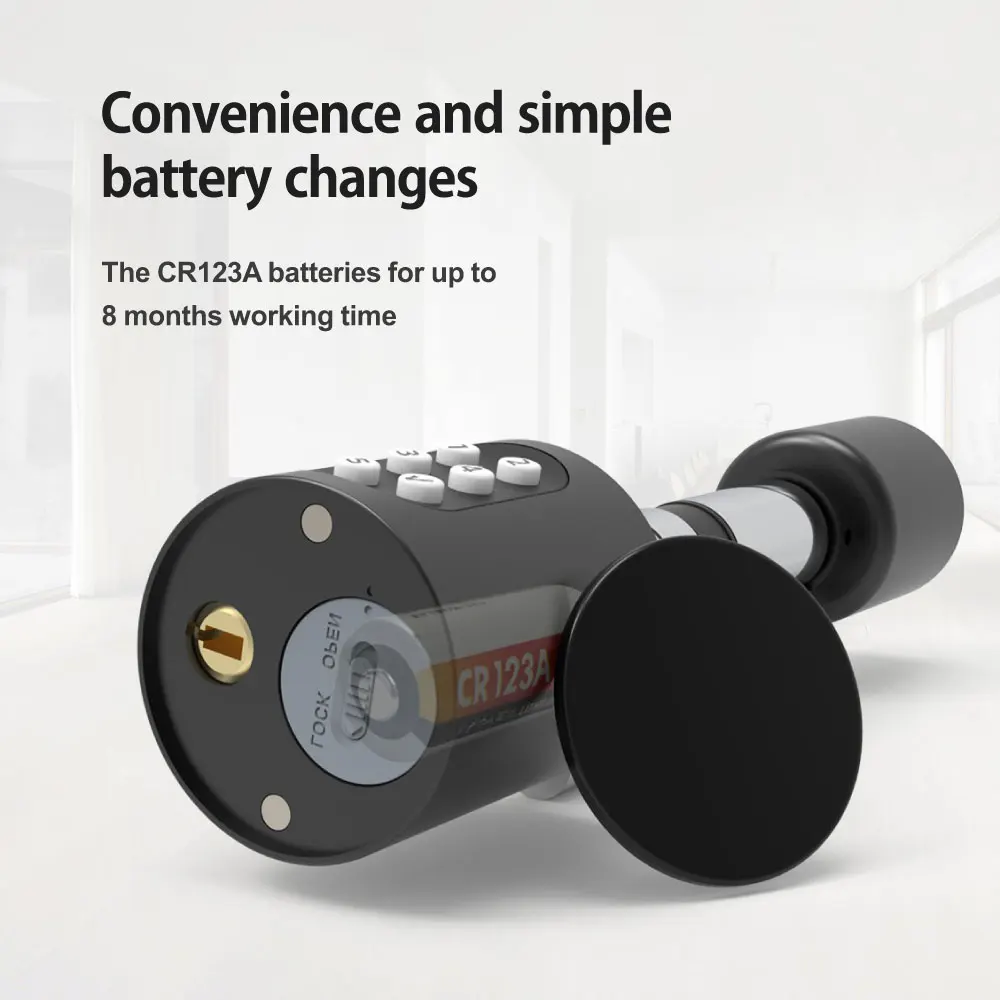

Electrical Voltage: DC 3V (1 x CR123A Battery not included)

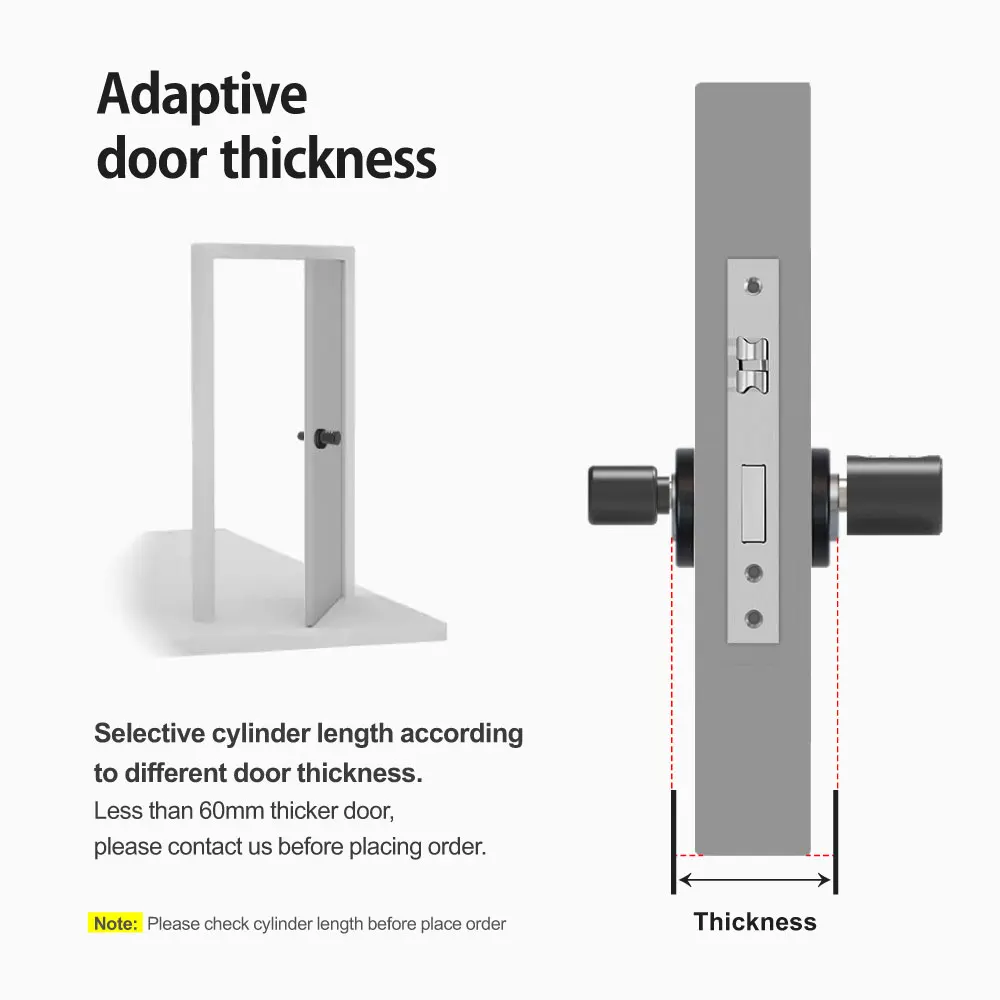

For Door thickness less than 60mm. Fits Wooden doors, Aluminium Doors, or Customs Doors with Cylinder Locks.

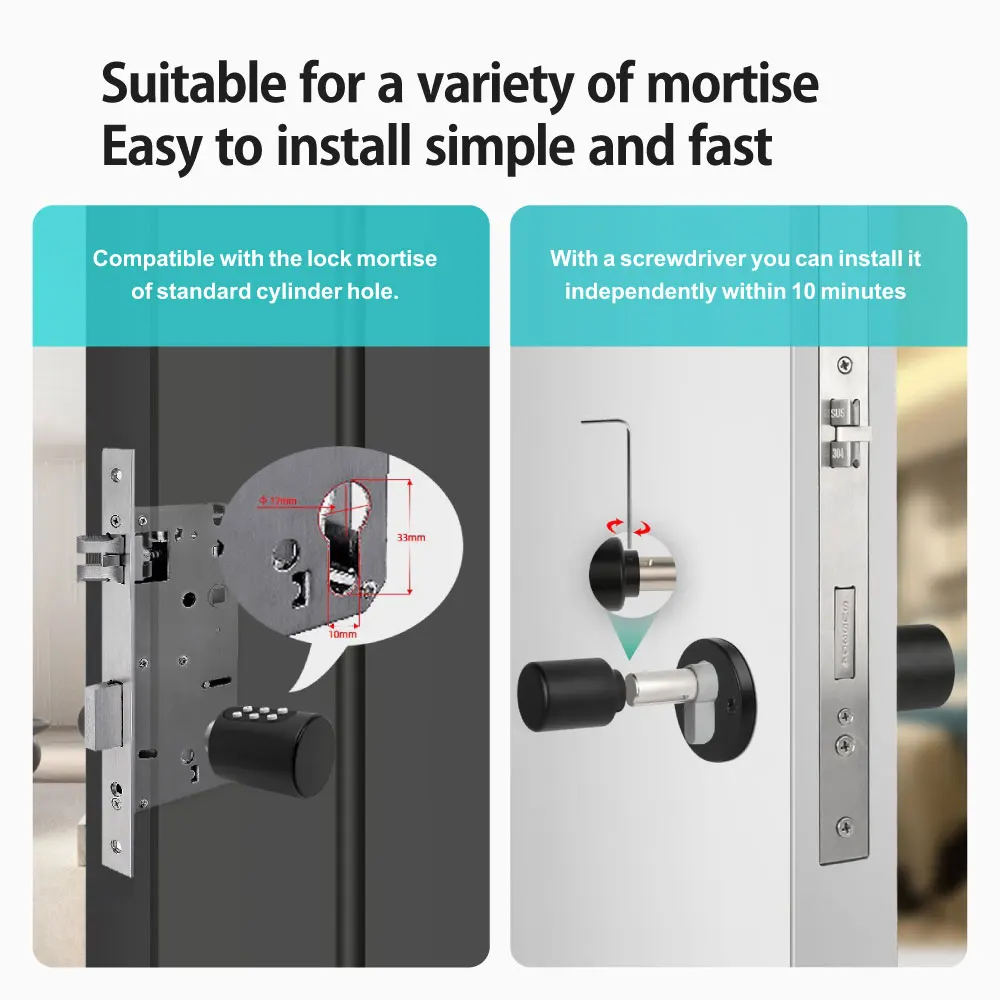

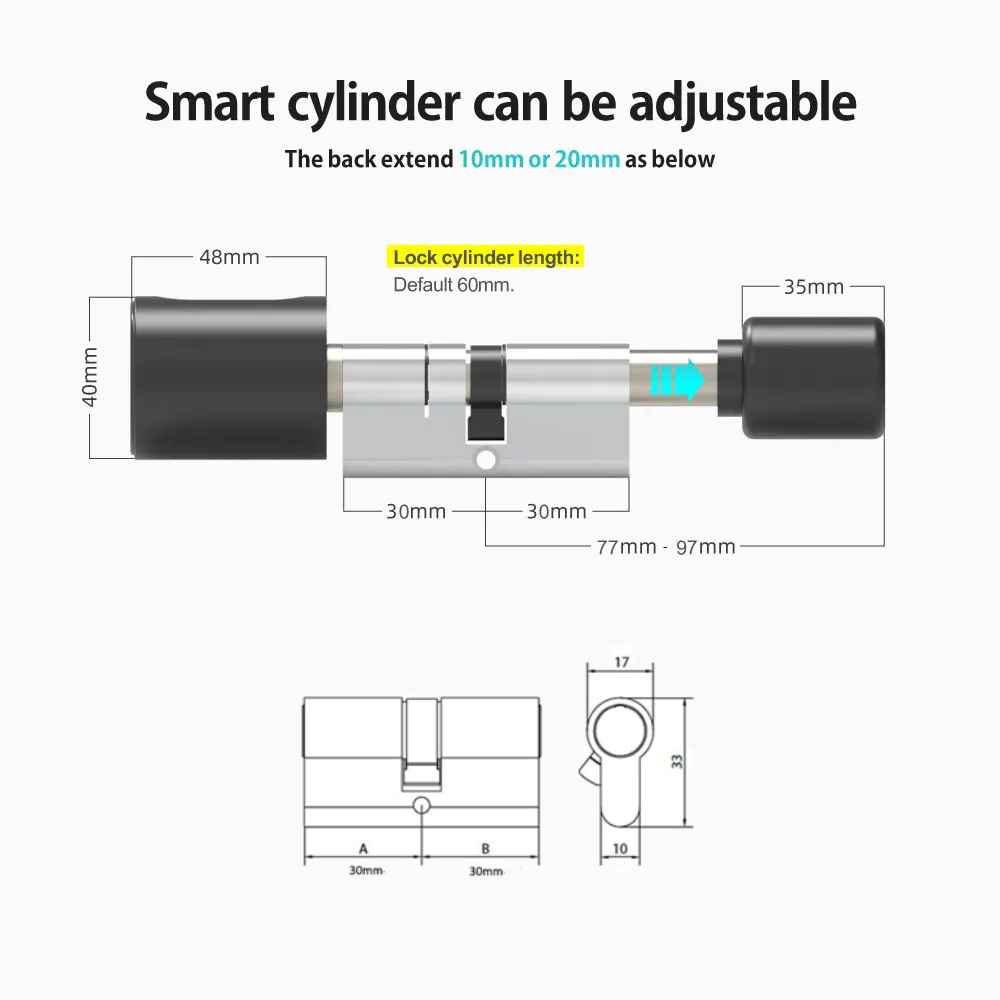

Only compatible with Key Cylinder Dimensions; ⌀17mm (Diameter), 33mm Length, 10mm Width.
Please note that to Lock, you need to Unlock via Password/ Card/ App first then turn the handle to Lock your Door. From the Inside Handle, you can open or close freely.
Wireless Frequency: Bluetooth Only.
Material: Aluminum Alloy | Brass.
Color: Black.

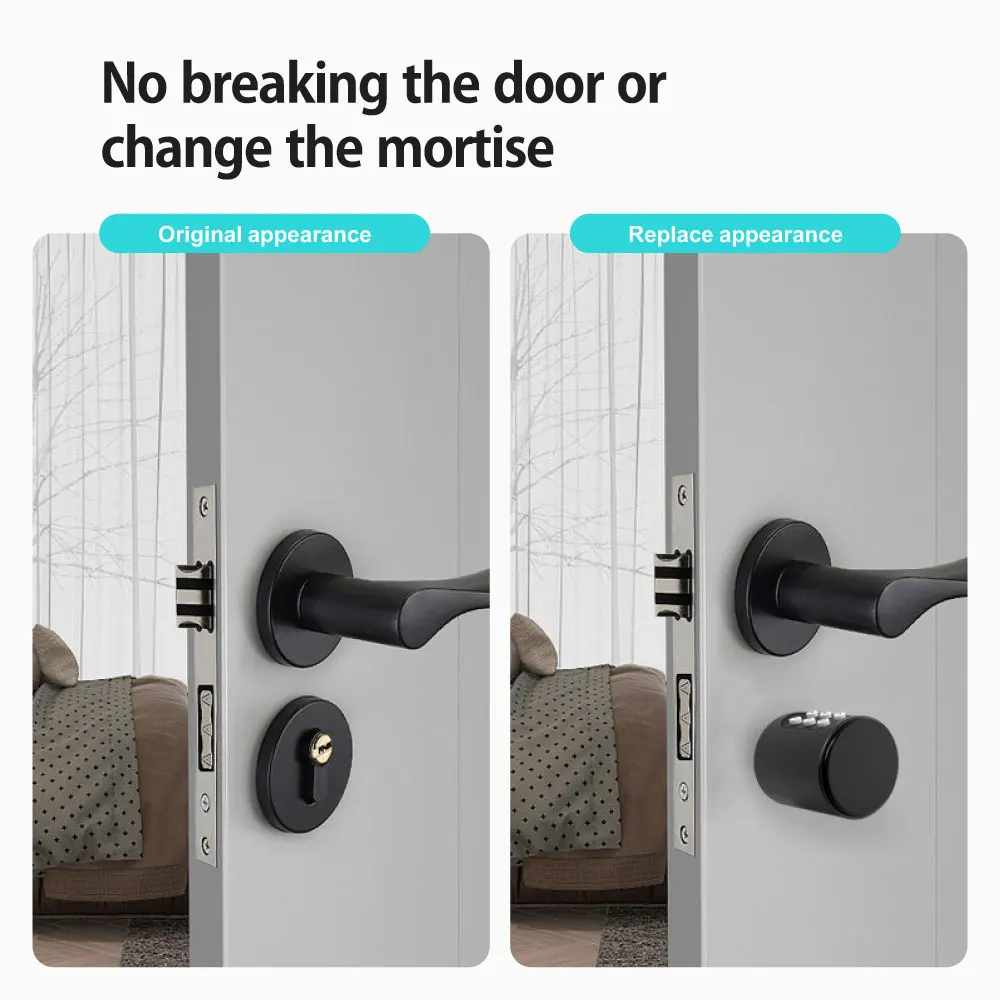

Installation: Indoor or Outdoor. Just pull out the existing Key Cylinder and slot in the Smart one. The product is Not Waterproof.
Dimensions: Box 186 x 103 x 71mm
Weight: 0.51kg.

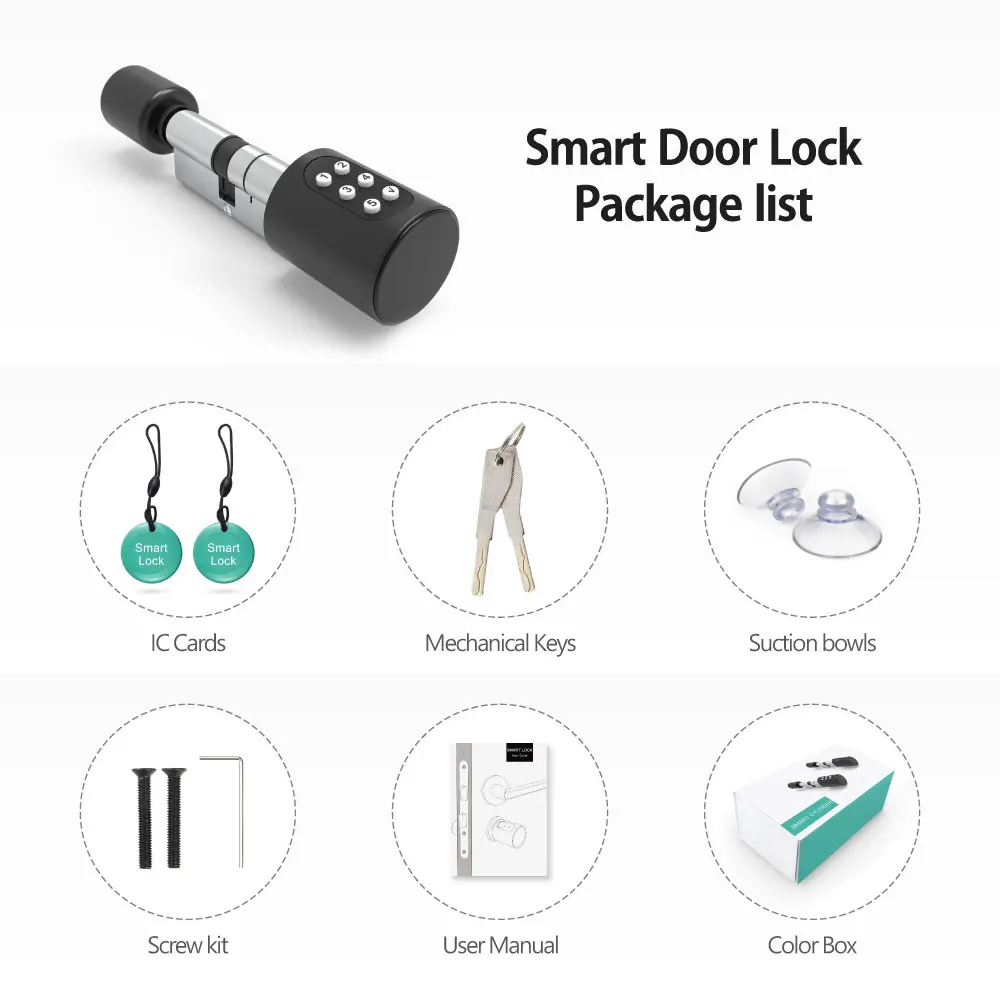

What's in the Package;
1 x Front Keypad Card Smart Key Cylinder Door Lock (Black).
1 x Back Lock Handle.
2 x IC Cards.
2 x Keys.
1 x Set of Screws.

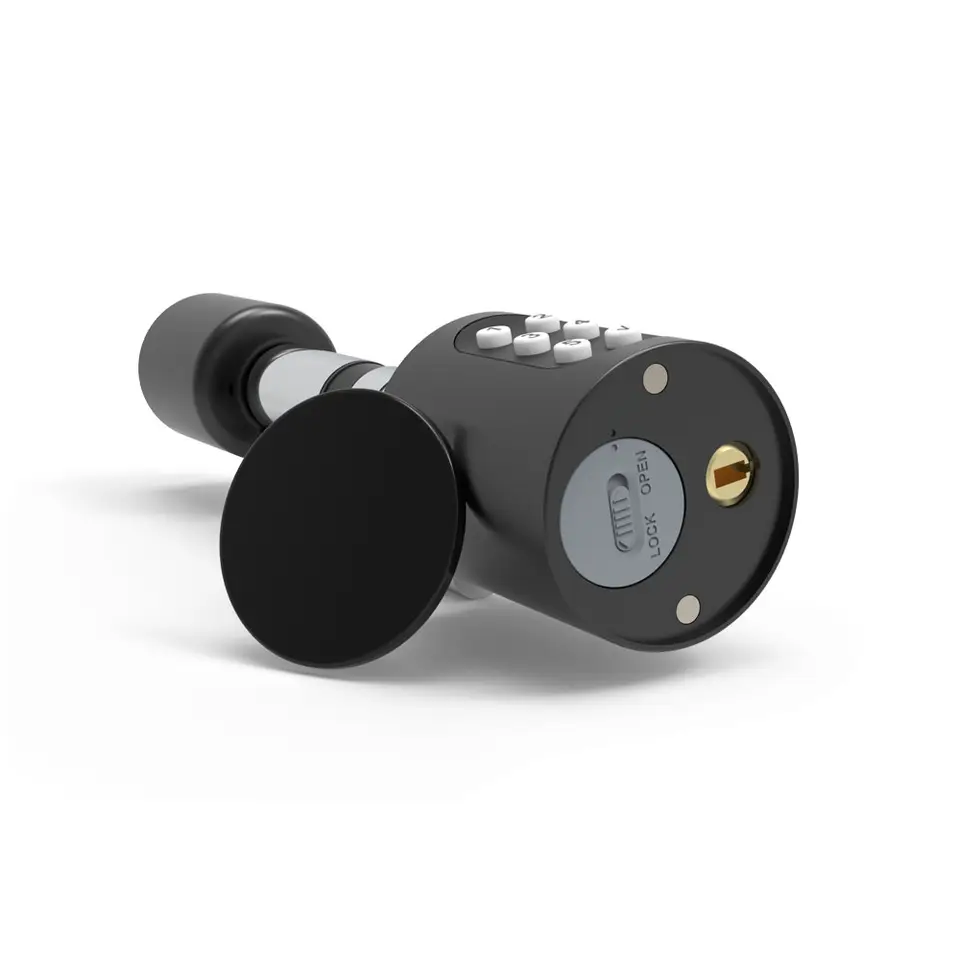

2 x Suction Cup (Used to open Battery/ Key Compartment).
1 x User Manual.

*This set is only the Handle part with Cylinder Only. Does not include a mortise Lock Body.*

*Please note that this Device only Supports Bluetooth Connection to the Tuya or Smart Life App. It cannot connect to the internet and perform automation unless the Mobile Phone that it is connected to Bluetooth to is in the Bluetooth range. If you need to connect to Wifi then a separate Tuya Smart Life Bluetooth Gateway needs to be Purchased and to be linked to the device.*
