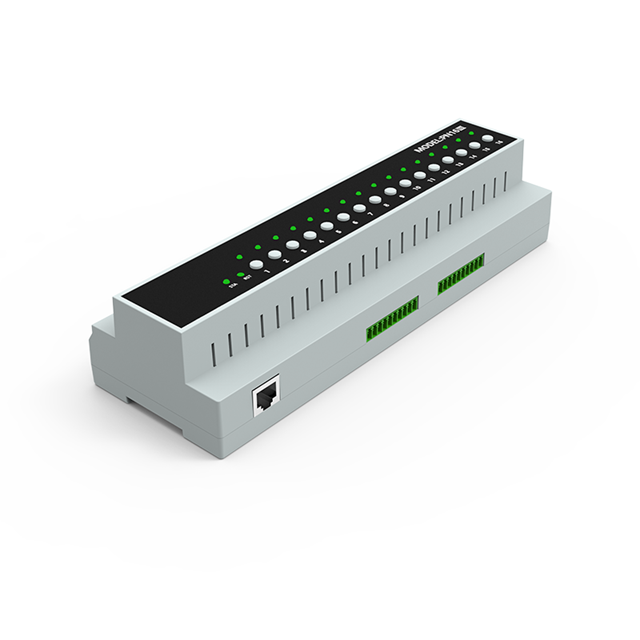

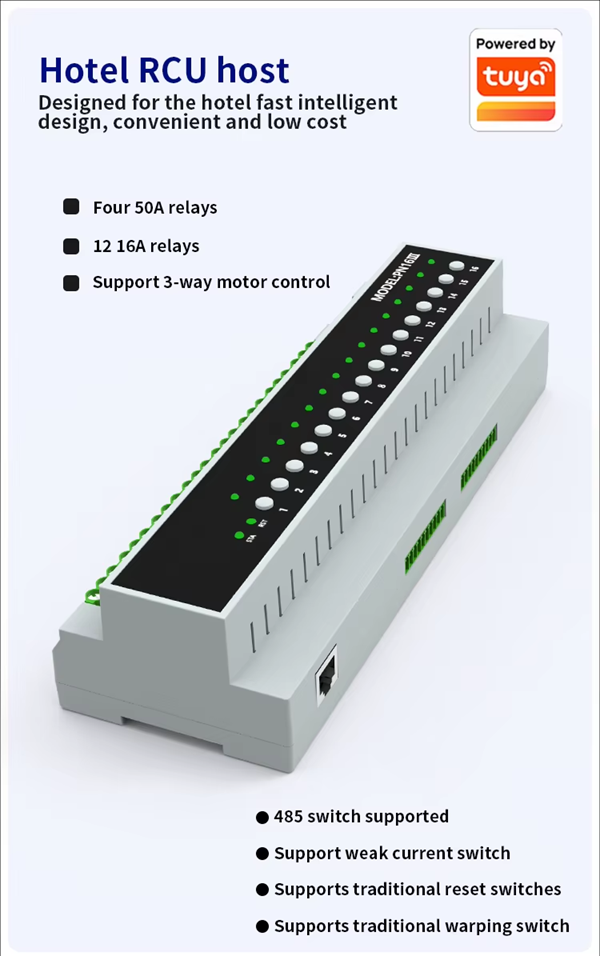

Smart Life Tuya WIFI 16CH Switch Relay | 100V-220V 50A 11KW / 16A 3KW

Welcome to Smart Home Automation.

The newly designed WIFI 16CH 100V-220V 50A 11KW / 16A 3KW Switch.

Our Switch is best for controlling appliances that use the above voltages to switch those items ON/ OFF when needed.

All you need is Our Smart Home Devices, WiFI with constant Internet, and Electricity to power the Device. Some of Our Devices are Battery Powered so you don't have to worry about messy cables or the need to run cables.

Features;

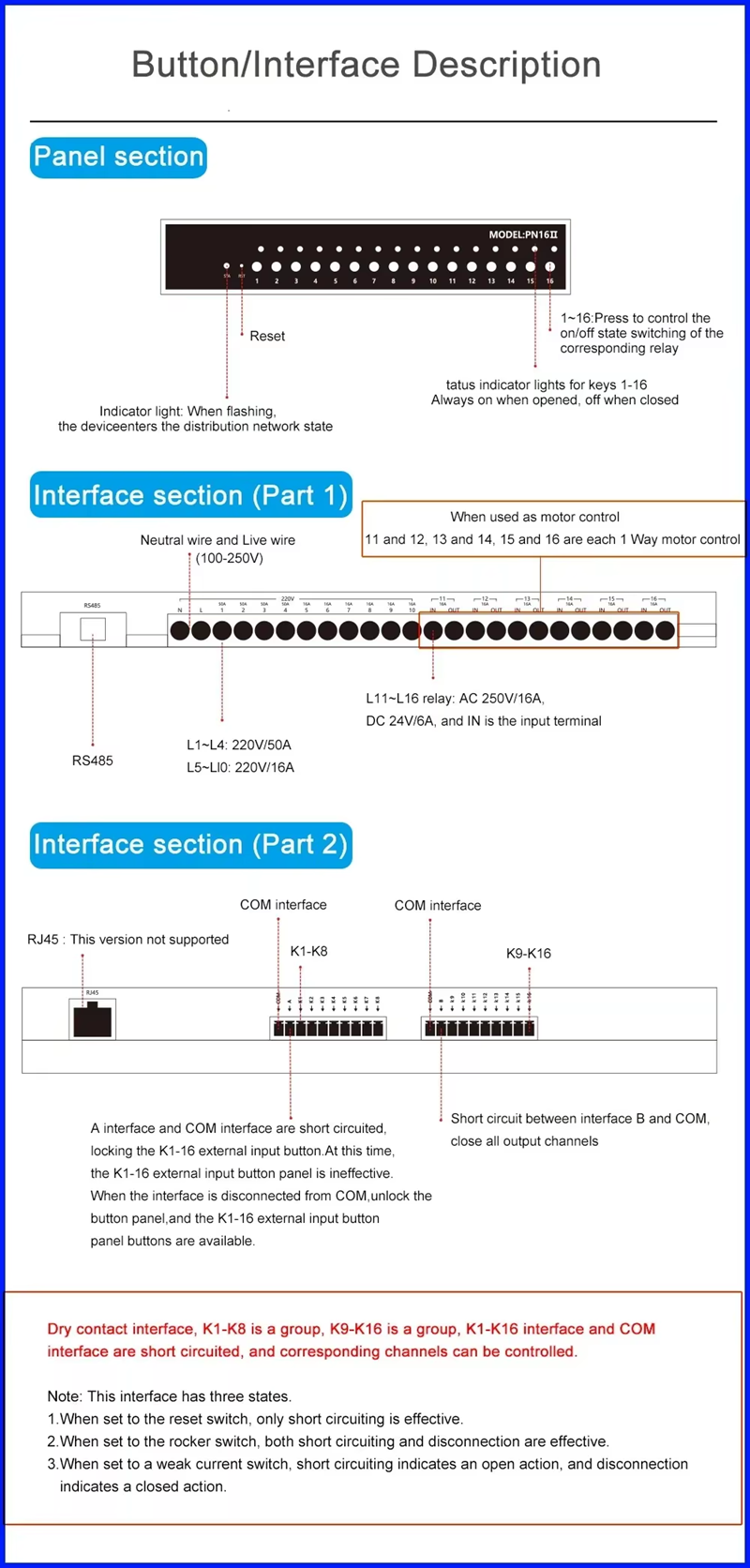

4 x 50A Output Ports (L1-L4)
6 x 16A Output Ports (L5-L10)
6 x 16A Output Ports (L11-L16). Dry Contact. IN & OUT ports. IN Ports 24V 6A / 250V 16A Max. Outputs same as the input Voltage.
Once you press the Manual switch or control from the app, the relay will activate to keep ON or OFF normally. You can use it to control the appliances within AC 100V-220V.
RS485 Ports.
RJ45 Port for wired Internet.
Manual Switch Ports for connecting a external Manual Switch/ Button.
Set a schedule or a Countdown Timer of when your Device should be turned ON/ OFF.
Switching mode via Tuya/ Smart Life Mobile phone App.
Supports Voice Control and Works with Amazon Alexa, Google Home.
Get alerted via Notification on your Mobile Smartphone within seconds.

Specifications;
Electrical Voltage: AC 100V-220V.
Relay Load:
L1-L4 ports: 220V/ 50A 11KW 11000W Max. per channel.
L5-L10 ports: 220V/ 16A 3KW 3000W Max. per channel.
L11-L16 ports: 24V 6A / 250V 16A 3KW 3000W Max. per channel.
L1-L10 is Active Relays which gets input power from L & N Input.
L11-L16 is Dry Contact Relays which gets input power from IN ports for that specific port only.
This switch can only be powered by the Input L & N AC ports.
Please make sure the wire gauge is enough to pull the amperage to support all Ports.

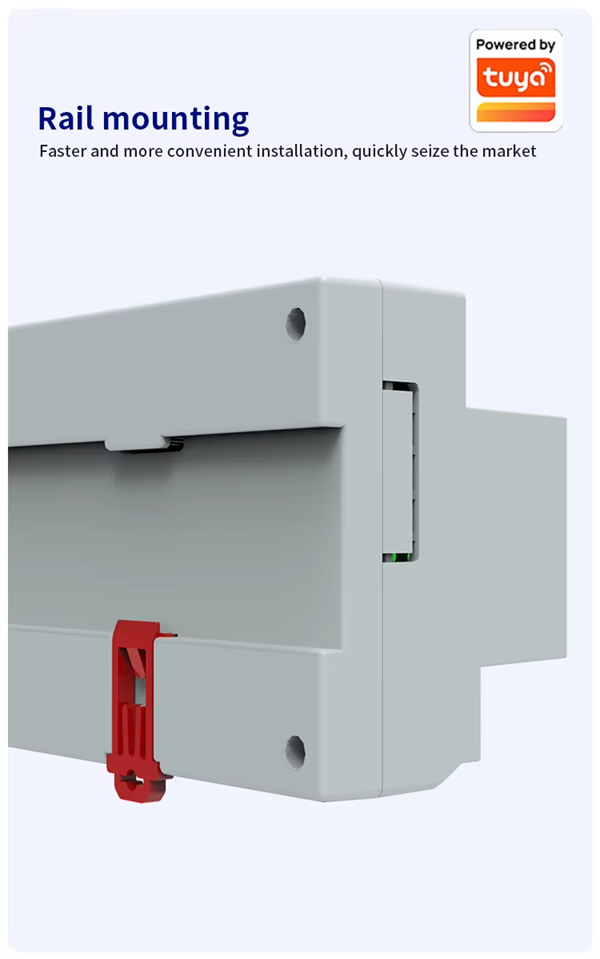

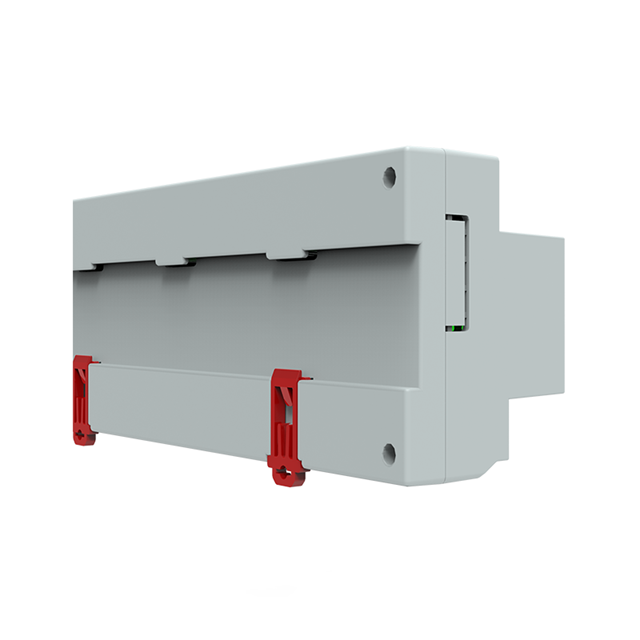

35mm DIN Rail mount.
Wireless Frequency: Connects to WiFi 2.4GHz Only.
Panel Material: PC.

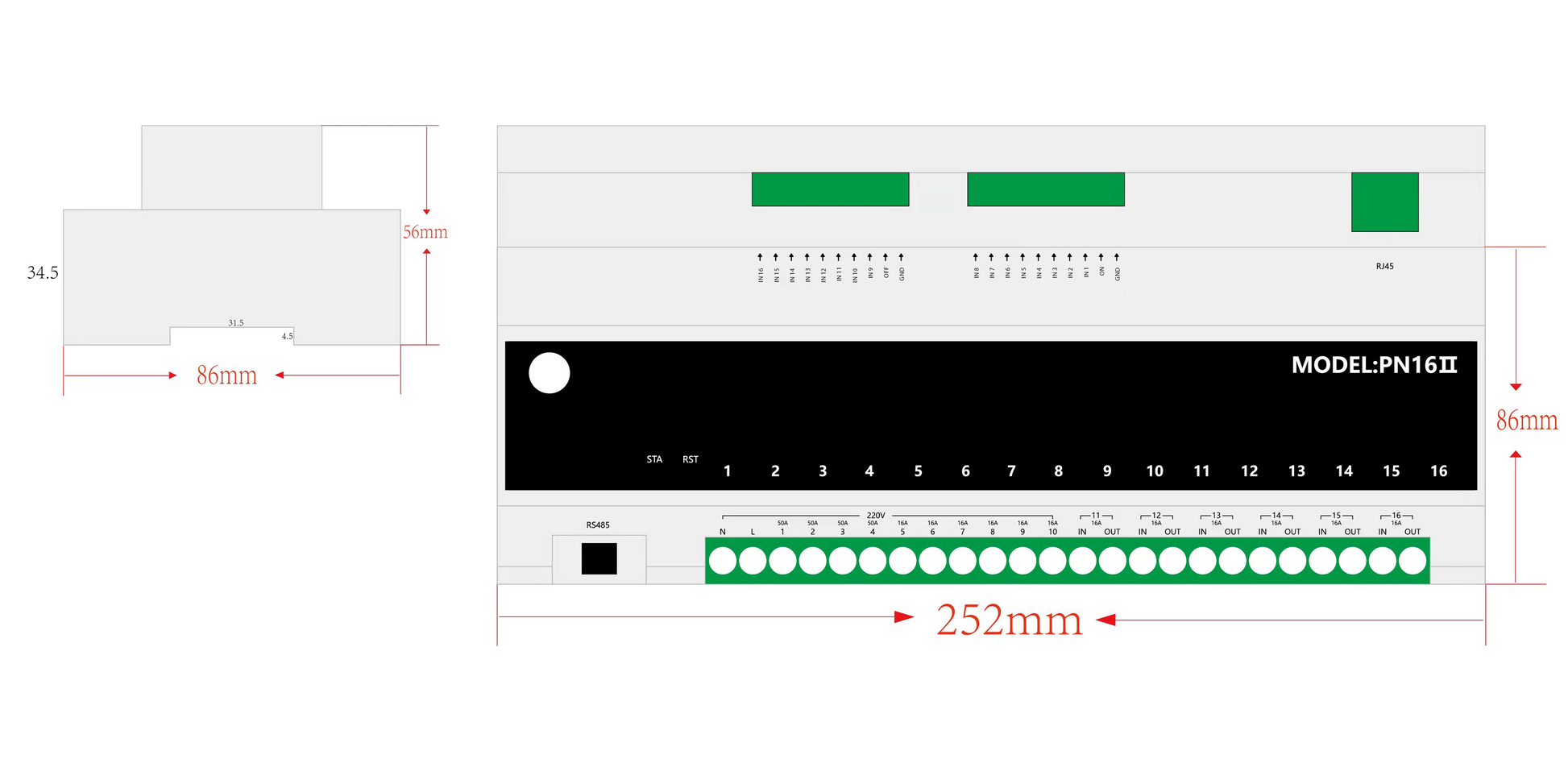

Dimensions: Box: 285 x 120 x 83mm.
Weight: 850g.

What's in the Package;
1 x Smart Life Tuya WIFI 16CH Switch Relay | 100V-250V 50A 11KW / 16A 3KW.
1 X External Antenna.
1 x User Manual
