Smart Life Tuya WIFI 1CH 5V / 7-32V Door Gate Garage Opener Inching Relay Module w/ RF433Mhz

Welcome to Smart Home Automation.

The newly designed WIFI 1CH 5V or 7-32V Door Gate Garage Opener Inching Relay Module with RF433Mhz.

Our Relay Module is best for connecting to your existing Door Gate Garage Motor to Open/ Close or Turn Lights or Appliances ON/ OFF. Control your device from anywhere in the world.

All you need is Our Smart Home Devices, WiFI with constant Internet, and Electricity to power the Device and your Lights. Some of Our Devices are Battery Powered so you don't have to worry about messy cables or the need to run cables.

Features;
Inching Mode (Momentary) - Once you press the Manual switch or control from the app, the relay will activate for 1 Second - 60 Minutes (time adjustable on the app per second) and then release automatically. You can use it to control the Gate, Door opener, Computer, Elevator, Remote controller key, or any Momentary buttons.
Self-lock Mode - Once you press the Manual switch or control from the app, the relay will activate to keep ON or OFF normally. You can use it to control the Light, Fan, Humidifier, or other home appliances within AC 0-250V 10A 2200W Max / DC 0-30V 10A.
DC Input - If your equipment is powered by DC7-32V, then you can power up the board with the same power source. Please make sure the input current is enough.
Set a schedule or a Countdown Timer of when your Device should be turned ON/ OFF.
Switching mode via Tuya/ Smart Life Mobile phone App.
Syncs from Tuya or Smartlife app to Google Home and Alexa app for Voice Control.
Get alerted via Notification on your Mobile Smartphone within seconds.

In-App Features;

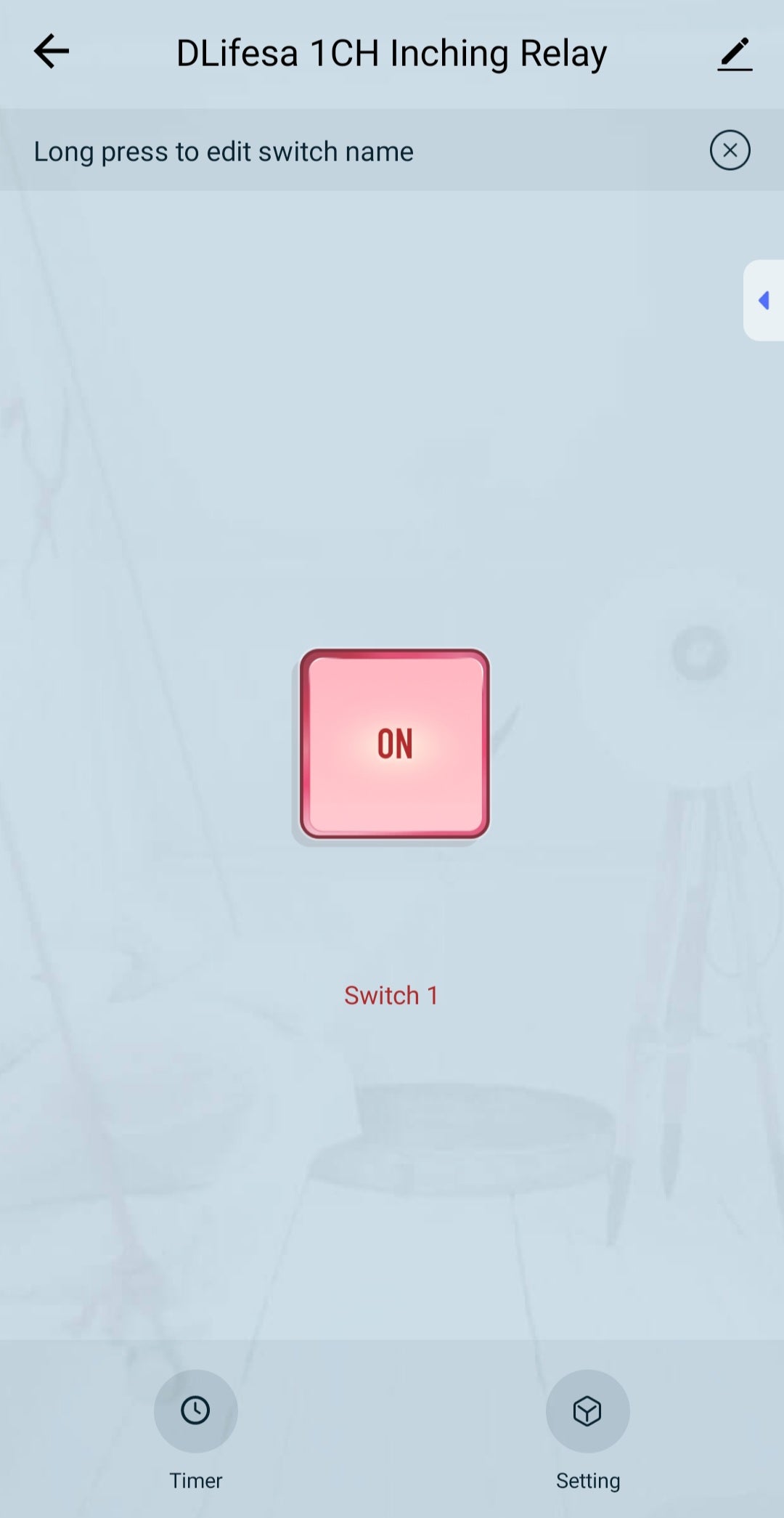

Power: ON/OFF.

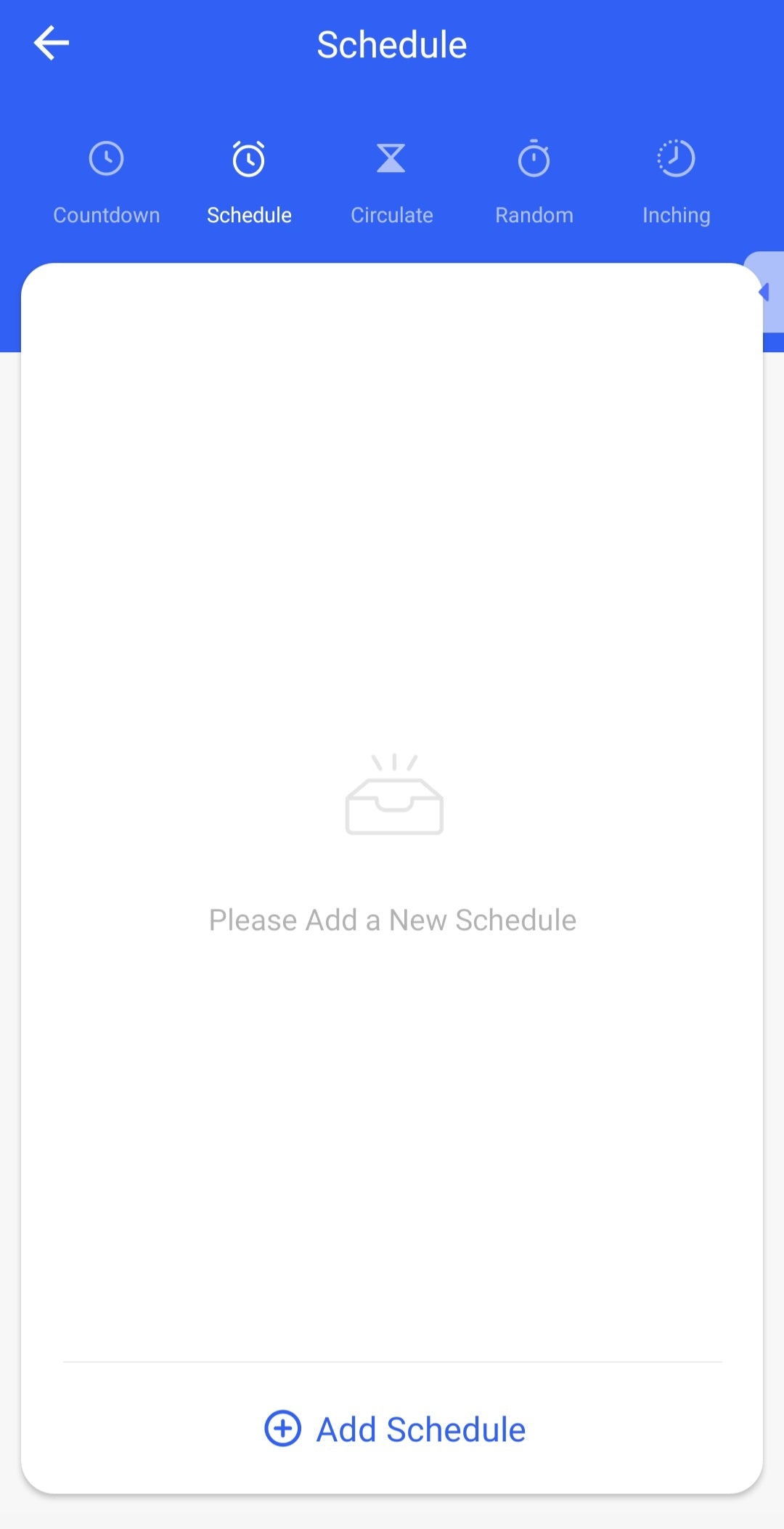

Timer: Countdown | Schedule | Circulate | Random | Inching.

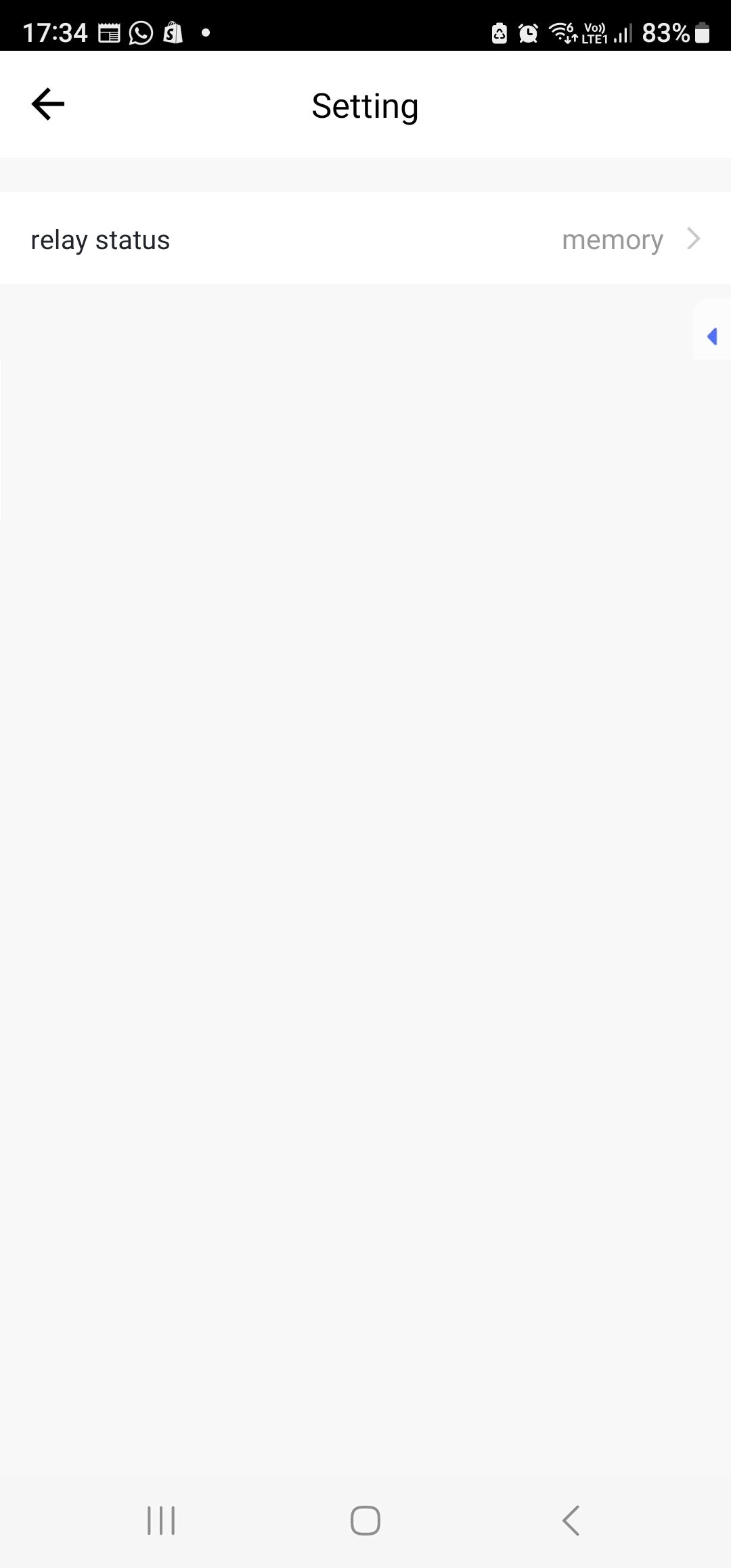

Settings: Relay Status After a power cut, the relay should turn OFF, ON, Remember last status.

Specifications;
Electrical Voltage:  DC7-32V or 5V Micro USB Port.
Relay Load: 250V/ 10A 2200W Max.

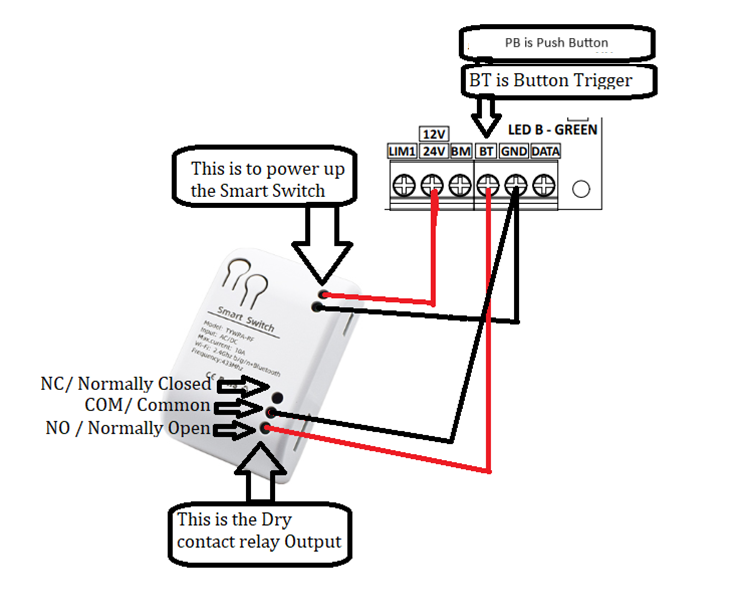

Can be used for Doors, Gate Motors, Garage motors, etc. Will connect to 12V/ 24V DC+ (Live) and GND (Ground) input to power up the unit and COM and NO (Normally Open) connected to PB (Push Button) / BT (Button Trigger) on your Motor Circuit Board.
Switch is default on Self Lock mode and Inching Mode is set through the app under timer.
RF remotes are added via the Device by pressing the reset button for 3 seconds then pressing the RF remote button. Only supports Single code RF433 Remotes. Not able to capture the rolling code Safety feature of Alarm and Gate remotes.
Please note that this device cannot show you the Status if your Door, Gate or Garage is opened or closed. Can only trigger the motor to reverse from the current position similar to an RF wireless Remote.
Wireless Frequency: WiFi Standards IEEE 802.11 b/n/g on the 2.4G Hz Only | RF433Mhz.
Panel Material: PC.

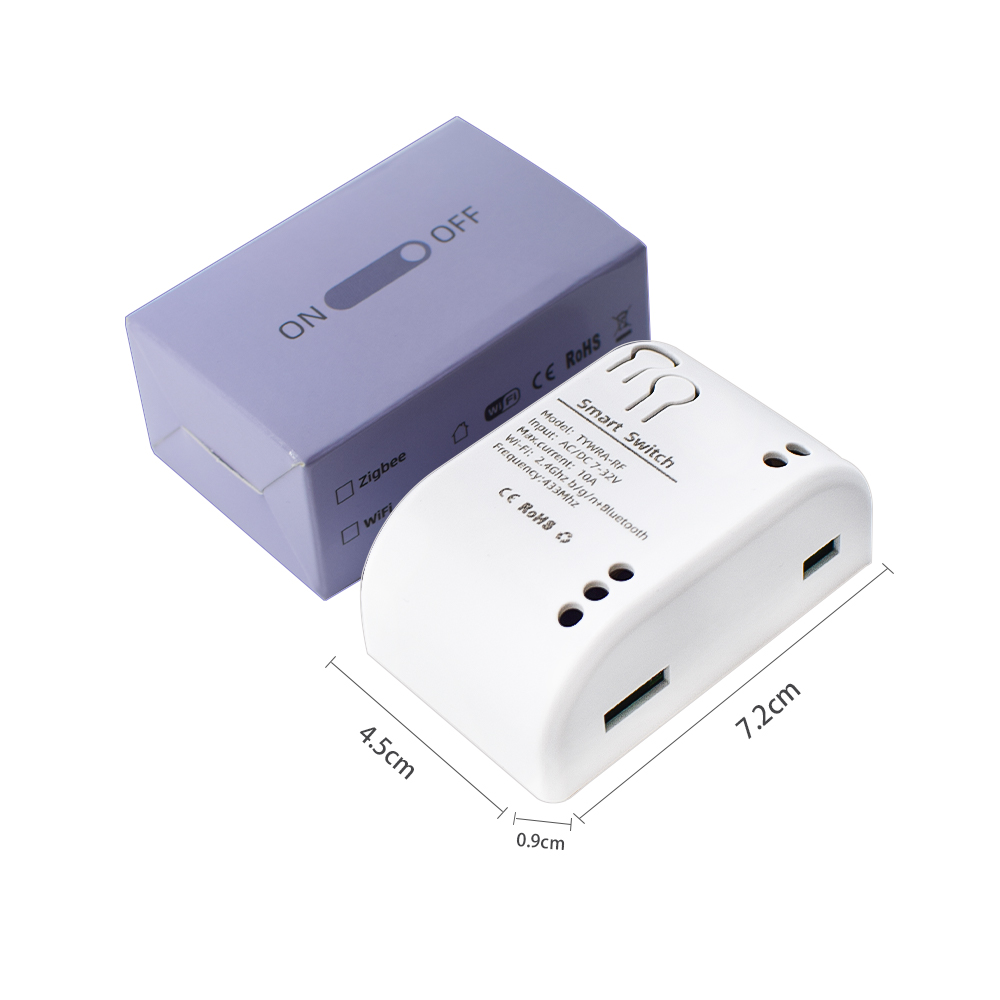

Dimensions: Box: 74 x 48 x 34mm.
Weight: 0.06kg.

What's in the Package;
1 x Tuya WIFI 1CH 5V or 7-32V Door Gate Garage Opener Inching Relay Module with RF433Mhz.
1 x User Manual

*Please note the power input is only for the PCB Powering. The relays are Dry-contact switches without voltage or amperage output.*
