Smart Life Tuya WIFI 1CH Dimmer Light Switch | Live & Neutral Wire | White

Welcome to the Digital Life Smart Home Automation Range.

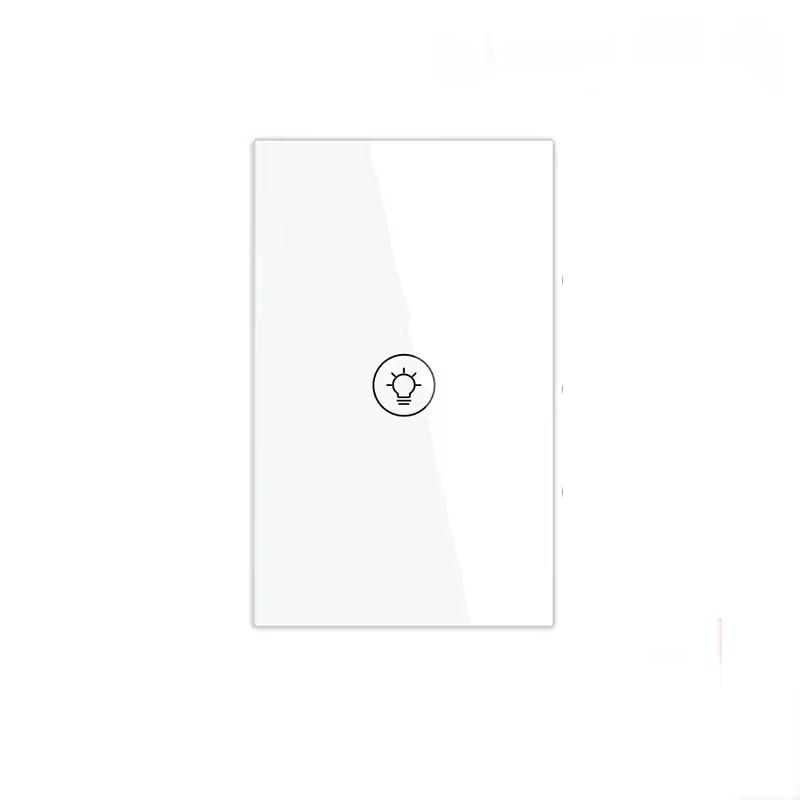

The newly designed Dimmer Smart Switch with a scratch-resistant glass panel is designed with WiFi to replace traditional switches with a variety of ways to control.

Our Switches are Touch Sensitive and they act as Normal Switches to Turn your Lights ON/ OFF or to Dim your Light but with the added benefit of controlling it from your Mobile Smartphone via the Tuya/ Smart Life App, or the Manual Backlit Touch Buttons. Switch your lights ON/ OFF or Dim them from anywhere in the world.

All you need is Our Smart Home Devices, WiFI with constant Internet, and Electricity to power the Device and your Lights. Some of Our Devices are Battery Powered so you don't have to worry about messy cables or the need to run cables.

Features;
A sophisticated design with a White Panel and a Blue Backlight on each switch lets you easily find the switch in the dark.

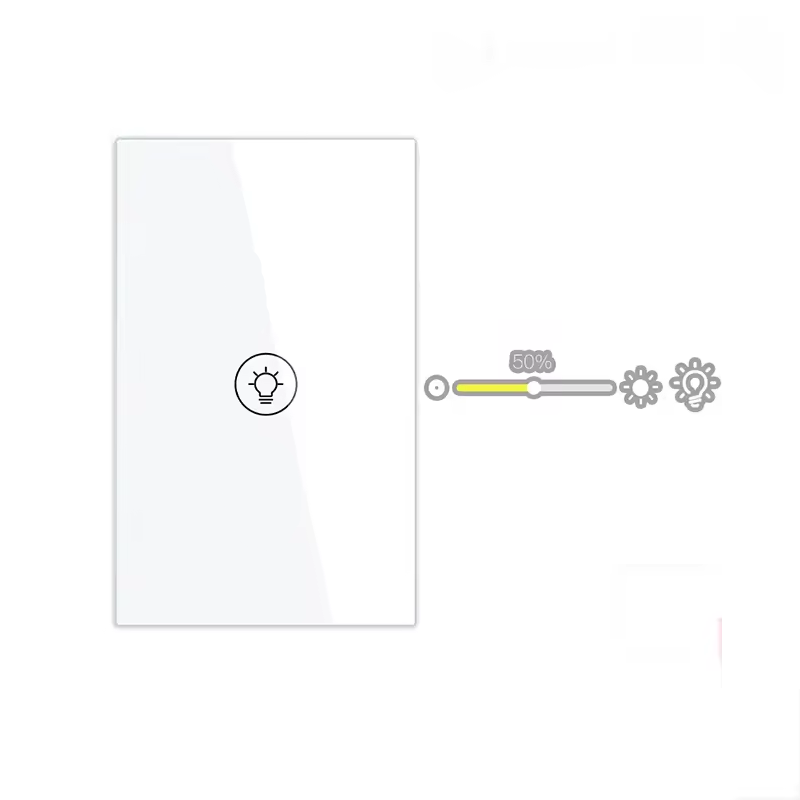

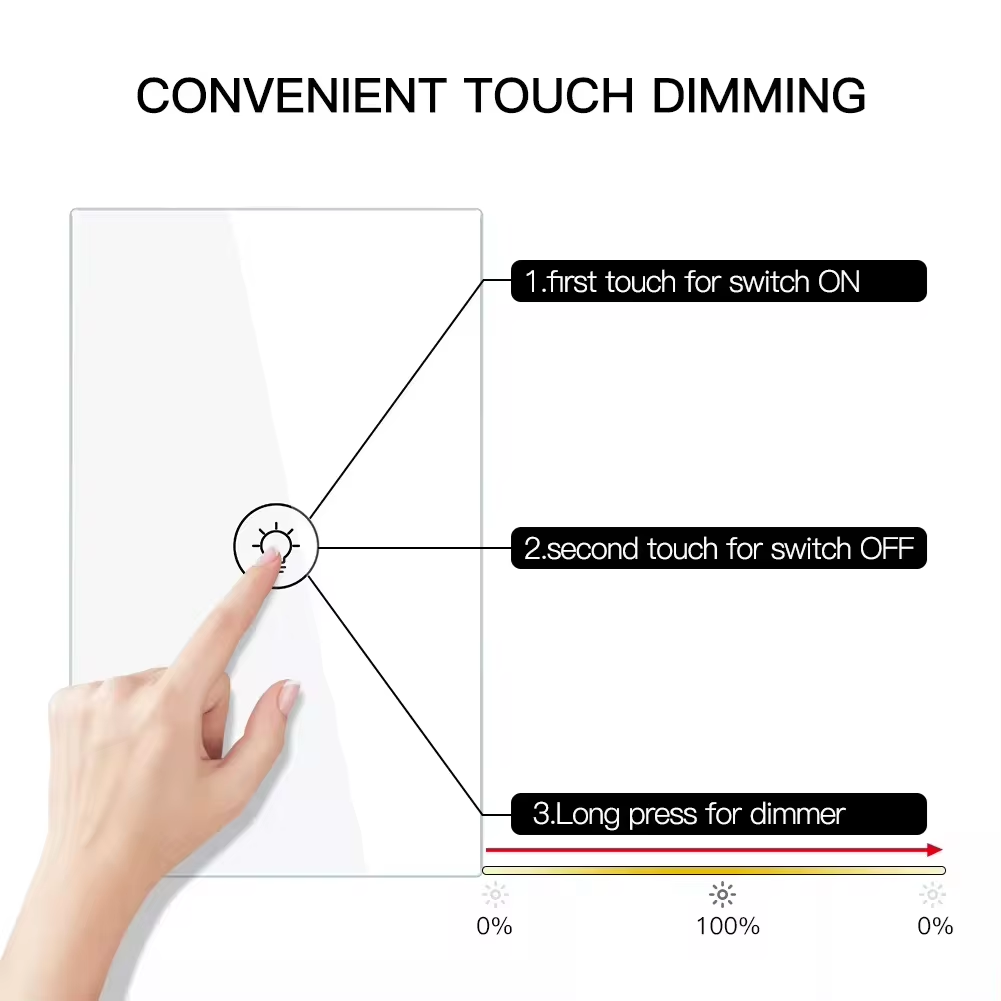

Single Touch for ON & OFF or Long press for Dimming.
Set a schedule or a Countdown Timer of when your light should be turned ON/ OFF.
Switching mode via Touch Panel, Tuya/ Smart Life Mobile phone App,
Syncs from Tuya or Smartlife app to Google Home and Alexa app for Voice Control.
Get alerted via Notification on your Mobile Smartphone within seconds if a Light turns ON/ OFF.

In-App Features;
All switches Power: ON/OFF.

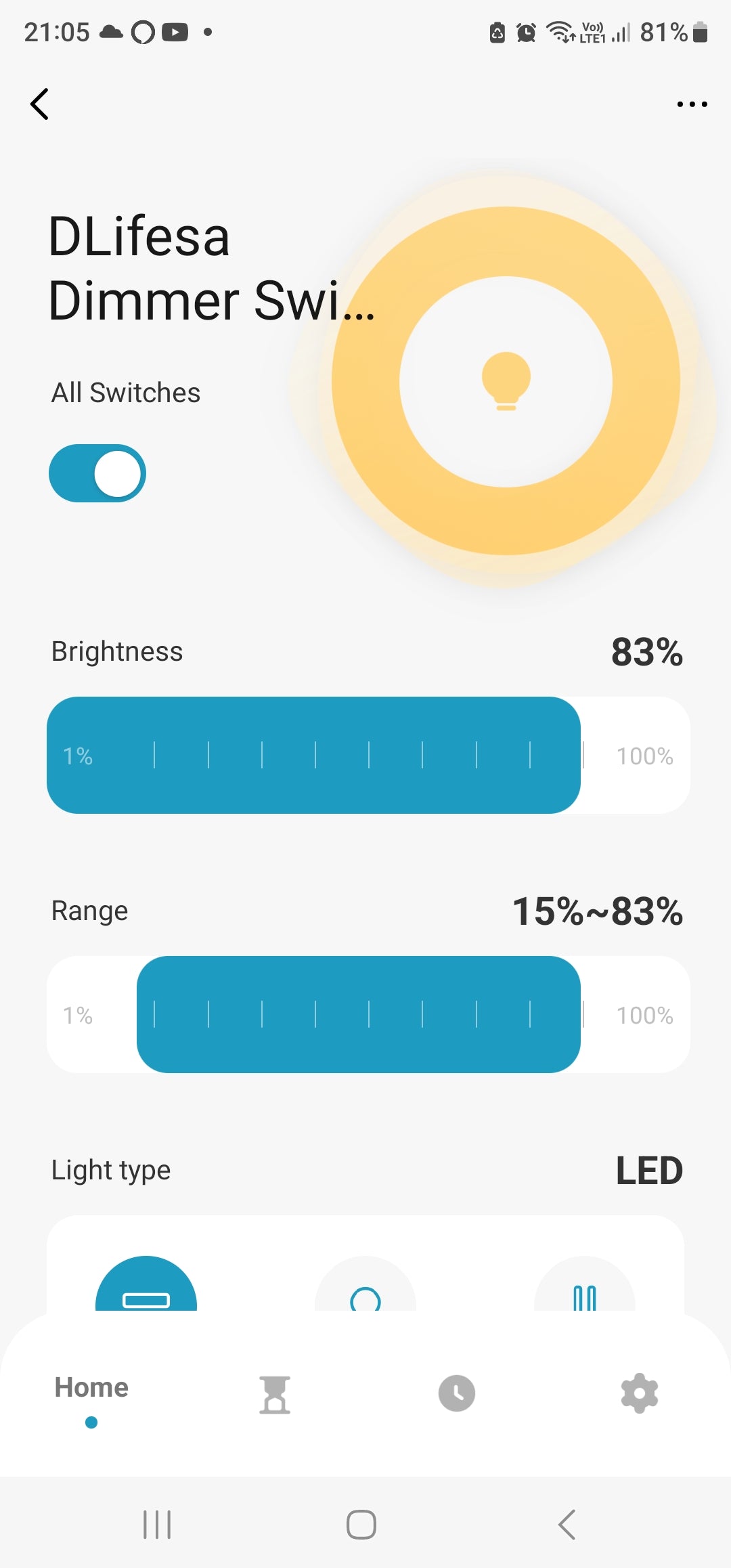

Adjust Brightness from 1% to 100%.
Bulb Brightness Range (Set the lowest and highest point that the Bulb can handle).
Light Type: LED / Incandescent / Halogen.

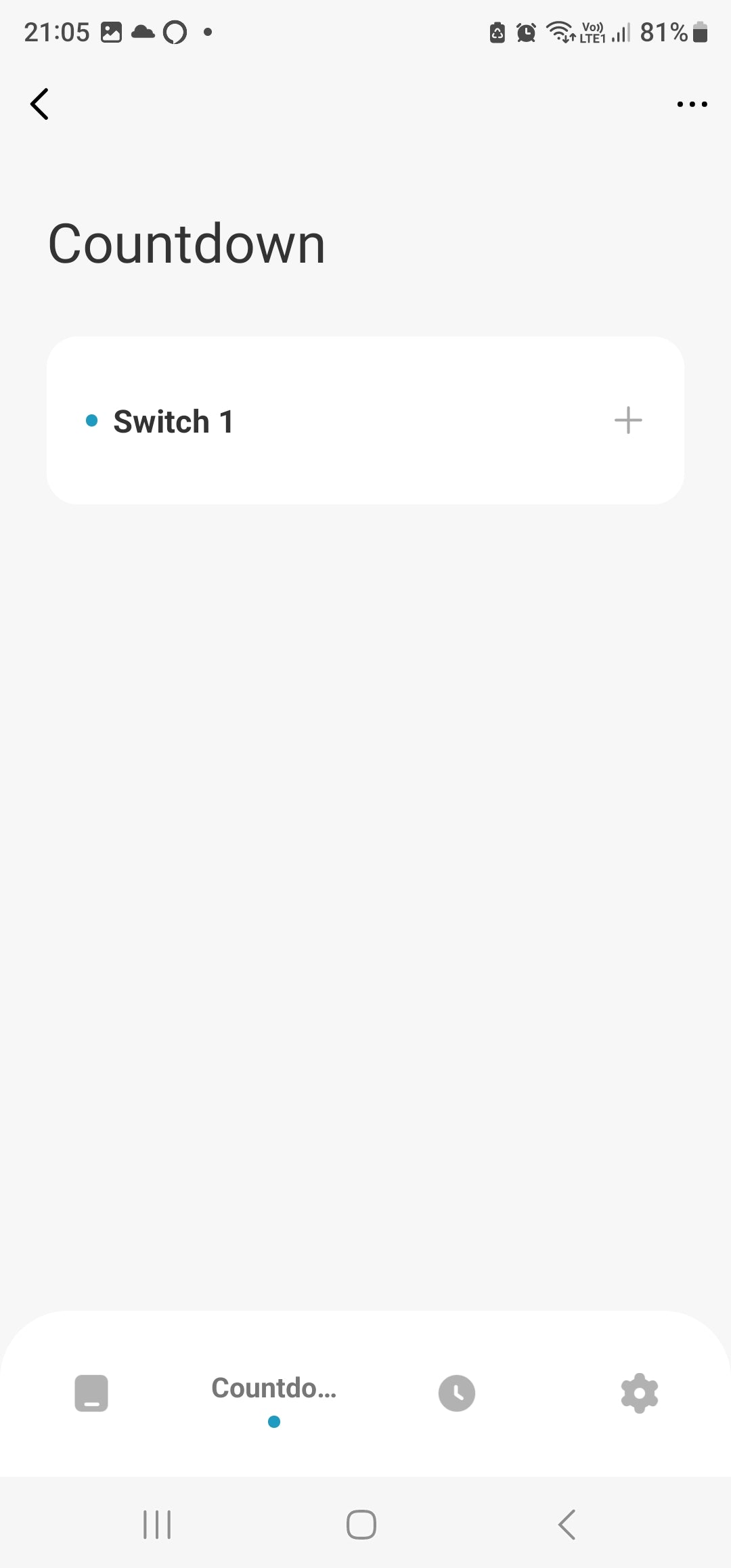

Countdown

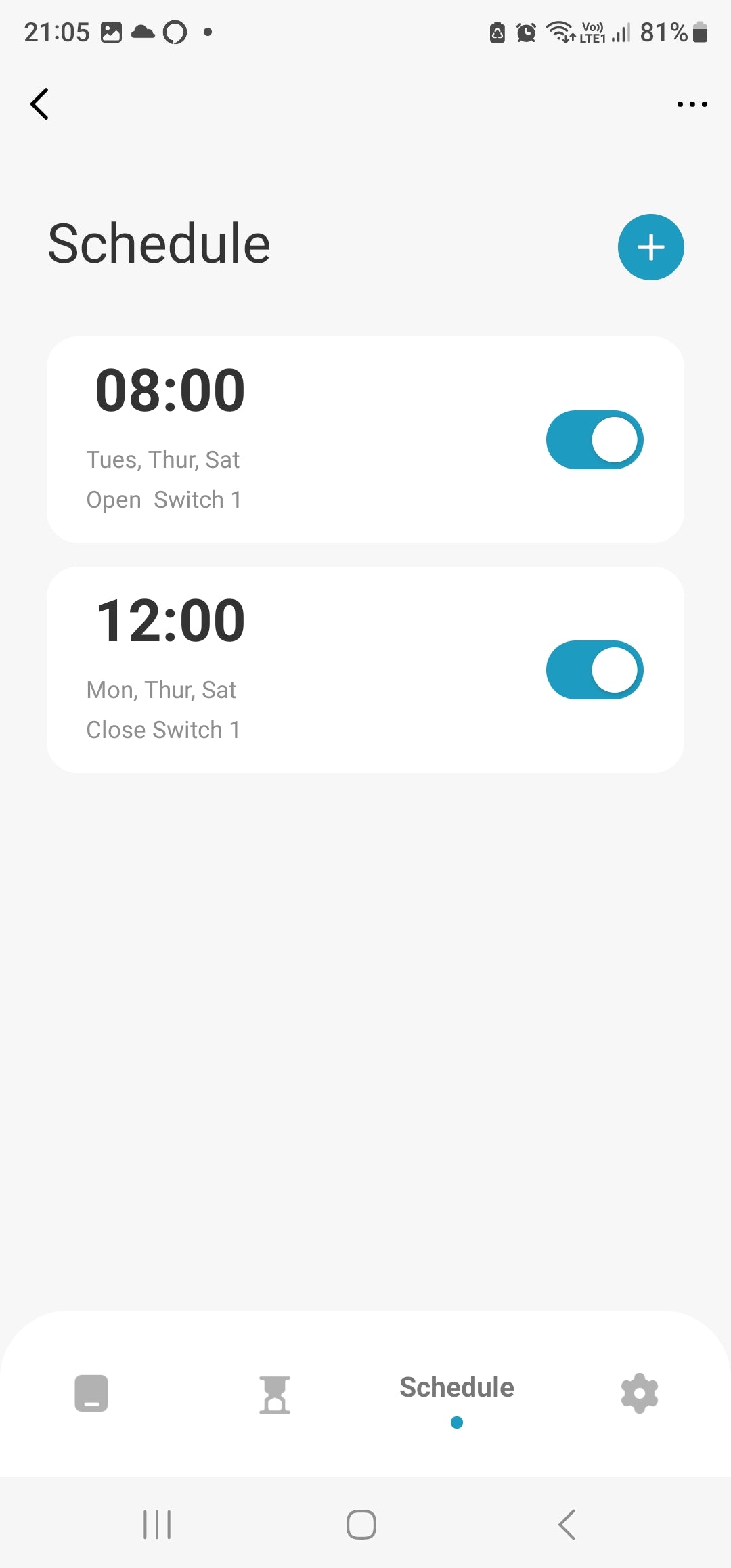

Schedule.

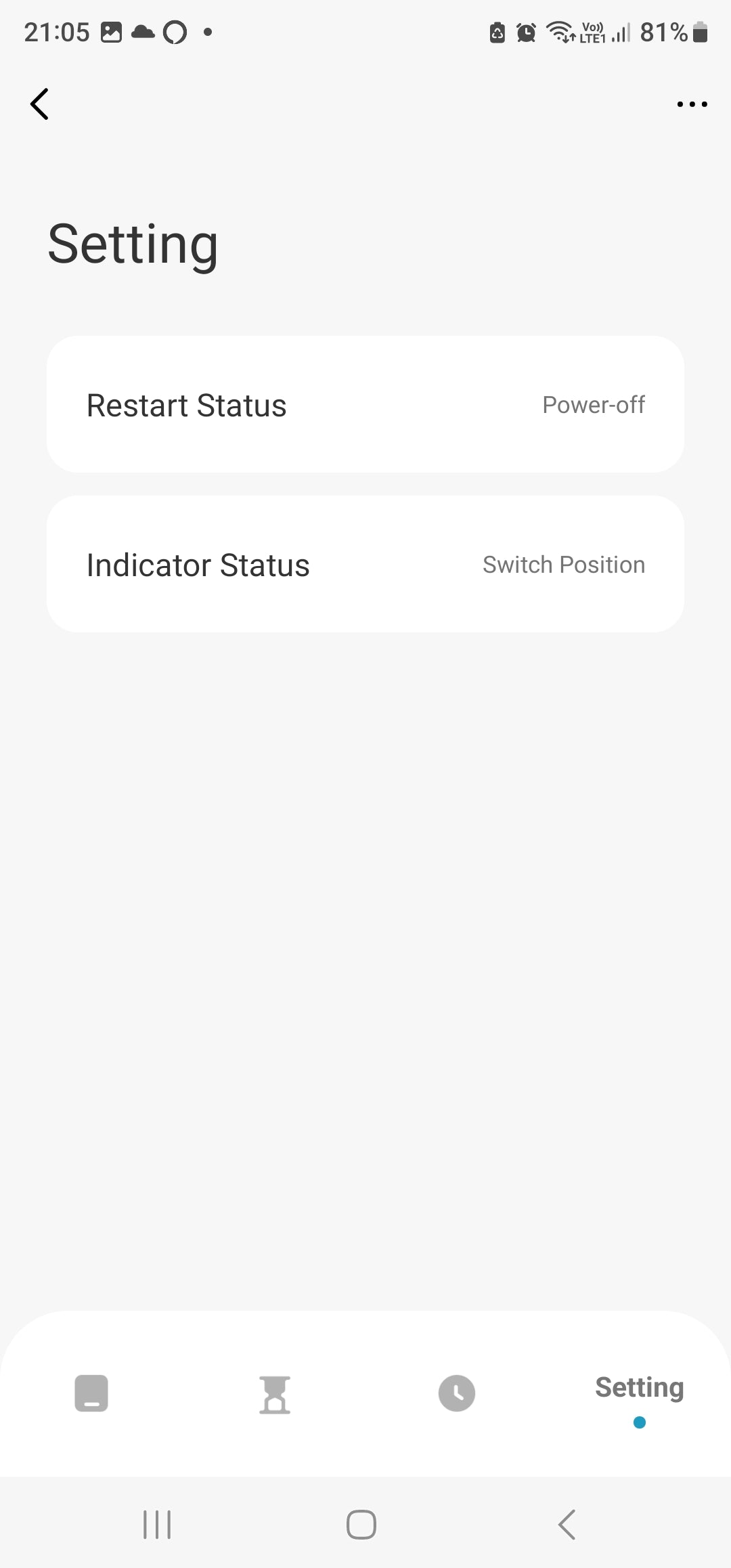

Settings: Restart Status (On, Off, Memory). After the Power cut of this switch then the switch turns on with the selected Status. | Indicator Status: OFF | ON / OFF | Switch Position for LED Backlit Button.
Multi-control Association: Link Other switches or specific buttons for other Switches to this switch.

Specifications;
Electrical Voltage: 90V-250V AC.
Max Total Power for up to 220V 150W LED, 220V 150W CFL, or 220V 600W INC Only.
Light Type supported:  Dimmable LED / CFL / Incandescent Lighting.
The bulb/ Light must support the Dimming Function for dimming to work.

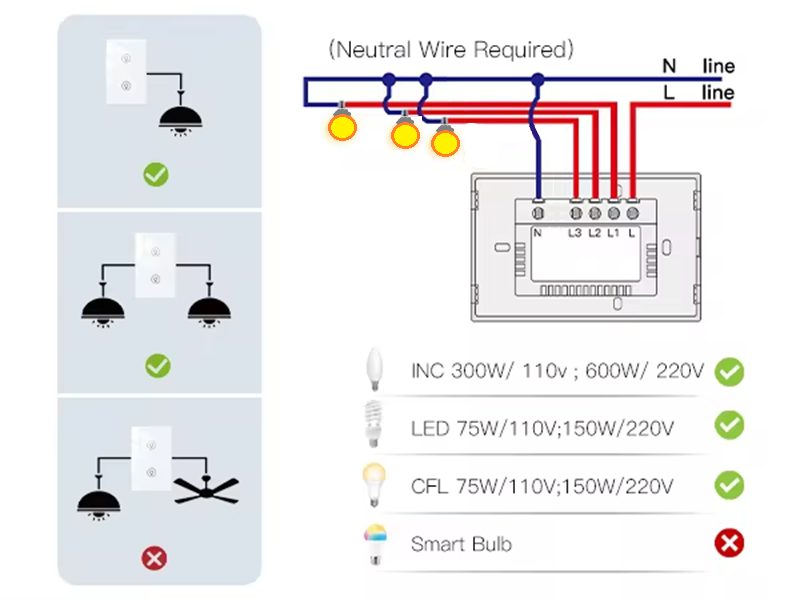

Wire connection: Live with Neutral must be connected at the switch.
For dimming via the Manual touch switch, Long press and it will dim forwards (1% to 100%), release finger and long press again then it will dim Backwards (100% to 1%).

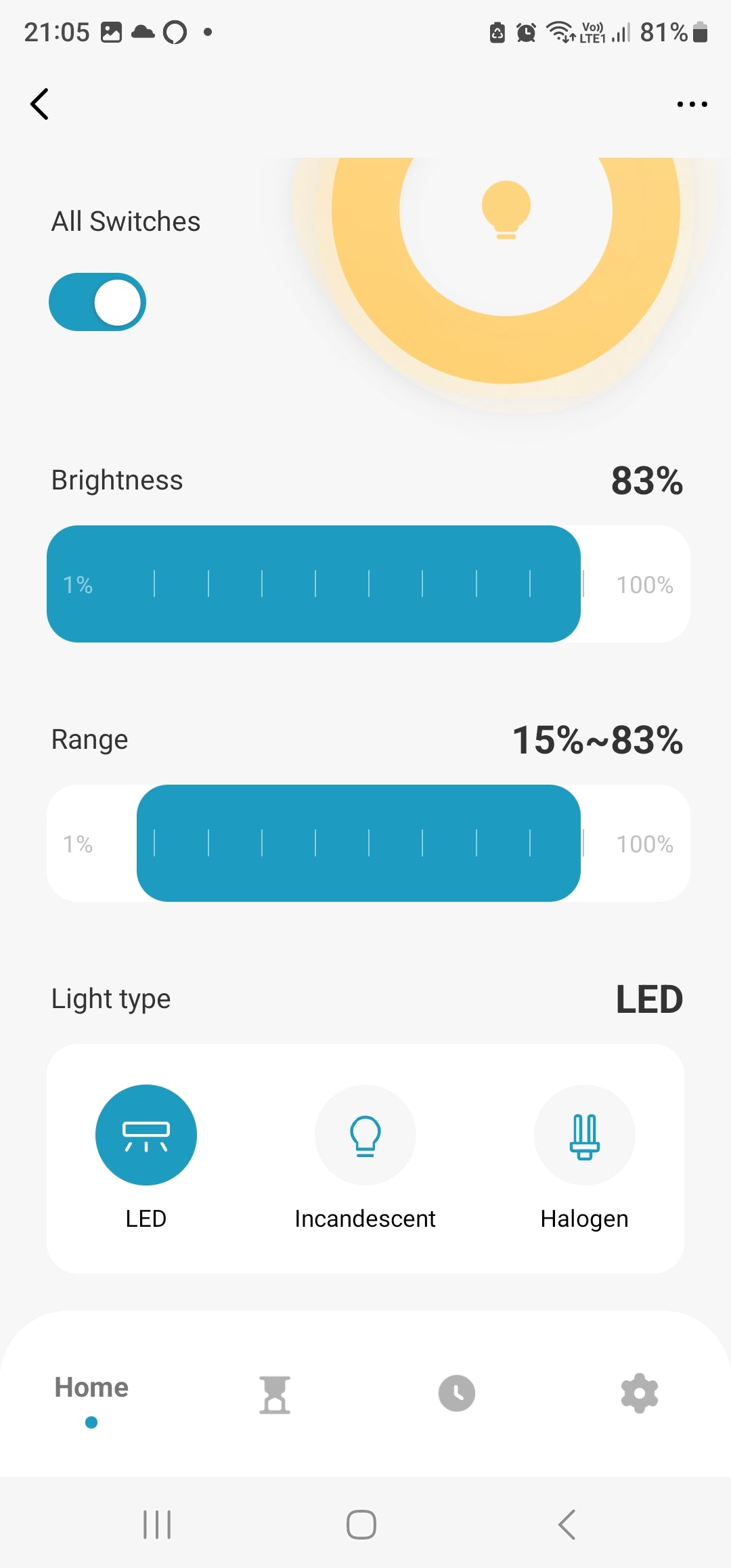

Range setting in the app: Once Set then the brightness will only turn to this Minimum and Maximum %. For example if you set lowest at 15% and Highest at 83% then you will only be able to turn the bulb to lowest at 15% and Highest at 83% via Manual Touch buttons, app, Alexa, or Google Home
LED Backlight for the button is only Blue. Can turn backlighting ON / OFF.
Wireless Frequency: WiFi Standards IEEE 802.11 b/n/g on the 2.4G Hz Only + RF433Mhz.
Panel Material: Tempered Glass Panel + ABS.
Color: White.

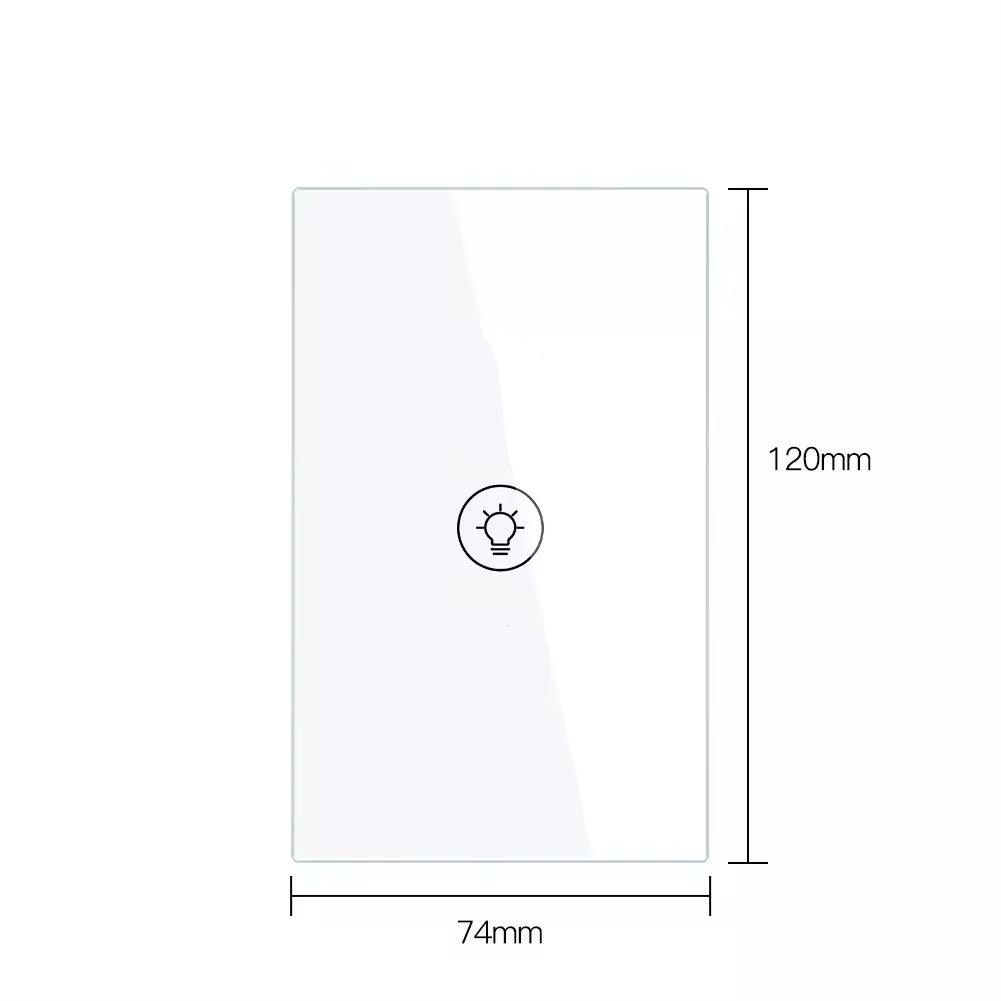

Dimensions: Box: 146 x 93 x 58mm.
Weight: 210g.

What's in the Package;
1 x Tuya WIFI 1CH Dimmer Light Switch | Live & Neutral Wire | White.
2 x Screws
1 x User Manual

Please note the wire connection is Live & Neutral input to the WiFi Dimmer Switch. Please check your wiring if you have both Live and Neutral wire present at your current wall switch before purchasing.
