Smart Life Tuya WIFI 3P 230V 63A 13800W 13.8KW MCB Switch Circuit Breaker w/ Power Monitor

Welcome to Smart Home Automation.

The smart Switch with Power Consumption Energy Monitoring provides you with the perfect intelligent control of your Smart Home or workplace with Power Monitoring.

View energy Consumption Data on the app to correctly track the energy usage around your home. Know which devices consume the most energy, and make plans to save energy and electricity bills.

This Basic Smart Switch is used to Turn your Devices ON/ OFF from your Mobile Smartphone via the Tuya/ Smart Life App. Switch your Devices ON/ OFF from anywhere in the world.

All you need is Our Smart Home Devices, WiFI with constant Internet, and Electricity to power the Device and your Lights. Some of Our Devices are Battery Powered so you don't have to worry about messy cables or the need to run cables.

Features;
Switch your Device ON/ OFF from anywhere in the world.
For 3 Phase Power.
The motorised Rocker Switch will automatically go up or down. Can be used manually to turn ON/ OFF.
Monitor Power Electricity usage of the whole house or Appliances connected to the device.
Set a schedule or a Countdown Timer of when your Device should be turned ON/ OFF.
Syncs from Tuya or Smartlife app to Google Home and Alexa app for Voice Control.
Get alerted via Notification on your Mobile Smartphone within seconds if a Device turns ON/ OFF.
Can be used to turn on any appliance under 13800W (63A) Max. Eg. The whole house, Geyser, Pool Pumps, Fans, Heaters, Iron, TV, Kettle, Toaster, Fridge, Freezer, Microwave, or Extension cords that connect to any other appliance.

In-App Features;
Live View of Total kWh Forward Energy used.
Line graph.
Real-Time Current (Amps) | Active Power (KW) | Voltage.
Balance (KWh) | Residual current (mA) | Switch Temperature.
View Records: Operation and Alarm Records by Day and Time.
Switch ON/ OFF
Electricity Consumption Statistics: Monitor Total Kilowatt Hours including a Daily (Per Hour), Monthly (Per day), Yearly (Per month).
Schedule | Sunrise | Sunset.
Settings: Alarm Set: Overload | Leakage | High Temperature | Over-Current | Over-Voltage | Under-Voltage | Insufficient Balance warning. Each can be turned ON/ OFF and set thresholds.
Leakage Test
Param Set: Switch Temperature.
Expense Management: Switch prepayment | Balance Energy | Charge Energy | Prepaid Phone records | Clear energy.

Specifications;
Electrical Voltage: 230V AC.
Power Rating: 13800W 13.8KW (63A) Max.
For 3 Phase Power.
External SMA Connector for Wifi Antenna.
RS485 Slot on top of the unit with connector in the box.
Fits on 35mm DIN Rail.
Please note that the whole 3 switches are connected together. Cannot turn each individual rocker switch ON/OFF. You can only turn all ON/ OFF together.
Please make sure there is space inside your DB Board above the switch for the Wifi Antenna.
Please note that Data cannot be extracted from the app. You can only view the data on a per-day or per-month Basis on the app.
Wireless Frequency: WiFi Standards IEEE 802.11 b/n/g on the 2.4G Hz Only.
Color: White.

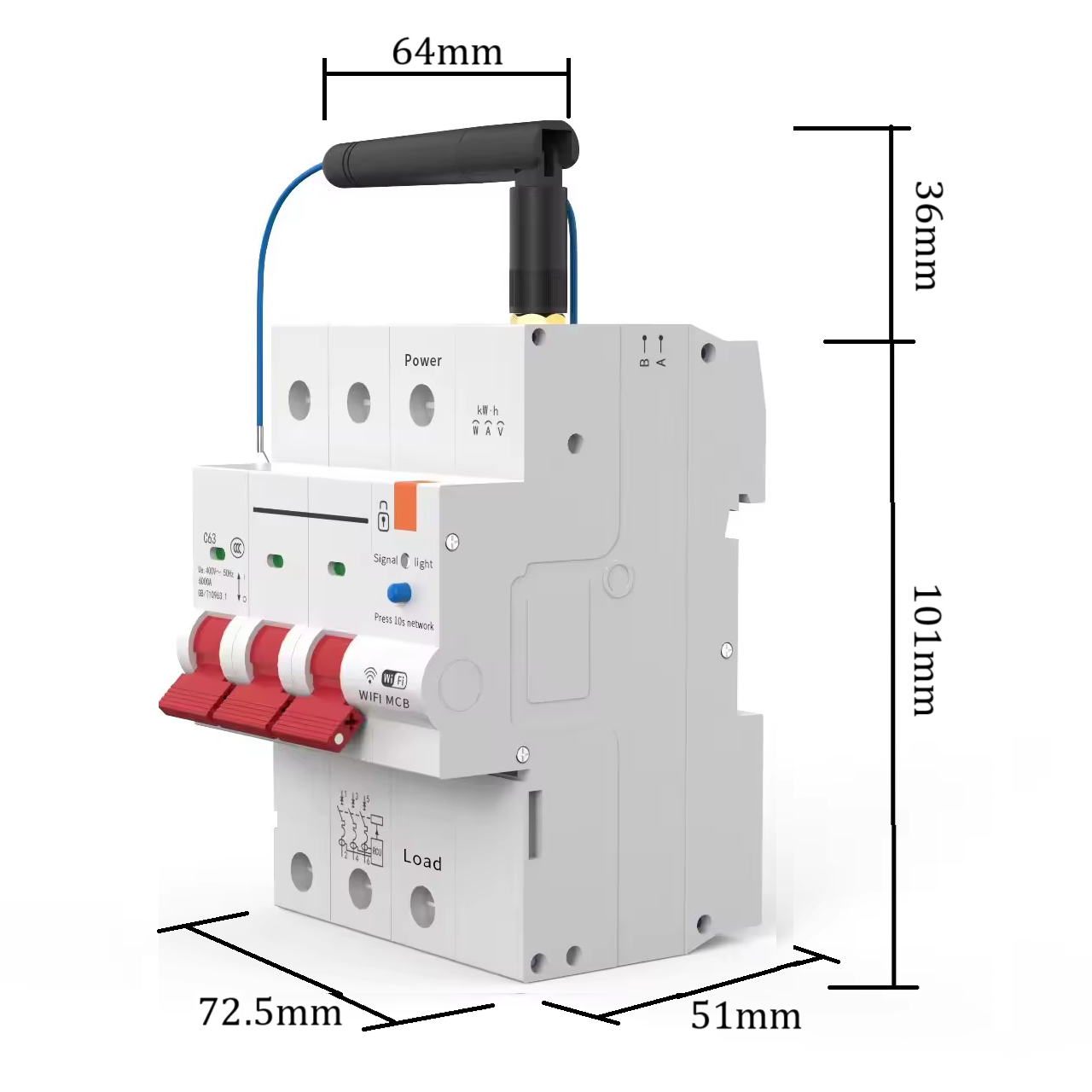

Dimensions: Box: 116 x 106 x 80mm
Weight: 0.52kg.

What's in the Package;
1 x Tuya WIFI 3P 230V 63A 13800W 13.8KW MCB Switch Circuit Breaker w/ Power Monitor.
1 x External Wi-Fi antenna.
1 x RS485 Connector.
1 x User Manual.
