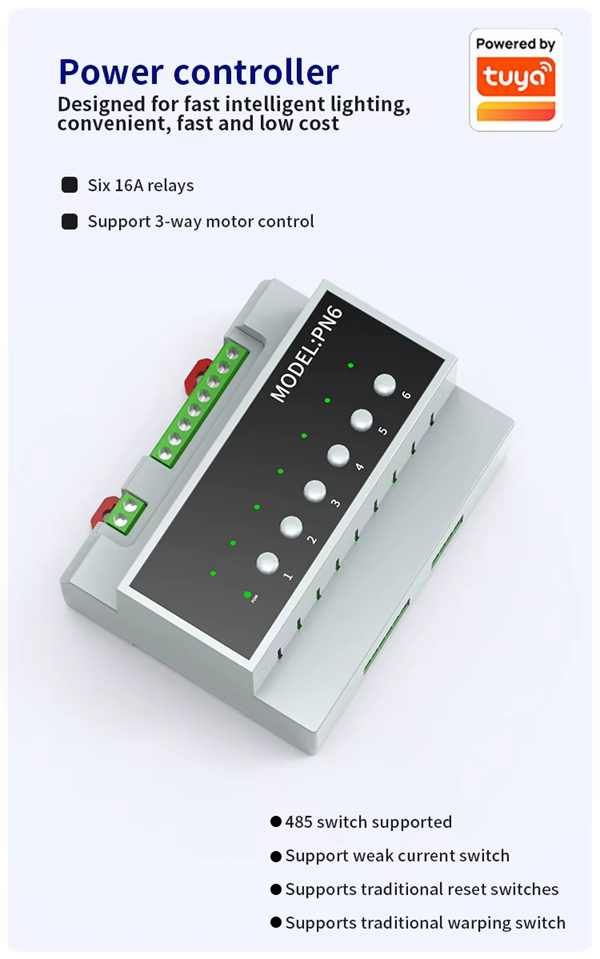

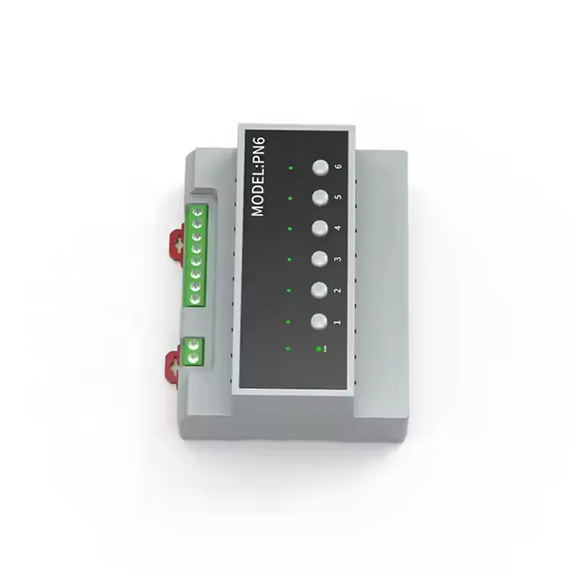

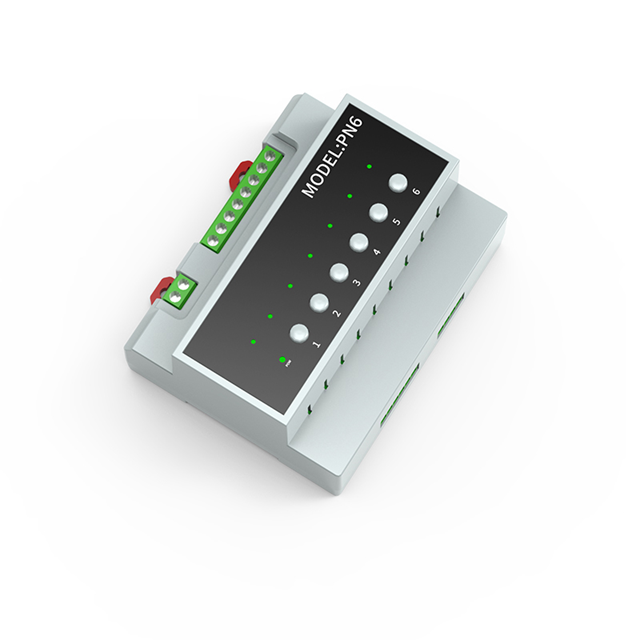

Smart Life Tuya WIFI 6CH Switch Relay | 12V / 24V | 100V-250V 16A 3000W

Welcome to Smart Home Automation.

The newly designed WIFI 6CH 12V / 24V | 100V-250V 16A 3000W Switch.

Our Switch is best for controlling appliances that use the above voltages to switch those items ON/ OFF when needed.

All you need is Our Smart Home Devices, WiFI with constant Internet, and Electricity to power the Device. Some of Our Devices are Battery Powered so you don't have to worry about messy cables or the need to run cables.

Features;
Once you press the Manual switch or control from the app, the relay will activate to keep ON or OFF normally. You can use it to control the Light, Fan, Humidifier, or other home appliances within AC 100V-220V 16A 3000W Max per channel.
If your equipment is powered by 12V /24V, then you can power up the board with the same power source. Please make sure the input current is enough.
RS485 Ports.
Manual Switch Ports for connecting a external Manual Switch/ Button.
Set a schedule or a Countdown Timer of when your Device should be turned ON/ OFF.
Switching mode via Tuya/ Smart Life Mobile phone App.
Supports Voice Control and Works with Amazon Alexa, Google Home.
Get alerted via Notification on your Mobile Smartphone within seconds.

Specifications;
Electrical Voltage:  DC 12V / 24V | AC 100V-250V 16A 3000W
Relay Load: 240V/ 16A 3000W Max. per channel.

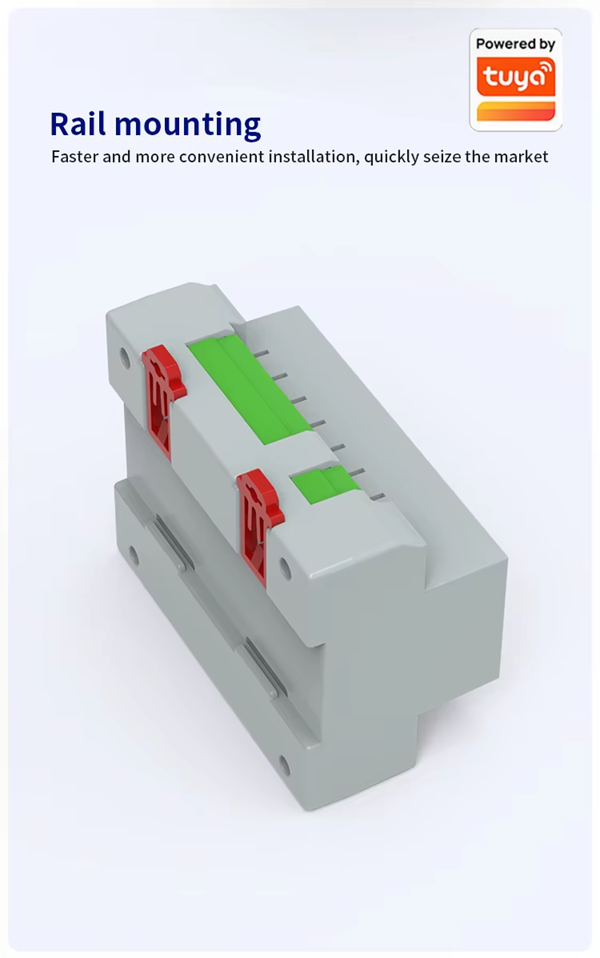

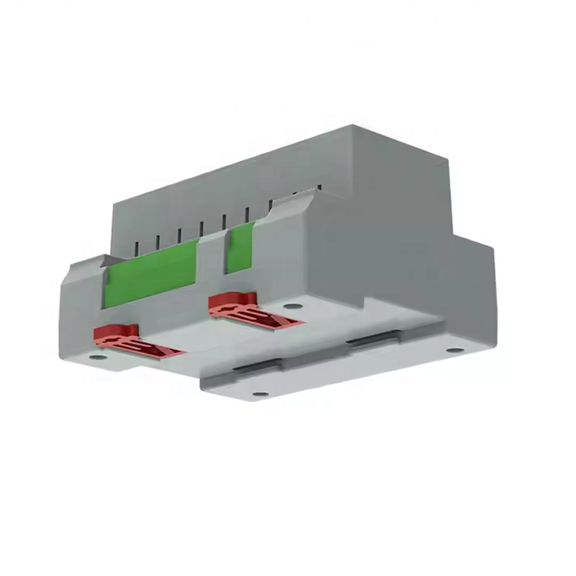

35mm DIN Rail mount.

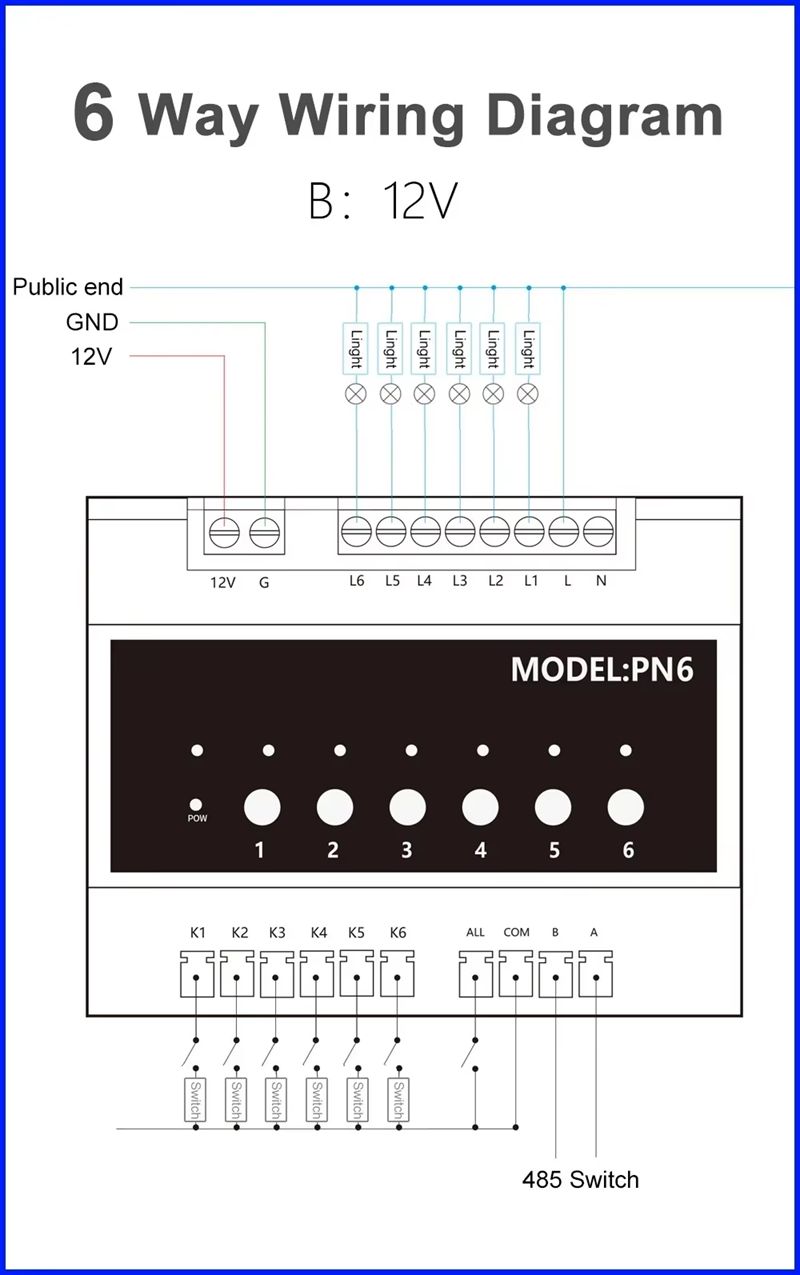

When powered by 12V/24V, L is Common terminal and L1-L6 are the output terminals.

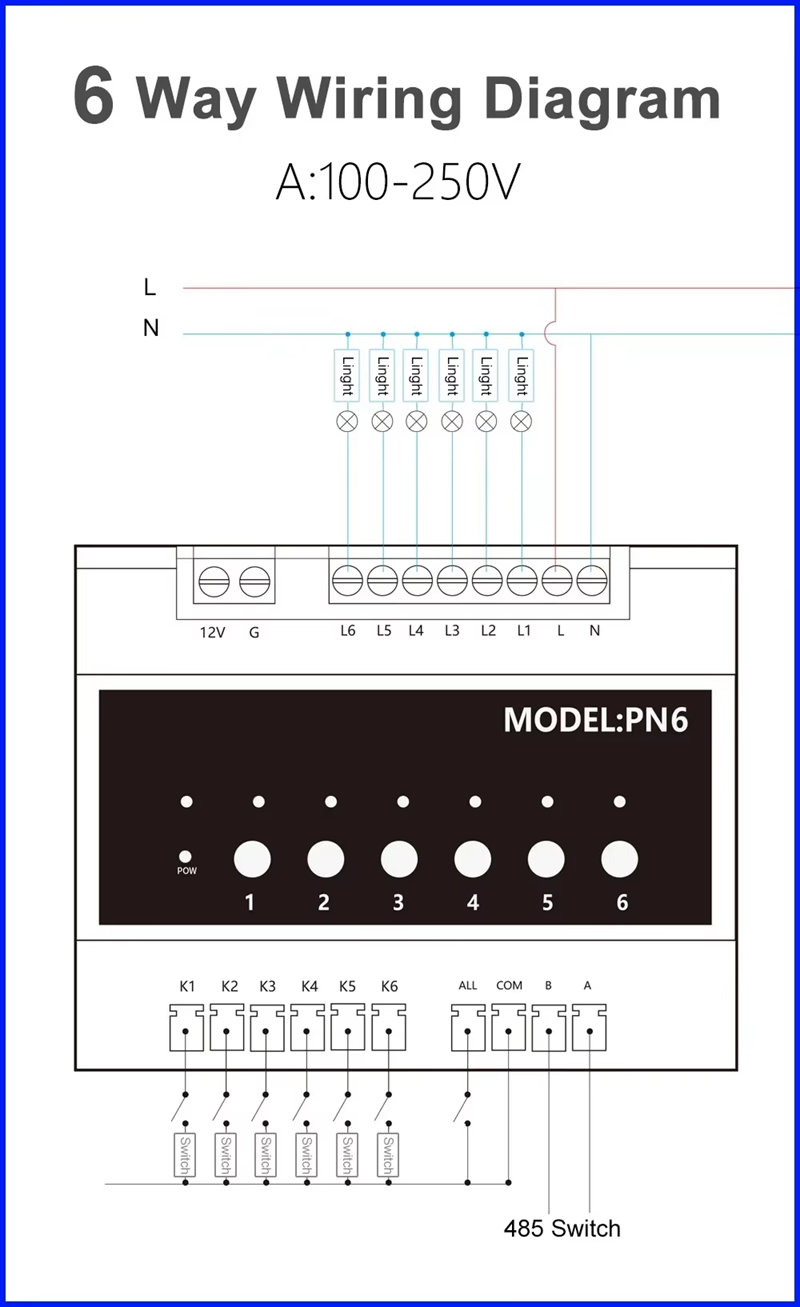

When powered by 100V-250V, L1-L6 Outputs same as the input Voltage.
Wireless Frequency: Connects to WiFi 2.4GHz Only.
Panel Material: PC.

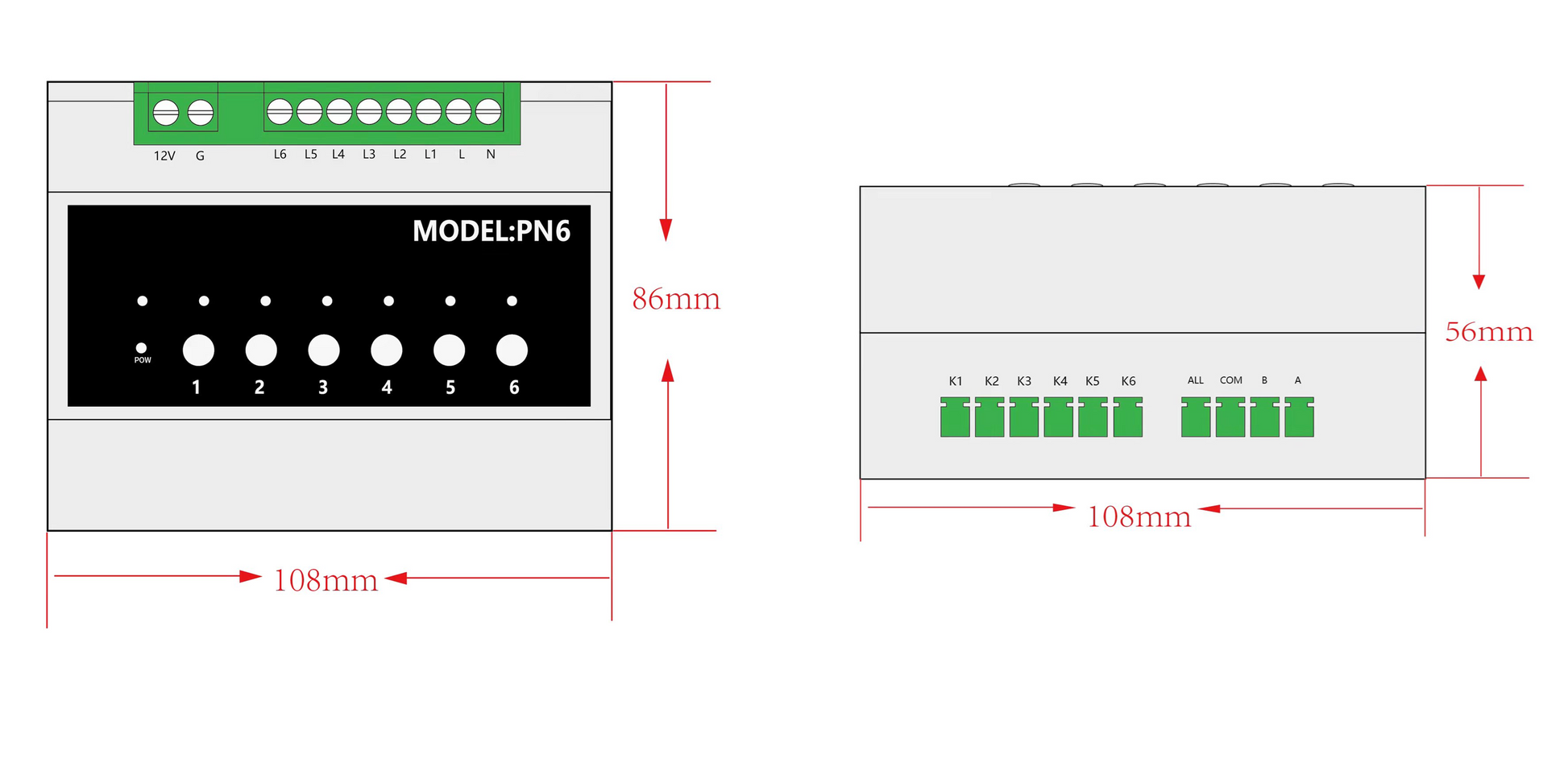

Dimensions: Box: 140 x 118 x 83mm.
Weight: 380g.

What's in the Package;
1 x Smart Life Tuya WIFI 6CH Switch Relay | 12V / 24V | 100V-250V 16A 3000W.

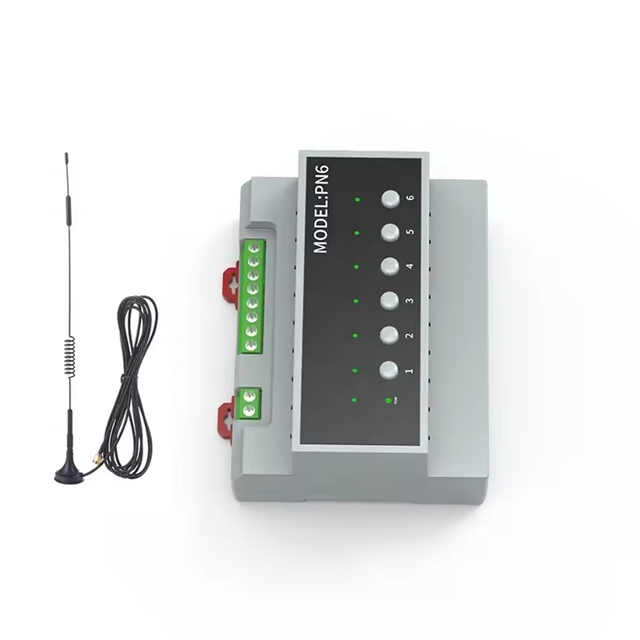

1 X External Antenna.
1 x User Manual
