Smart Life Tuya WIFI Gate Garage Door Opener Mini Switch Inching Relay w/ Contact Sensor | 240V

Welcome to Smart Home Automation.

The smart switch provides you with the perfect intelligent control of your Smart Home or workplace. Open your Gate Motor or Garage Motor from anywhere in the world.

This Basic Gate / Garage Door Opener is used to open or close your Gate / Garage Door from your Mobile Smartphone via the Tuya/ Smart Life App.

All you need is Our Smart Home Devices, WiFI with constant Internet, and Electricity to power the Device and your Lights. Some of Our Devices are Battery Powered so you don't have to worry about messy cables or the need to run cables.

Features;
Open your Gate Motor or Garage Motor from anywhere in the world.
Set a schedule or a Countdown Timer of when your Gate Motor or Garage Motor should open or close.
Syncs from Tuya or Smartlife app to Google Home and Alexa app for Voice Control.
Get alerted via Notification on your Mobile Smartphone within seconds if your Gate Open or Closes

In-App Features;

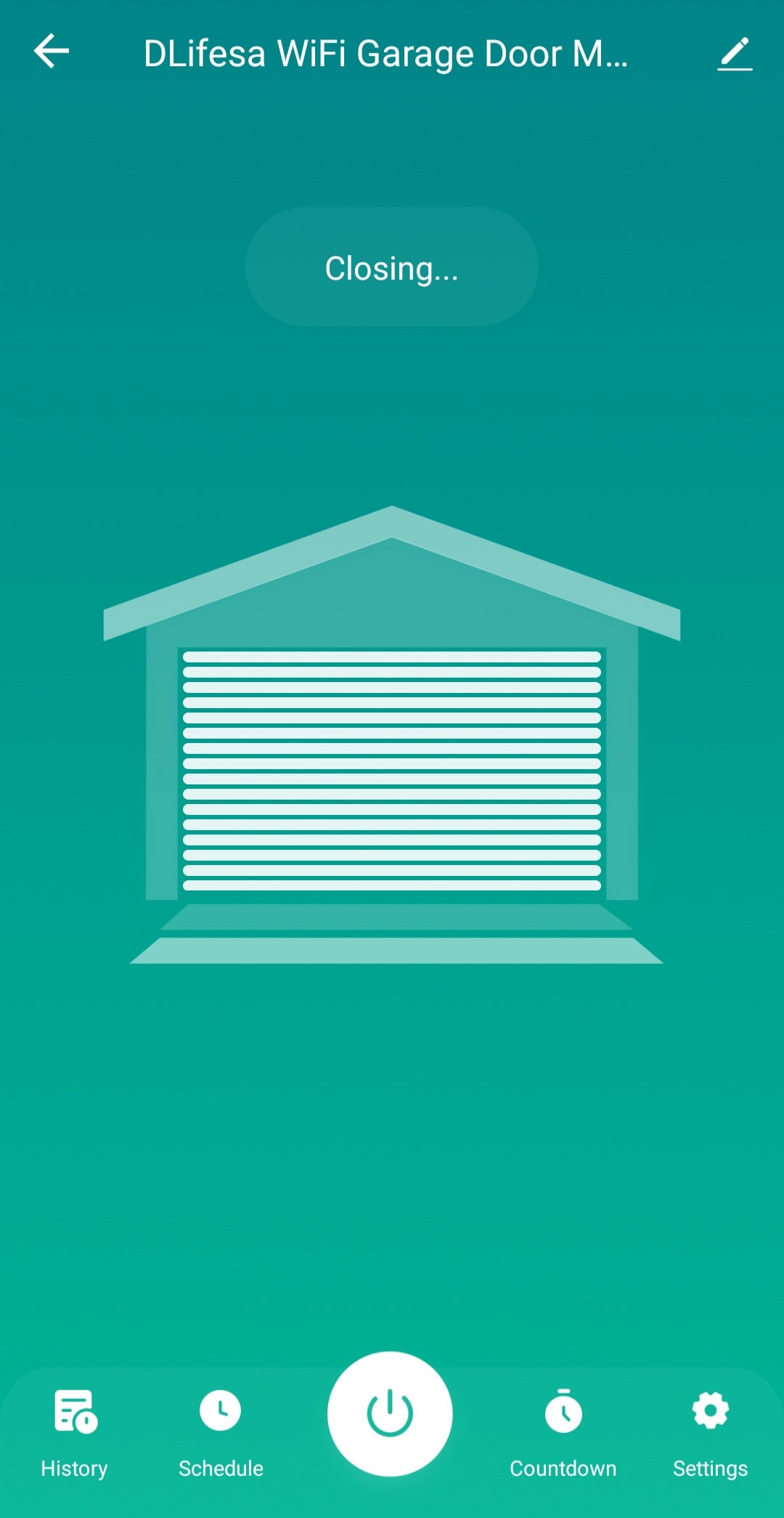

Live view of a Garage door that shows if the Garage or Gate is opened or closed.
Power button to Open or Close the Garage or Gate.

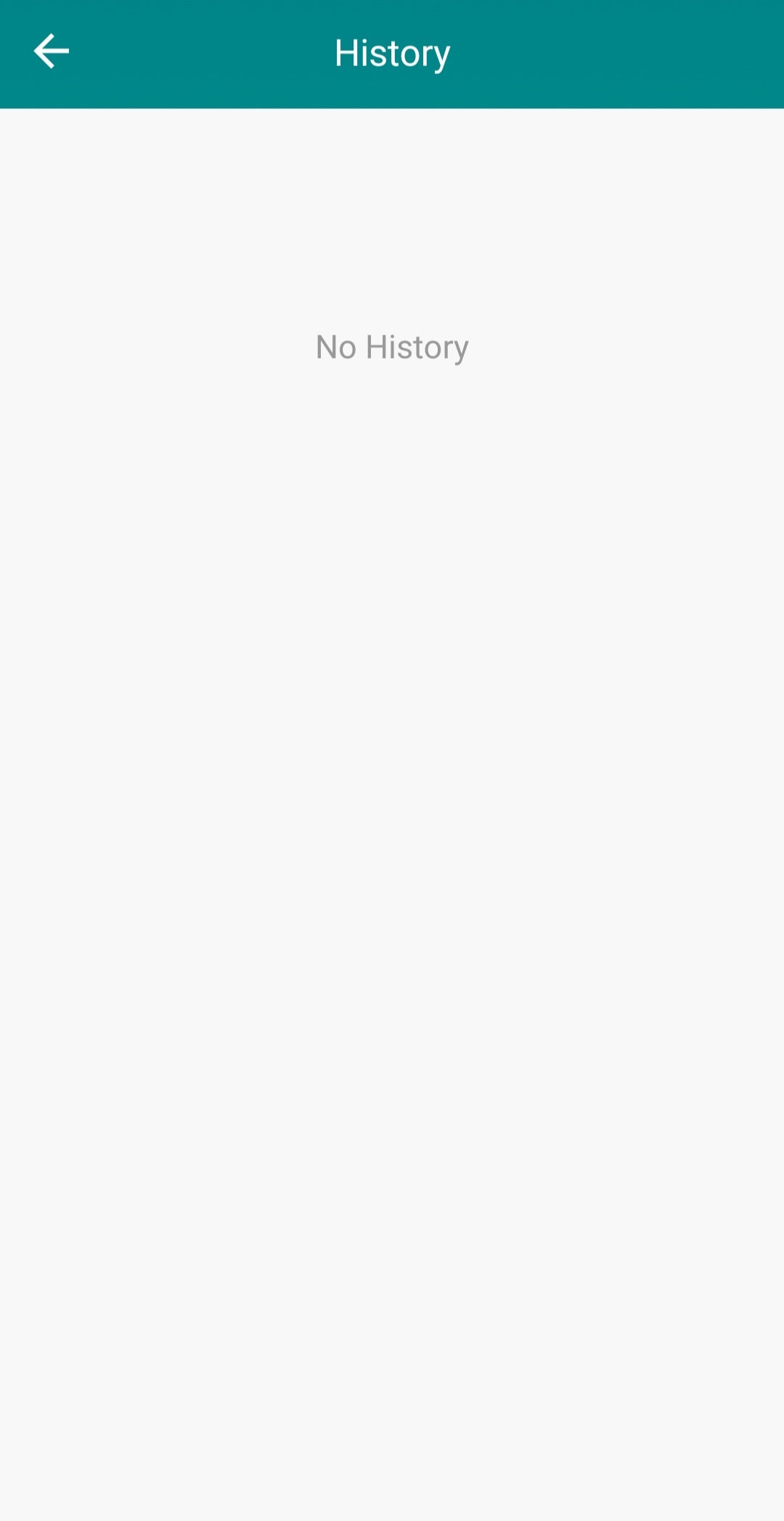

History: Records Open and Close Date and Time.

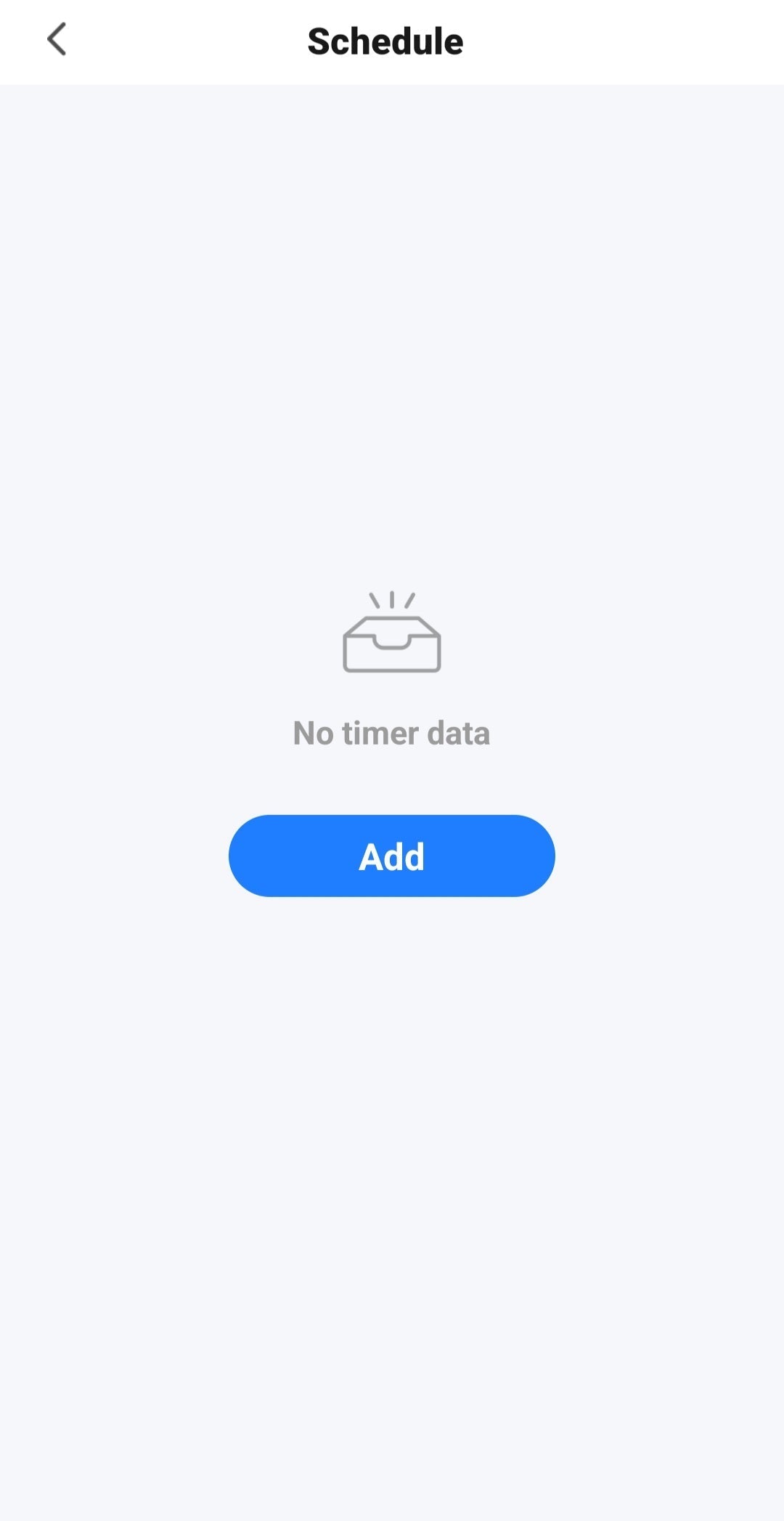

Schedule: Set a Schedule to Open or Close.

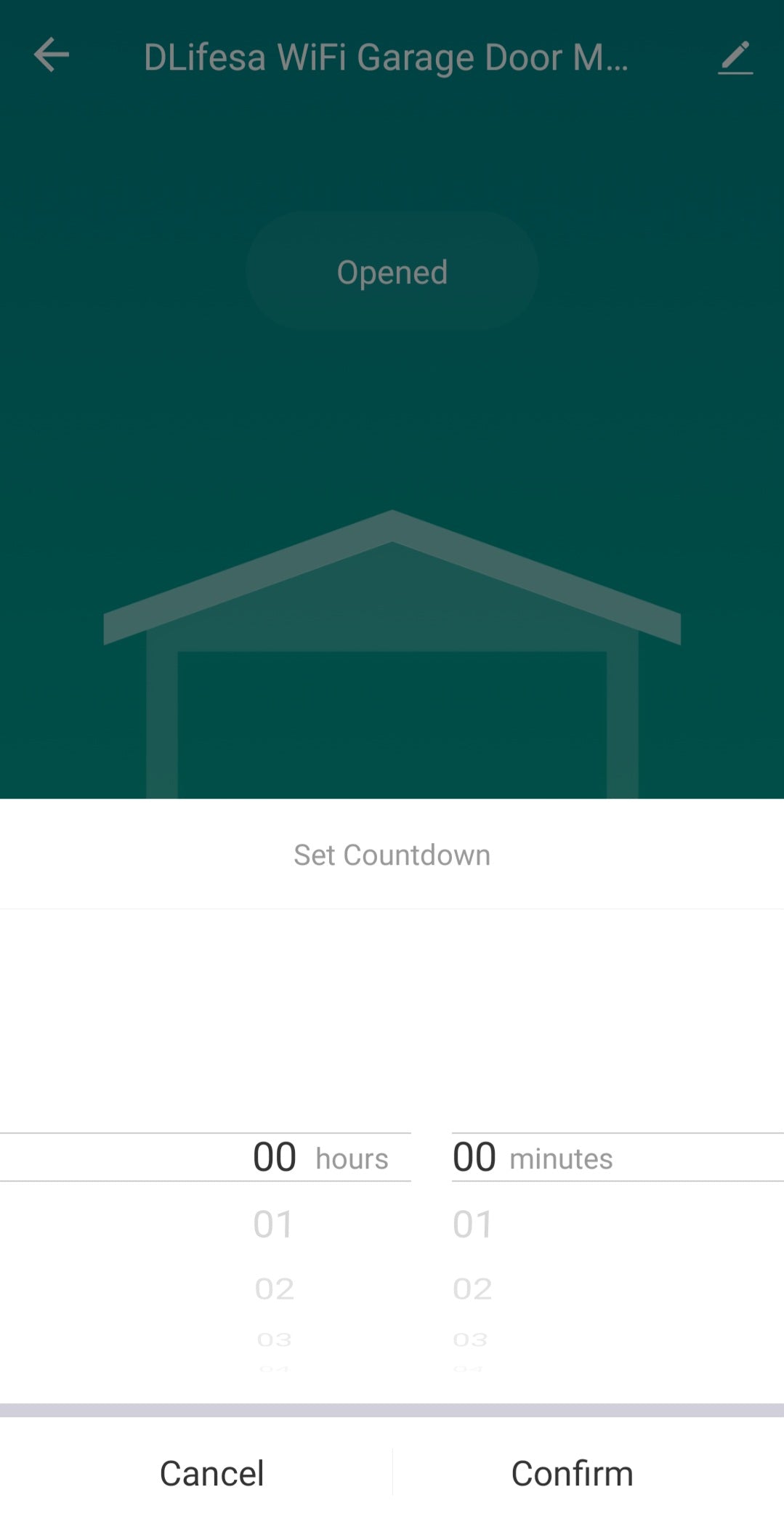

Countdown: Set to close after a certain time.

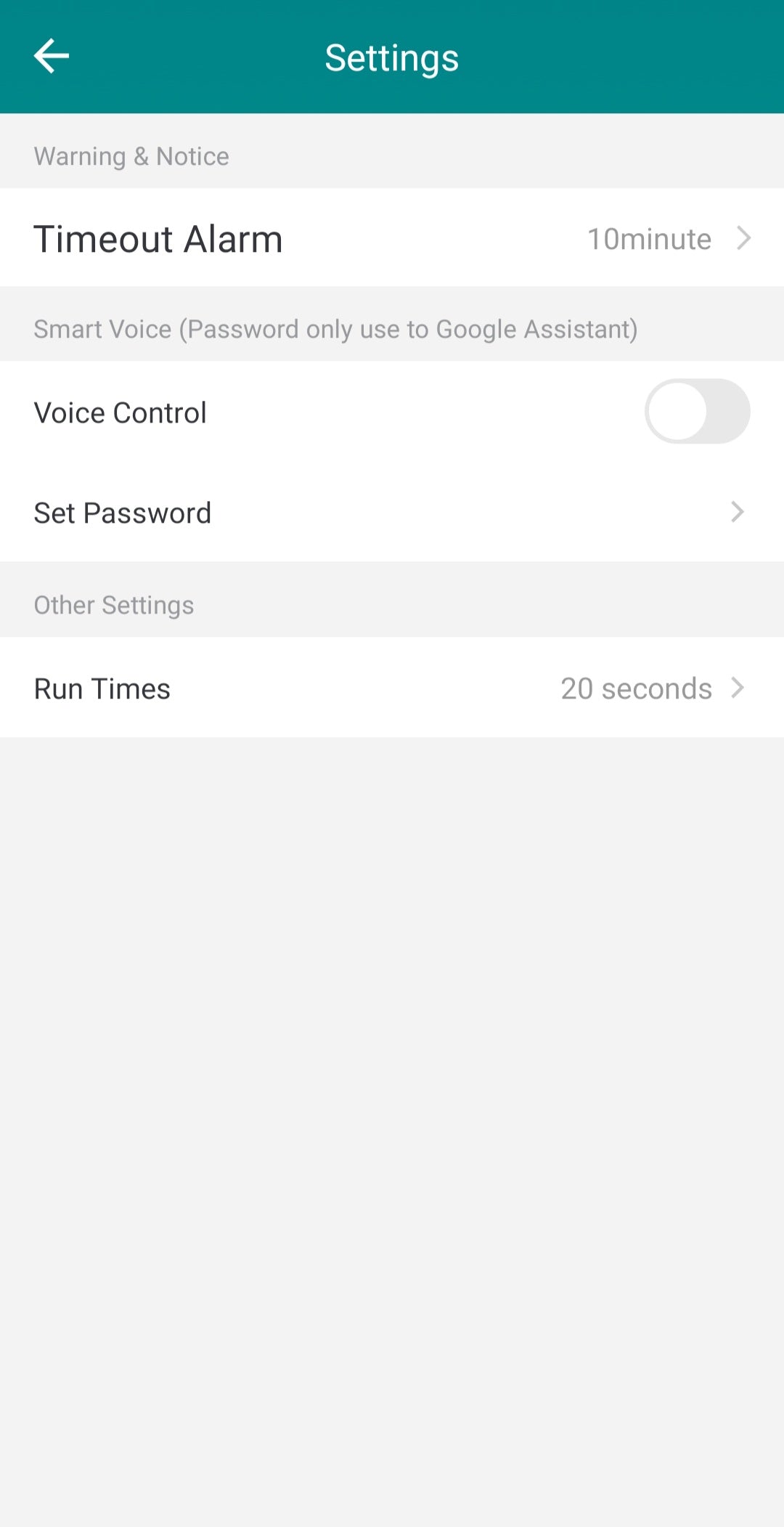

Settings: Timeout Alarm | Voice Control and password | Run Time (Relay Open time).

Specifications;
Electrical Voltage:  100V-240V AC.
Can be used for Gate Motors, Garage motors, etc.

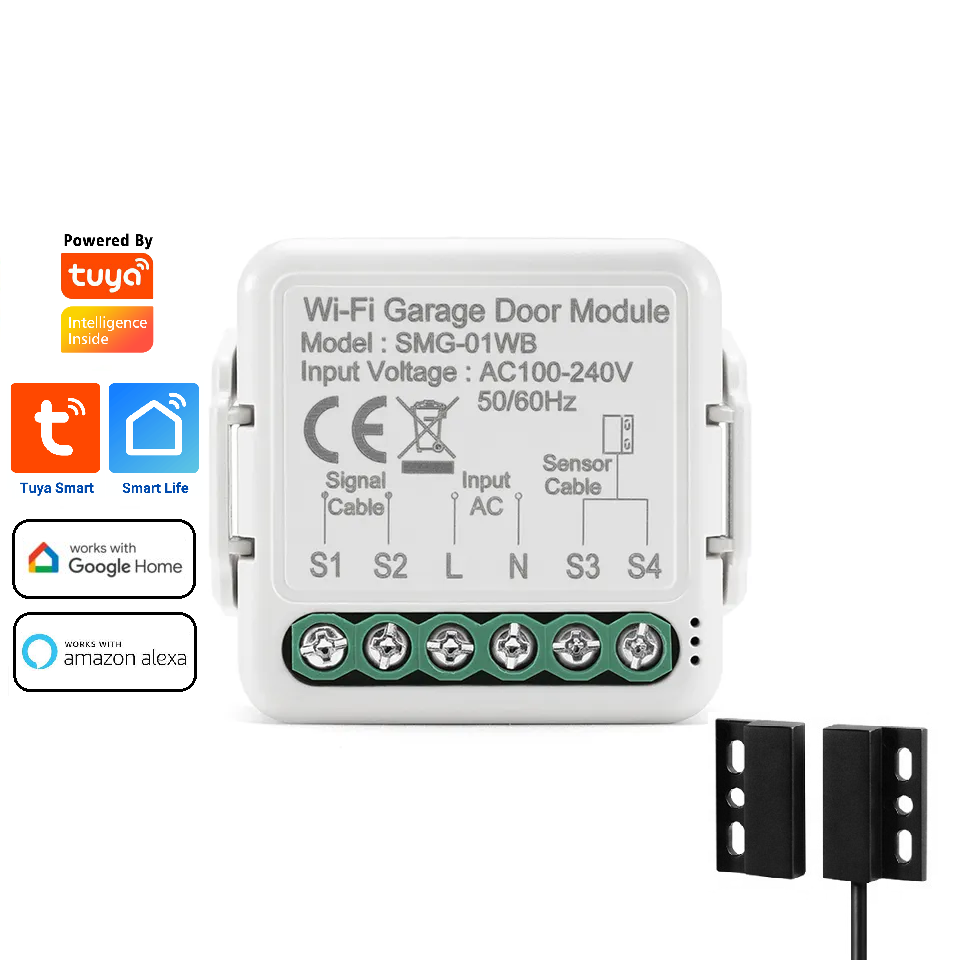

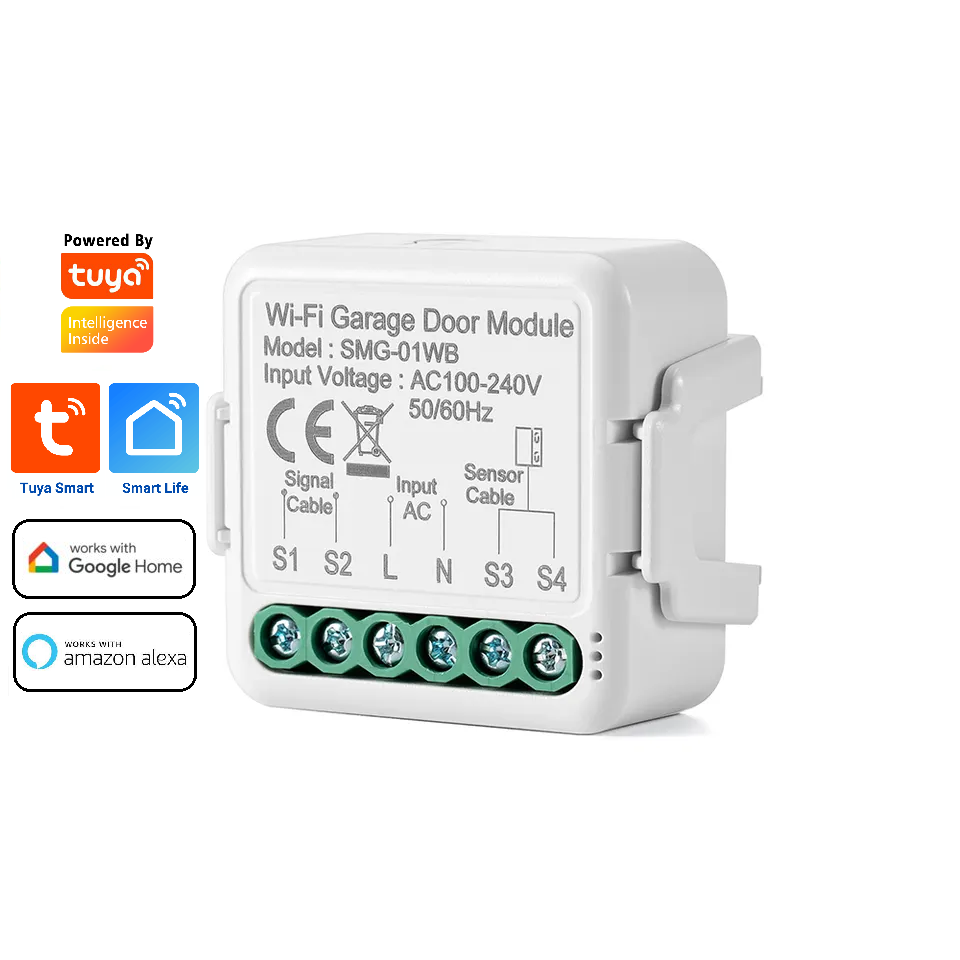

Will connect to 100V-240V AC input L (Live) and N (Neutral) to power up the unit and Signal Cable connected to PB (Push Button) / BT (Button Trigger) and COM on your Motor Circuit Board. Sensor Cable will connect to the included Contact Sensor which will show if the Garage Door or Gate is Open or Closed (Note the in-app picture displays as a Garage door).
Wireless Frequency: WiFi Standards IEEE 802.11 b/n/g on the 2.4G Hz Only.
Color: White.
Dimensions: Box 154 x 104 x 43mm
Weight: 0.23kg.

What's in the Package;
1 x WIFI Gate / Garage Door Opener Mini Switch 100V-240V Module.
1 x Contact Sensor with 5 meter Cable and Set of Screws.
1 x Signal Live and Neutral cable 50cm.

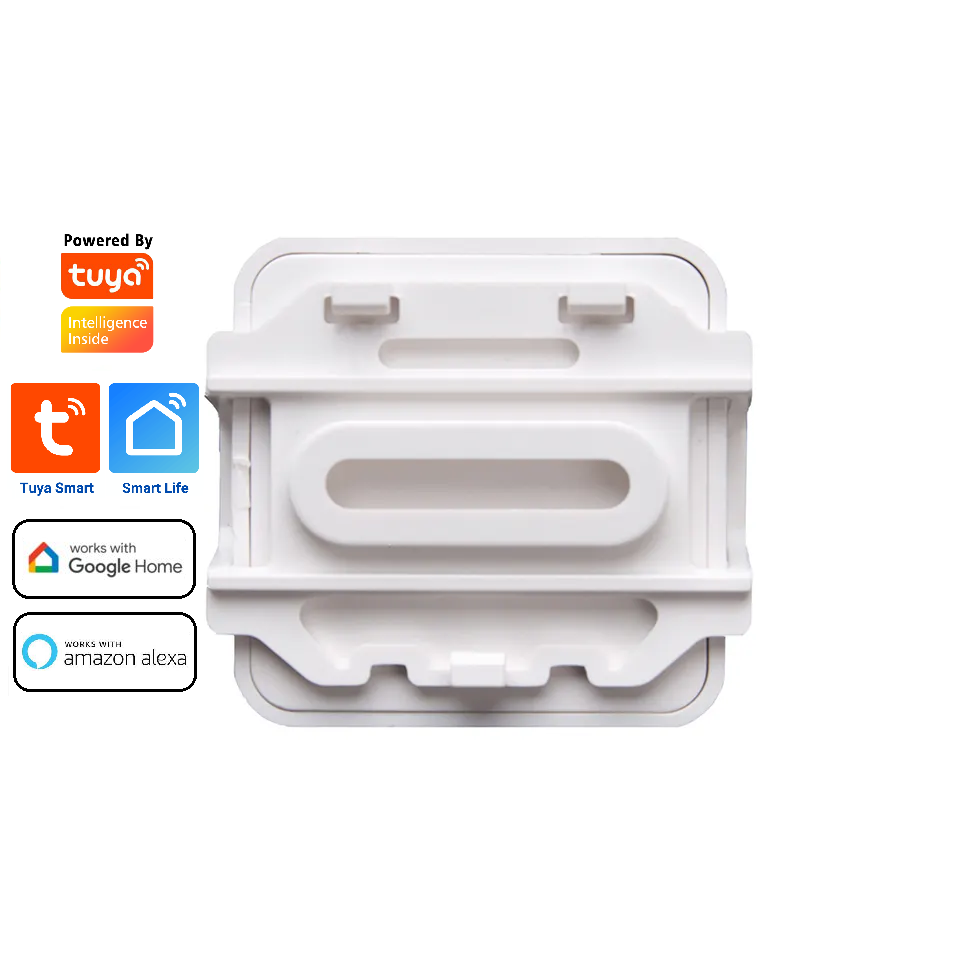

1 x Mounting Bracket with Screws.
1 x Set of Cable Ties.
1 x User Manual.

Can connect Directly to the BT (Button Trigger) or PB (Push Button) slots to existing 12V Doors, Gate Motors, Garage motors, etc.

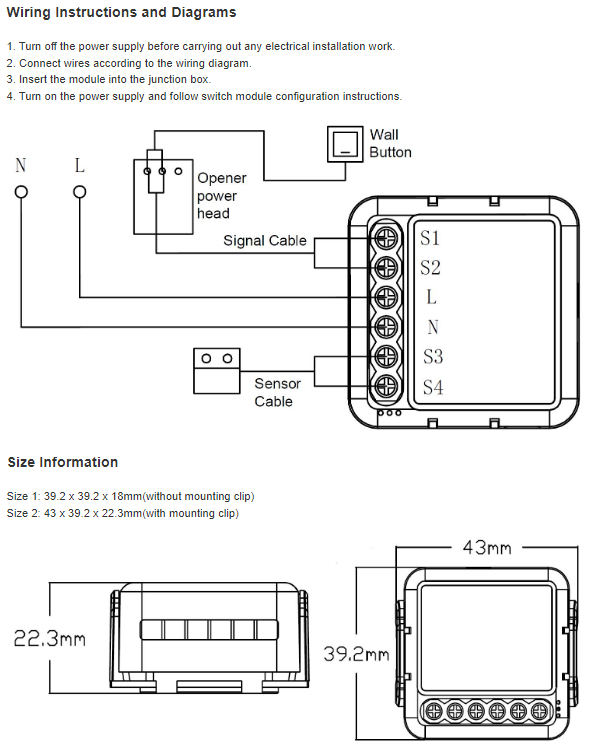

*Please note the wire connection is Live + Neutral in. Please also see the Wiring diagrams as per the picture*
