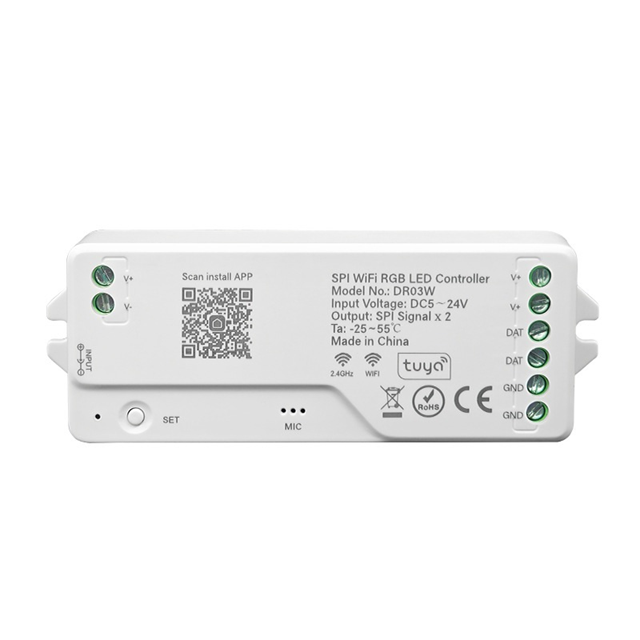

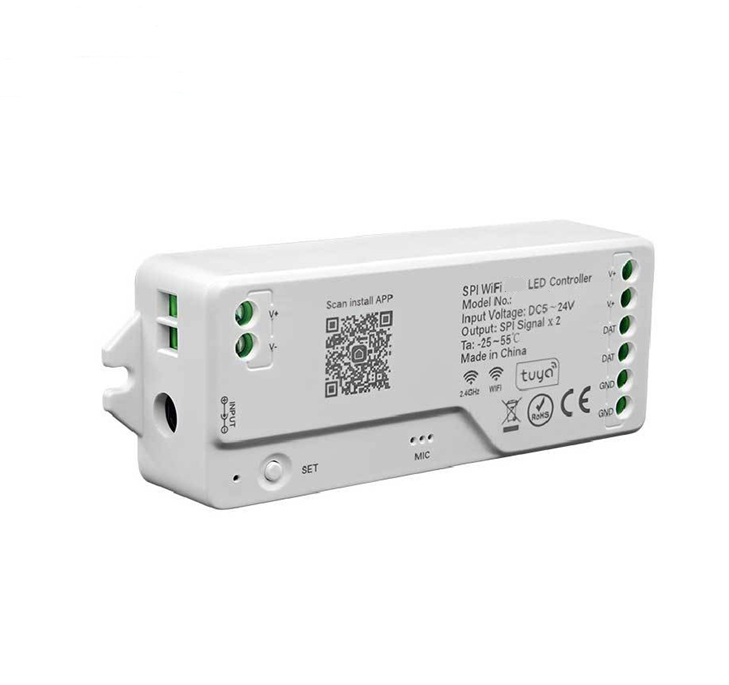

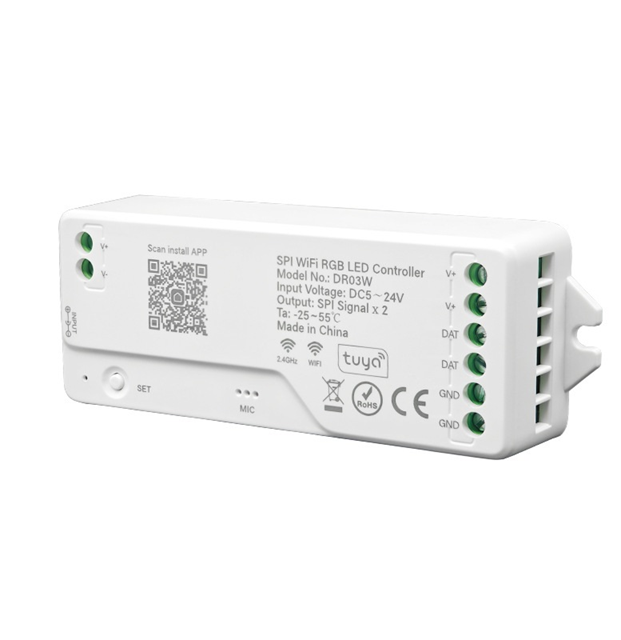

Smart Life Tuya WIFI LED Strip Light Controller | SPI | RGBIC | DC 5-24V

Welcome to Smart Home Automation.

Our WiFi RGBIC LED Strip Controller is perfect for controlling your RGBIC Lighting in your home or for a special occasion.  Can be used for New Year's Day, Halloween, Thanksgiving, Christmas, Valentine's Day, and any sort of Decoration.

It can also trigger automation at the same time as per the scenarios below. For use in Homes, Schools, businesses, warehouses, restaurants, hospitals, etc. Turn your Light ON/ OFF anytime from anywhere in the world.

All you need is Our Smart Home Devices, WiFI with constant Internet, and Electricity to power the Device and your Lights. Some of Our Devices are Battery Powered so you don't have to worry about messy cables or the need to run cables.

Features;
Control your RGBIC LED Strips.
Supports DC 5-24V RGBIC LED Strips.
Supports 2.4Ghz RF Remote controller (Not Included, Sold Separately).
Smart Colour changing and Dimmable via the Tuya / Smart Life app or RF Remote.
Music Mode lights up the LED to the sound of Music.
Also Supports and works with Amazon Alexa, Google Home.

Specifications;
- Electrical Voltage: DC 5-24V | Wire Ports 12A Max | DC Jack Port 4A Max.
- LED Strip Supported: RGBIC
- Controller Type Supported: SPI / Addressable RGB LED Controller
- Max Control Pixels: 20-720 IC pixels.
- Compatible ICs: WS2811, WS2812B, WS2813, WS2815, FCOB RGB WS2811 IC, FCOB WS2812B IC, TM1934. Supports almost all common single-wire (return-to-zero) LED driver ICs.
- Output Signal: 5V SPI signal.
- LED Strip must support the Voltage you are inputting into the controller.
- Both Output Signals (DAT) are identical.
- Supports 2.4G RF wireless remotes (RC03RF / RC04RF / RC05RF / WR01RF). Sold Separately.
-  This model is optimized for RGBIC configurations. If you are trying to run RGBWIC chips (like the SK6812-RGBW or WS2814), you need the RGBWIC model instead, as this RGBIC is strictly designed for RGBIC strips. Ensure your strip matches the RGBIC architecture to prevent mixed-up color channels.
- Incompatible Strips: It cannot control traditional analog/PWM strips (such as standard 4-pin RGB or 5-pin RGBW strips that lack an integrated circuit chip.
- Wireless Frequency: Connect to WiFi 2.4GHz Only.
- Material: V-0 anti-fire PC (Plastic)
- Installation: Indoor or Outdoor. Controller is NOT Waterproof.
- Dimensions: Box: 111 x 49 x 29mm.
- Weight: 70g.

What's in the Package;
1 x Smart Life Tuya WIFI LED Strip Light Controller | SPI | RGBIC | DC 5-24V.
1 x 3M Tape.
1 x Flat Precision Screwdriver.
1 x User Manual.

Calculation Warning: Note that 1 IC chip does not always equal 1 LED. On 5V strips like the WS2812B, 1 IC drives 1 LED. However, on 12V or 24V WS2811 strips, 1 IC chip typically drives 3 or 6 LEDs at a time. Always calculate your length based on the total IC count, not the individual light count.

Voltage Warning: Input voltage must match the LED strip. A 5V power supply must be used for a 5V LED strip, a 12V power supply for a 12V LED strip, and a 24V power supply for a 24V LED strip. Connecting a 5V strip to a 12V source will instantly destroy the controller and lighting.

Network Constraint: Only supports 2.4 GHz Wi-Fi networks. 5.0 GHz Wi-Fi is strictly unsupported.

No PWM/Analog Support: This controller works only with addressable digital (SPI) strips. It cannot control traditional 4-pin or 5-pin analog/PWM strips that don't have built-in IC chips.

Remote sold separately: 2.4G RF physical remotes must be purchased separately.
