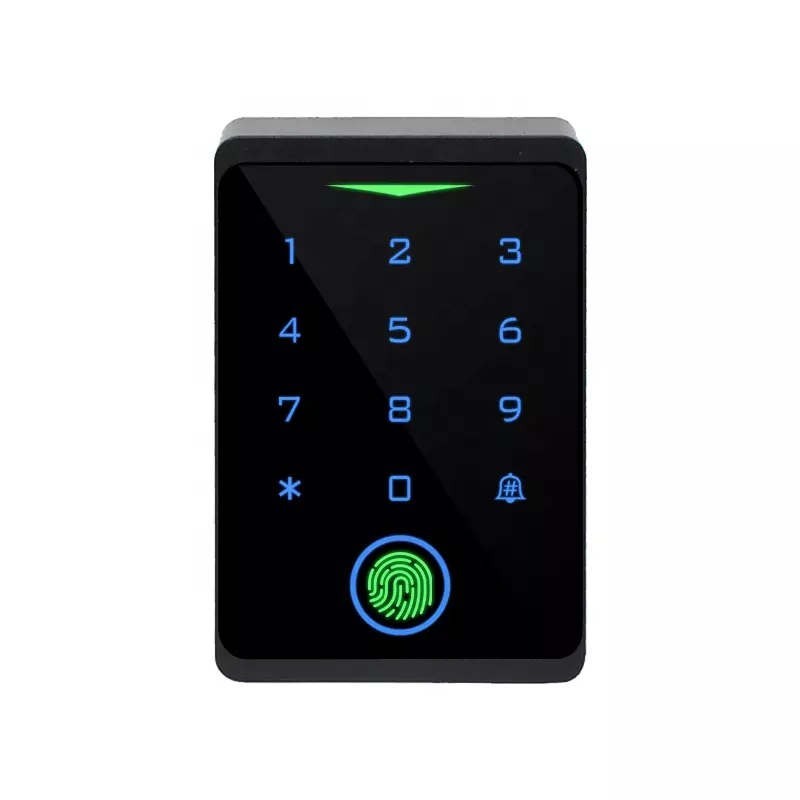

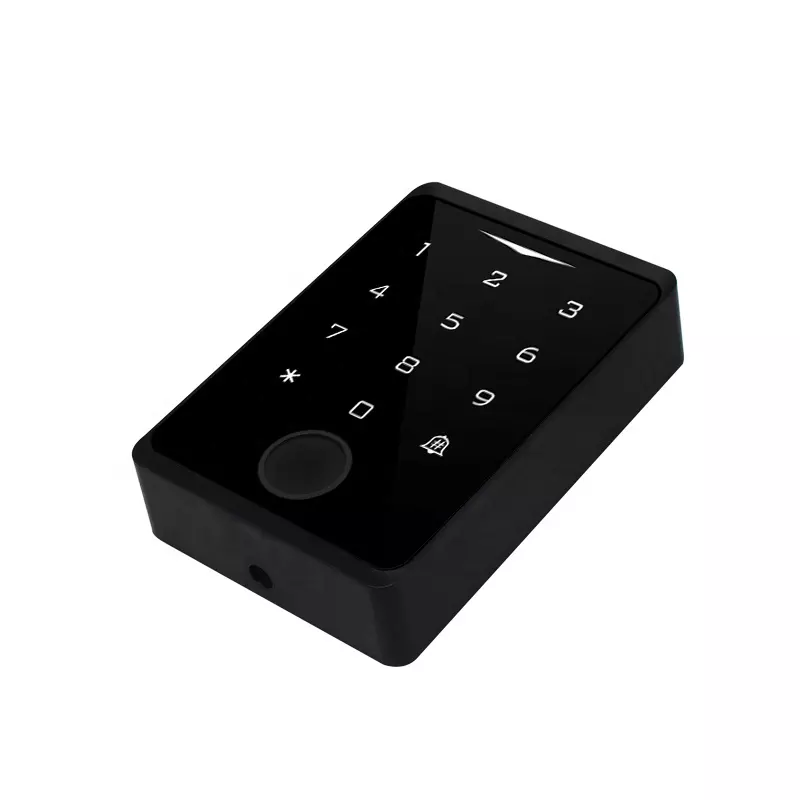

Tuya Smart Life WiFi Access Control – Fingerprint Keypad, Card Reader, Doorbell, IP66, 12V | DLCF1

Upgrade your security with the Digital Life Smart Home Automation Range. This Waterproof 12V Access Control Keypad features Fingerprint Unlock, Card Reader, Password Access, Doorbell Button, and Mobile App Control via Tuya / Smart Life app— giving you complete access control from anywhere in the world.

Perfect for Homes, Apartments, Guest Lodges, B&Bs, Airbnb, Shops, Farms, Offices, and Businesses. Supports single-door access, works as a standalone controller or Wiegand reader, and integrates seamlessly with most 12V gate motors, garage motors, and door locks.

All you need is a compatible Smart Home device, a stable WiFi connection with Internet access, and power for the Product. Some of our devices are battery-powered, eliminating messy wiring and the need to run additional cables.

Where This Product Can Be Used

This smart access keypad is ideal for any 12V DC motor‑controlled entrance. It’s suitable for:

• Residential security — main doors, pedestrian gates, driveway gates, garage doors, side entrances.

• Commercial properties — offices, shops, warehouses, staff‑only areas, delivery gates.

• Complexes & estates — apartment entrances, communal gates, security checkpoints.

• Hospitality & rentals — Airbnb units, guest lodges, B&Bs, holiday homes, rental properties.

• Industrial & agricultural sites — farm gates, workshops, machinery rooms, restricted zones.

• Outdoor installations — rain‑exposed gates, perimeter access points, garden entrances.

It can be installed anywhere you need secure, smart, remote‑controlled access using a 12V DC Door, gate, or garage motor — at homes, businesses, farms, complexes, rentals, and outdoor entrances.

Key Features

• Supports up to 1000 users

  • 100 Fingerprints

  • 888 Card / Password users

  • 10 Visitor users

  • 2 Panic users

• Unlock via Fingerprint, Password, Card, or Mobile App

• Touchscreen keypad with LED backlighting

• Doorbell button built into the keypad

• Password length: 4-6 digits

• Password Peeping Prevention (random digits before/after your code)

• Built-in LDR Anti-Tamper Sensor

• Works as Standalone Access Control or Wiegand Input/Output Reader

• Receive instant notifications for unlocks or failed attempts

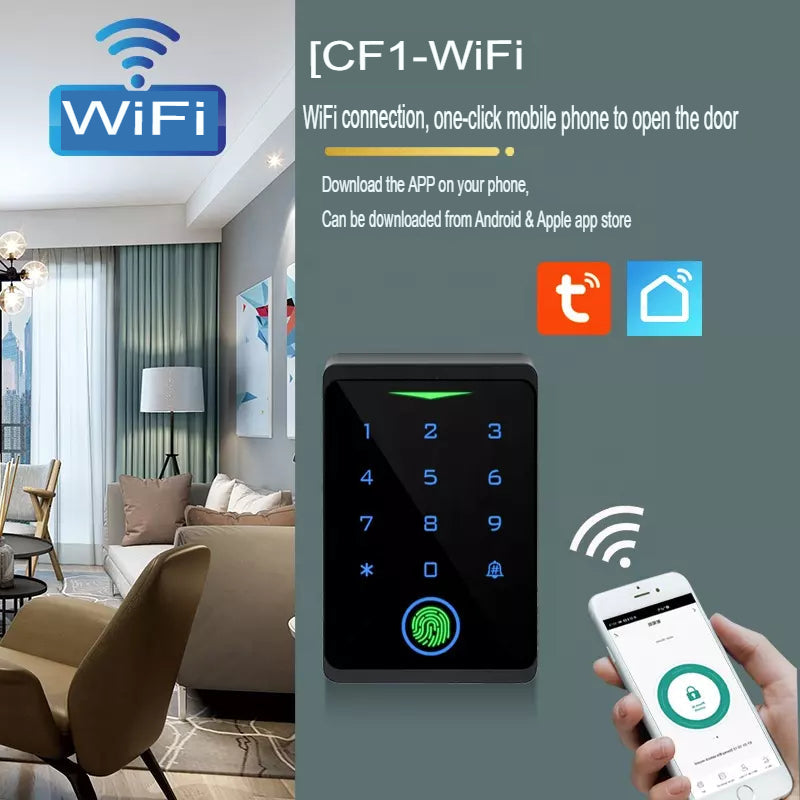

• Remote unlocking from anywhere in the world

• IP66 Waterproof — suitable for indoor or outdoor installation


In-App Features (Tuya / Smart Life)

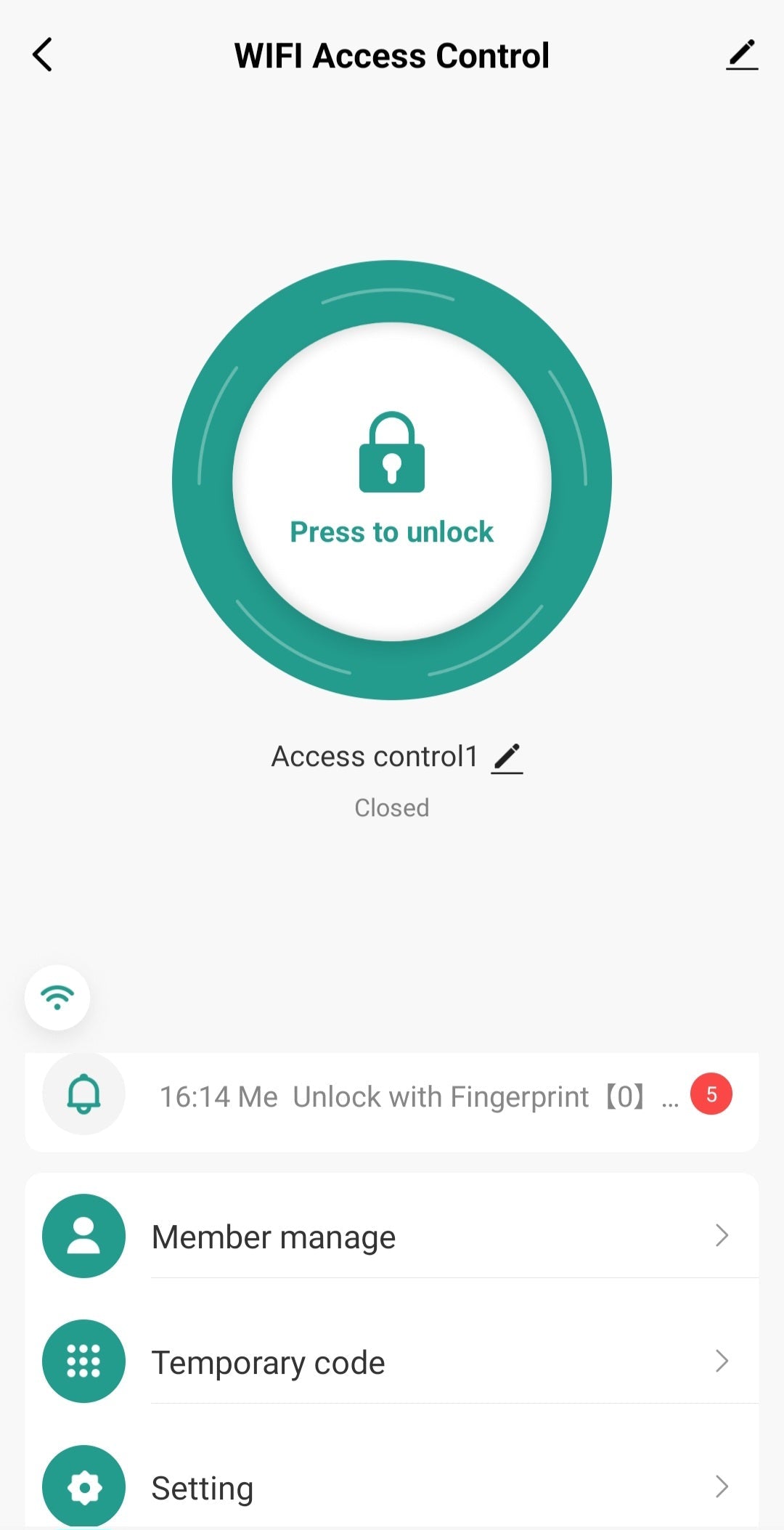

• Tap & Hold to Unlock

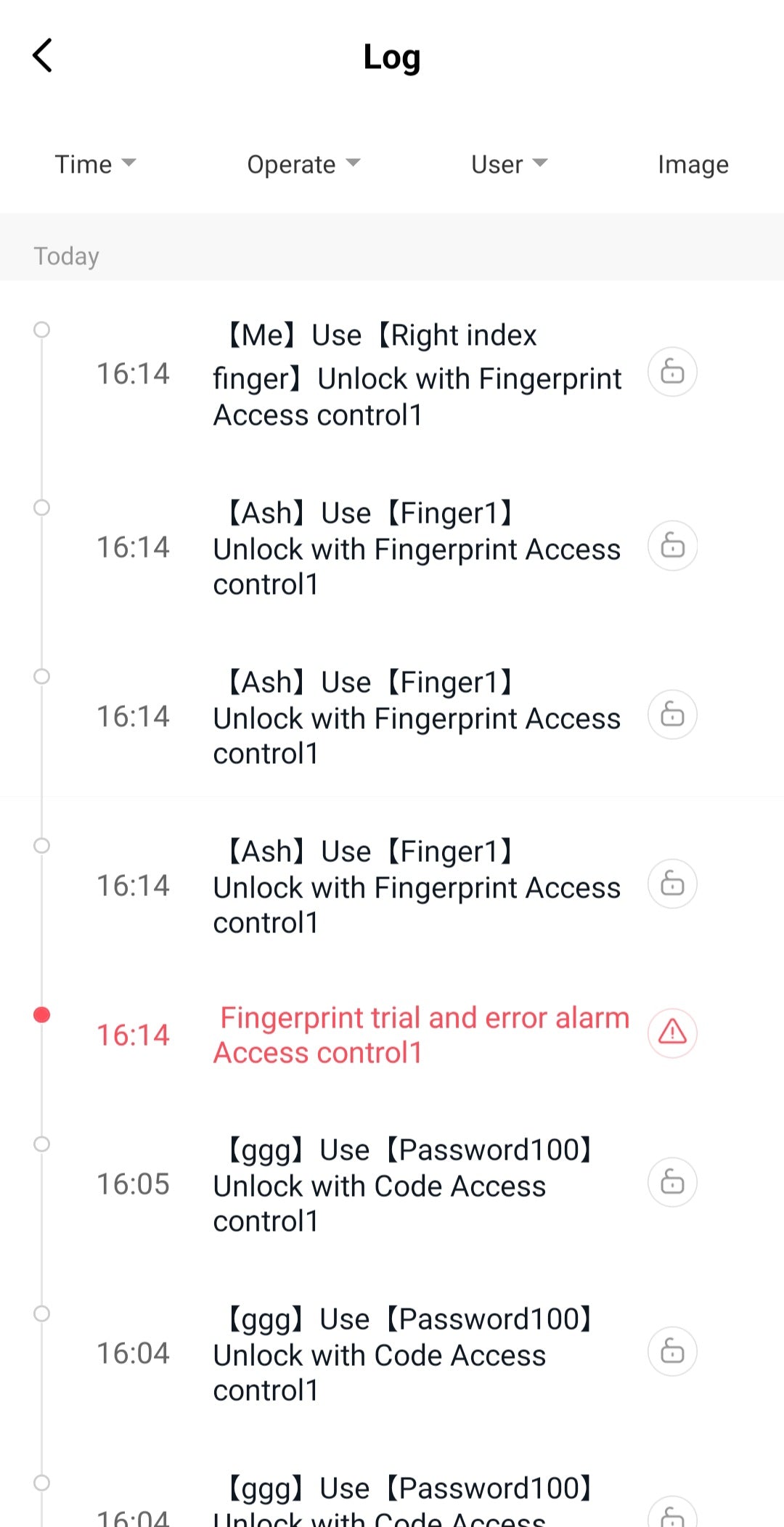

• Activity Logs: user, date, time, failed attempts

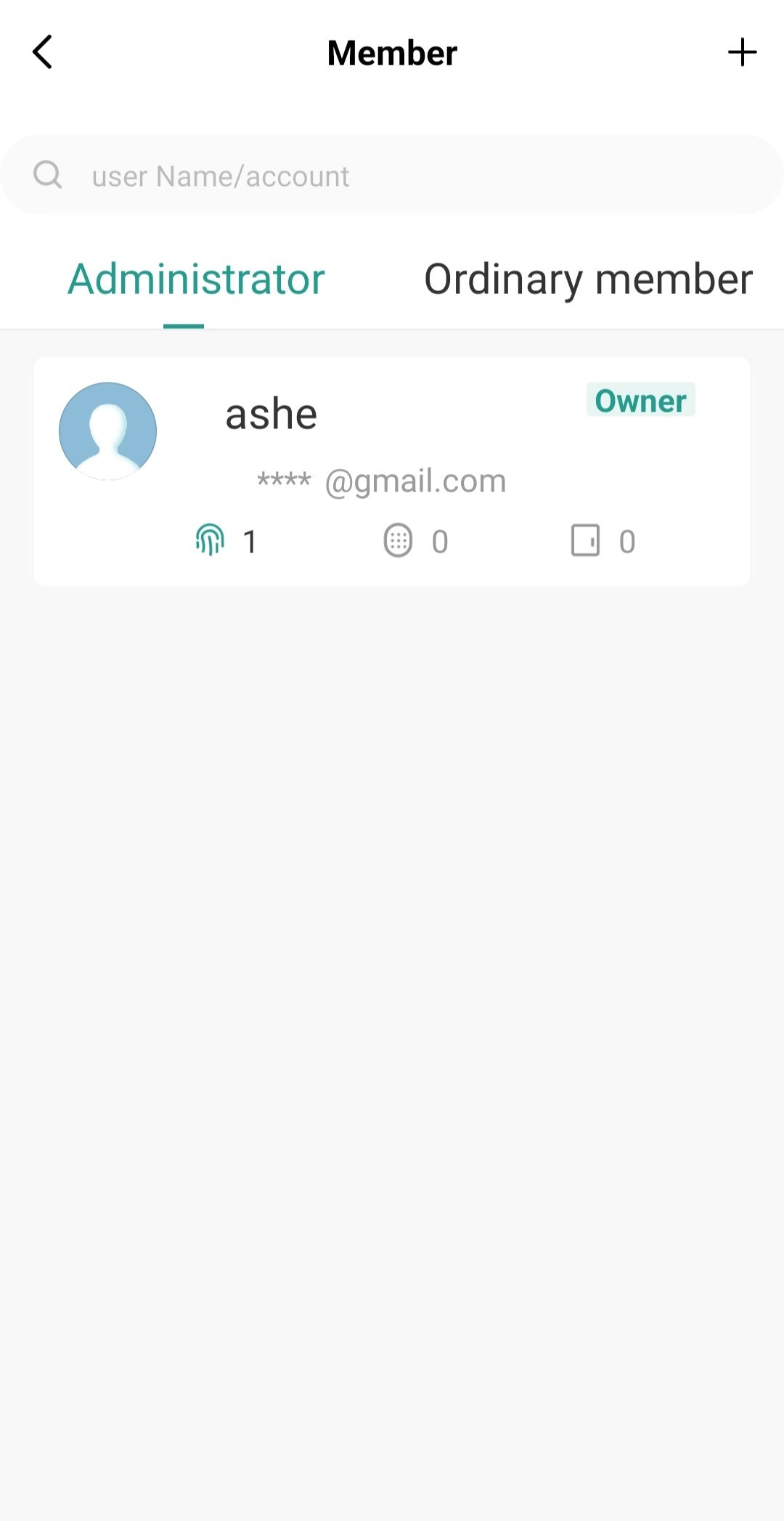

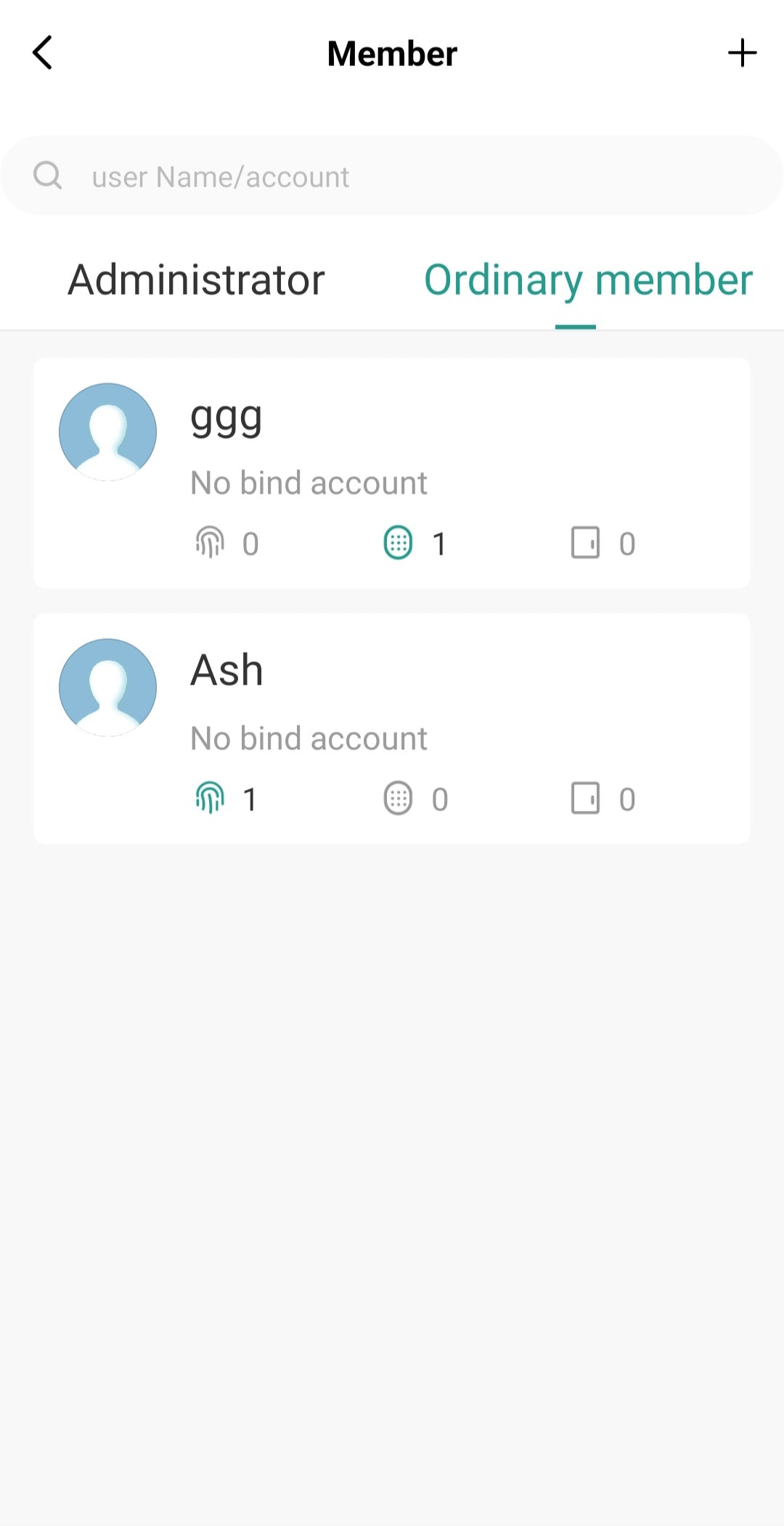

• Member Management

  • Administrator & Ordinary Member roles

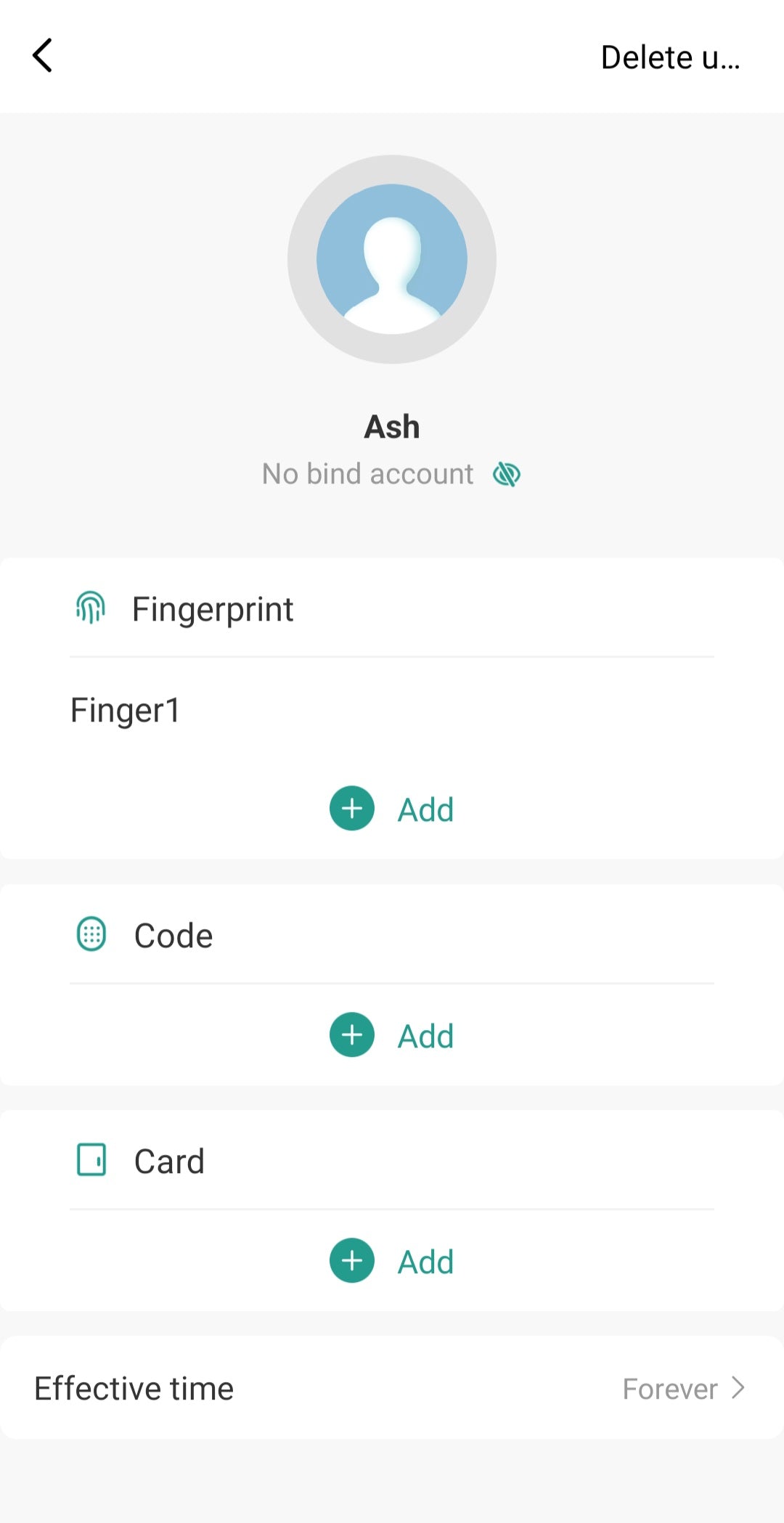

  • Add multiple fingerprints, cards, and codes per user

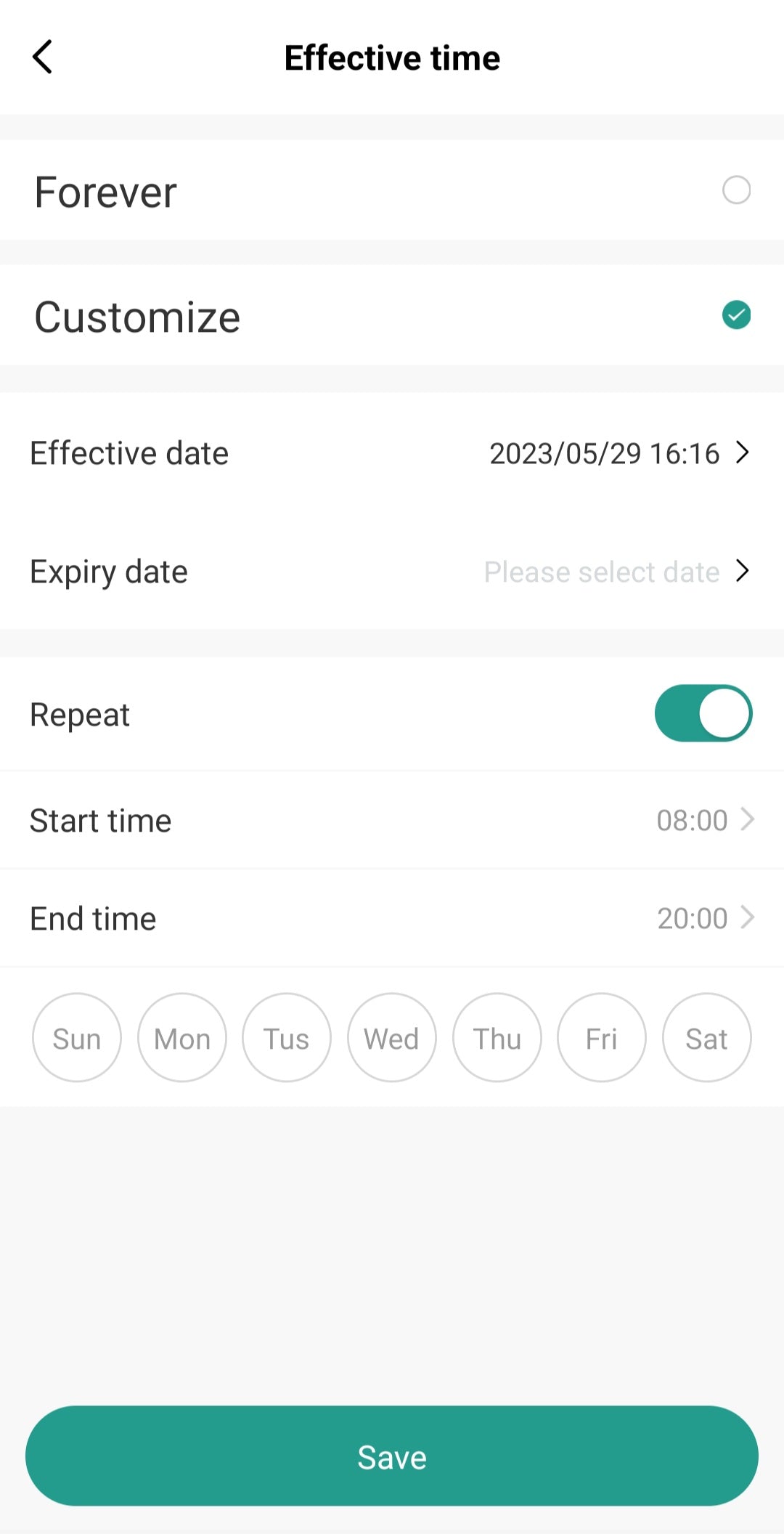

  • Set effective dates, expiry dates, and repeat schedules (Mon-Sun, start/end times)

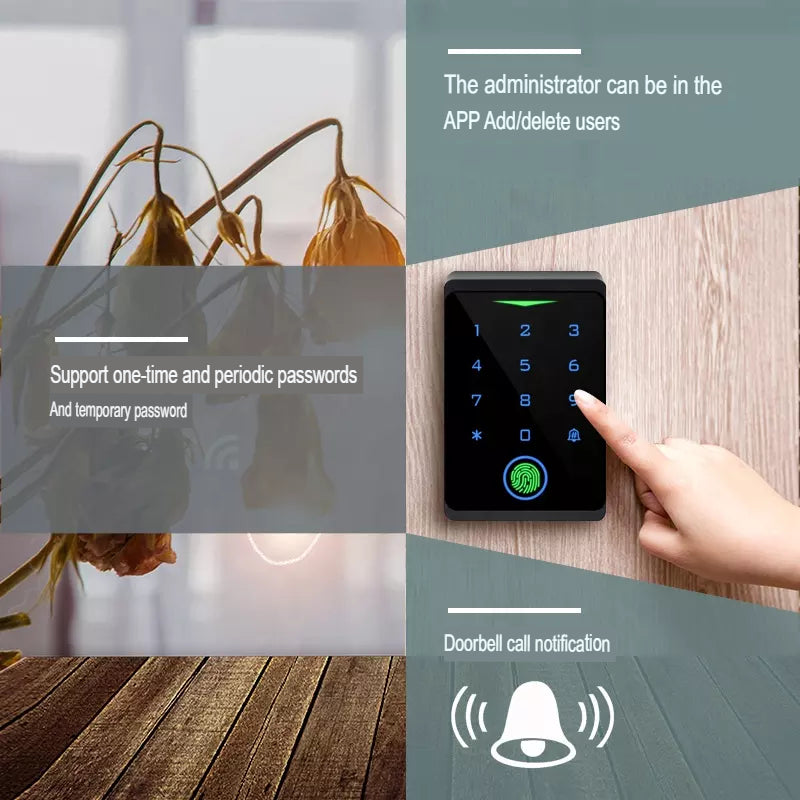

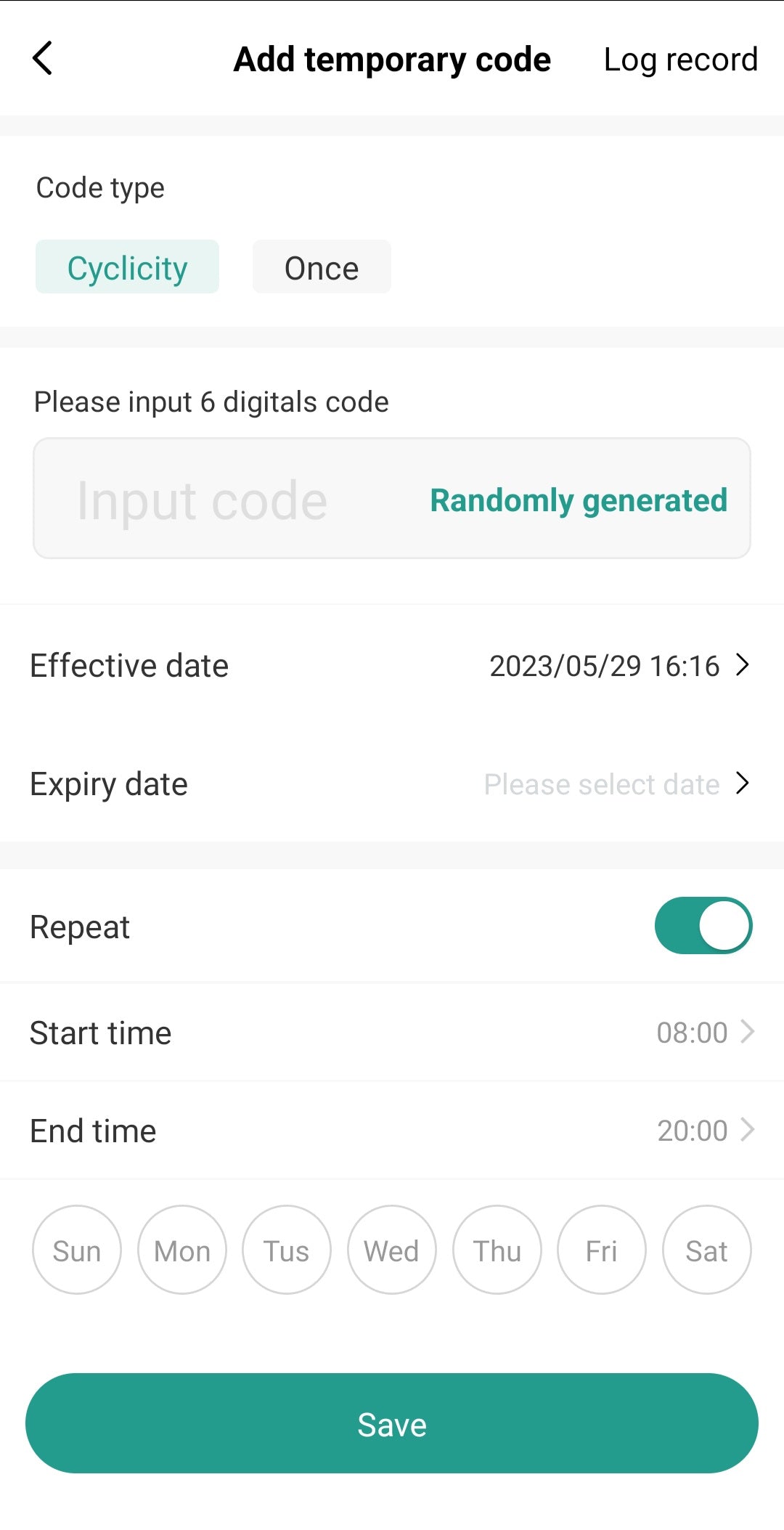

• Temporary Codes

  • Cyclic temporary 6-digit codes with schedules

  • Once-off offline 10-digit code (valid 6 hours, single use)

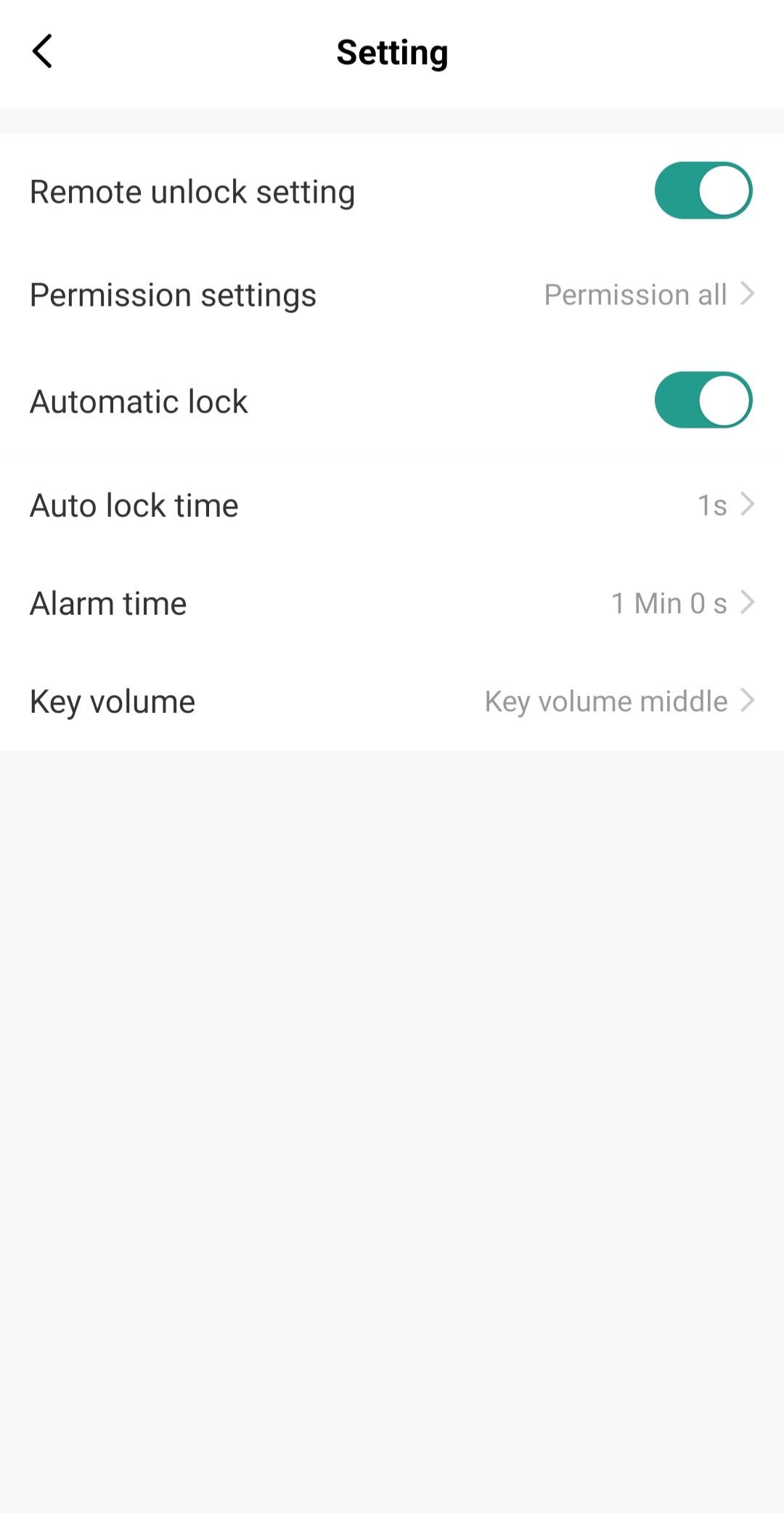

• Settings

  • Remote unlock permissions (Admin only or all users)

  • Automatic unlock

  • Auto unlock time: 1-100 seconds

  • Alarm time: 1-180 seconds

  • Key volume adjustment

Specifications

• Power Input: DC 12V-18V

  • Requires 12V-18V DC power supply (not compatible with 12V-18V AC)

• Working Current: 150mA

• Idle Current: 60mA

• Relay Output: 2A max (NO / COM / NC)

• Supports: Exit Button, Alarm, Door Contact, Wiegand Input & Output

• Readers:

  • Fingerprint

  • Touchscreen Keypad

  • Card Reader (125KHz EM ID)

• Wireless: Connects only to a 2.4 GHz Wi-Fi SSID.

• Material: ABS (Plastic)

• Colour: Black

• Waterproof Rating: IP66 (Fully dust-tight & Rainproof) for complete outdoor use.

• Installation: Indoor or Outdoor

• Dimensions: 128 × 97 × 59 mm

• Weight: 250g

What’s in the Box

• 1 × WiFi Waterproof 12V Access Control Fingerprint Keypad Doorbell

• 1 × IN4004 Diode

• 1 × Set of Screws

• 1 × Allen Key

• 1 × User Manual



Important Notes before Purchasing

• The purchase of this product only includes the Smart Access Control Keypad. This DOES NOT include a magnetic door lock, power supply, or exit button may be required depending on your installation.

• This device ONLY works with 12V DC power. It does NOT work with 12V AC power supplies. Connecting an AC power supply will instantly damage this product and void the warranty.

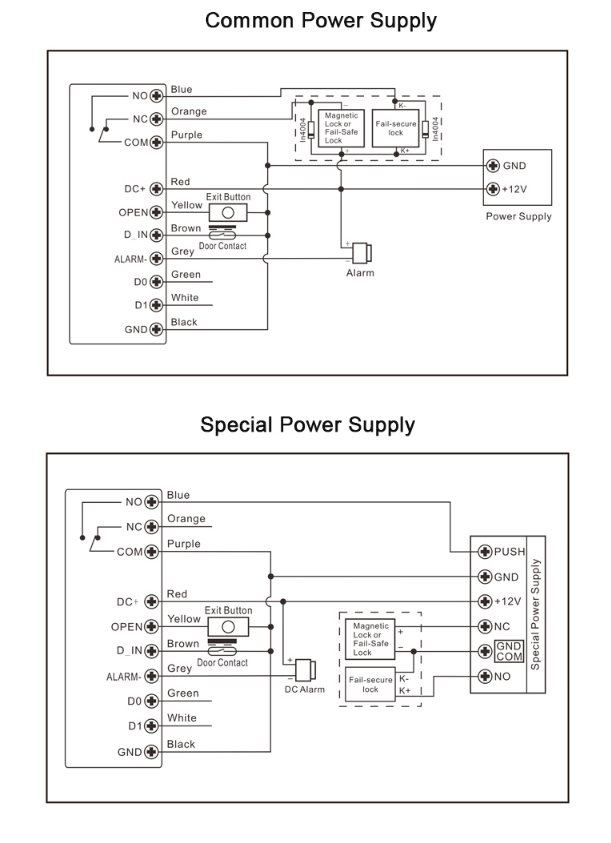

• Must be installed by a qualified Gate Automation Specialist. Please check with your installer by showing them the wiring diagram and specifications. Incorrect wiring can damage the device and void the warranty.

• A 4‑core or 8‑core low‑voltage cable is required (not included). This cable must cover the full distance from the Access Control Keypad to your Gate or Garage Motor for power and signal connections.


• Requires an excellent 2.4GHz WiFi network and signal with a constant internet connection. Does NOT support 5GHz WiFi.


• Works with most 12V gate motors, garage motors, and door locks that support PB/BT (Push Button / Trigger) input. Not compatible with systems that do not have a trigger input.


• Requires the Tuya or Smart Life app for remote unlocking and user management. A smartphone is required for setup.


• Fingerprint performance may vary if fingers are wet, dirty, or damaged. Register multiple fingerprints for best reliability.



• Please check the product dimensions before purchasing to ensure it fits your installation area.

• If you are unsure about compatibility or installation requirements, please contact us before purchasing. We are happy to assist with wiring guidance, motor compatibility checks, and setup support.

• For after‑sales support, please contact us directly — we’re here to assist with troubleshooting, wiring guidance, motor compatibility checks, and setup help to ensure your system works perfectly.



• Two versions available:

  • With Fingerprint (this model)

  • Without Fingerprint (Please view our listing)
