Smart Life Tuya Zigbee 1CH 5V or 7-32V Door Gate Garage Opener Inching Relay Module with RF433Mhz

Welcome to Smart Home Automation.

The newly designed Zigbee 1CH 5V or 7-32V Door Gate Garage Opener Inching Relay Module with RF433Mhz.

Our Relay Module is best for connecting to your existing Door Gate Garage Motor to Open/ Close or Turn Lights or Appliances ON/ OFF. Control your device from anywhere in the world.

All you need is Our Smart Home Devices, A Zigbee Hub Gateway, Wi-Fi with constant Internet, and Electricity to power the Device and your Lights. Some of Our Devices are Battery Powered so you don't have to worry about messy cables or the need to run cables.

Features;
Inching Mode (Momentary) - Once you press the Manual switch or control from the app, the relay will activate for 0.5-60 seconds (time adjustable on the app) and then release automatically. You can use it to control the Gate, Door opener, Computer, Elevator, Remote controller key, or any Momentary buttons.
Self-lock Mode - Once you press the Manual switch or control from the app, the relay will activate to keep ON or OFF normally. You can use it to control the Light, Fan, Humidifier, or other home appliances within AC 0-250V 10A 2200W Max / DC 0-30V 10A.
DC Input - If your equipment is powered by DC7-32V, then you can power up the board with the same power source. Please make sure the input current is enough.
Set a schedule or a Countdown Timer of when your Device should be turned ON/ OFF.

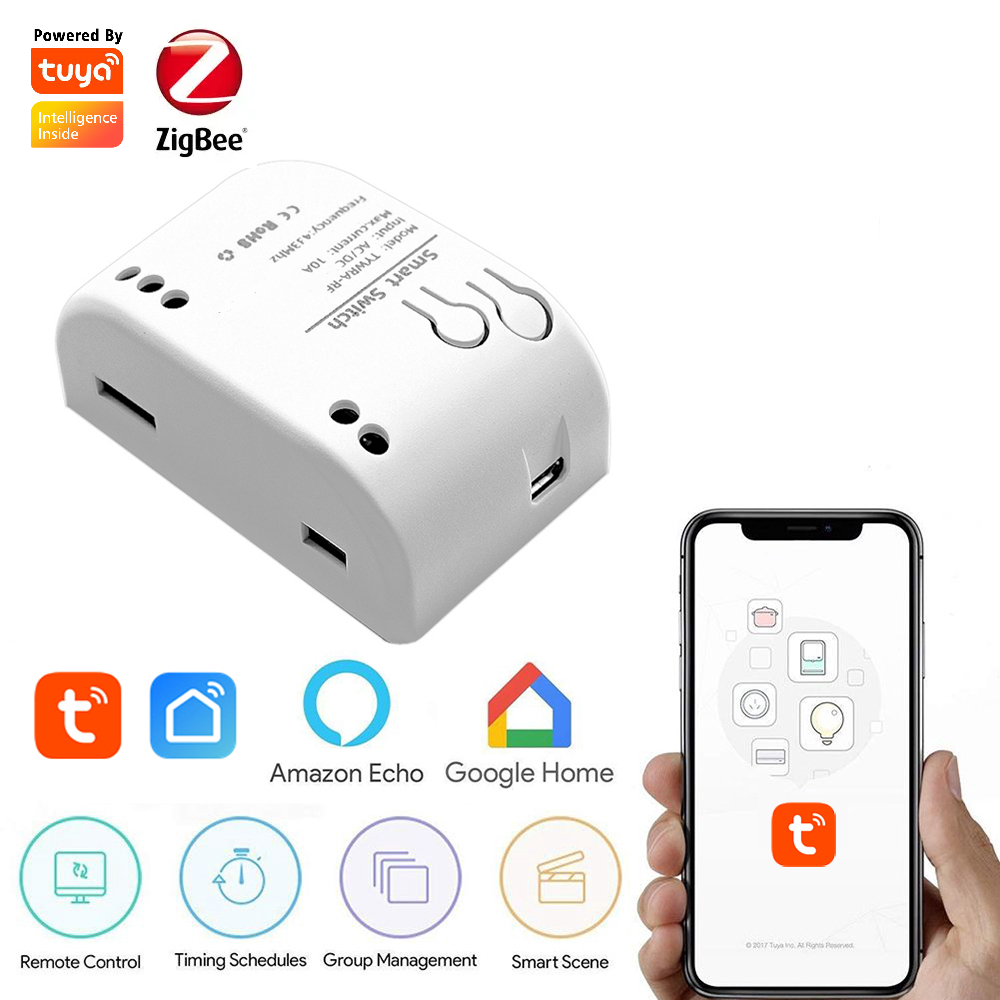

Switching mode via Tuya/ Smart Life Mobile phone App.
Supports Voice Control and Works with Amazon Alexa, and Google Home.
Get alerted via Notification on your Mobile Smartphone within seconds.

Specifications;
Electrical Voltage:  DC7-32V or 5V Micro USB Port.
Relay Opening time: 0.7 seconds
Relay Load: 250V/ 10A 2200W Max.
Wireless Frequency: Zigbee | RF433Mhz.
Panel Material: Circuit Board.

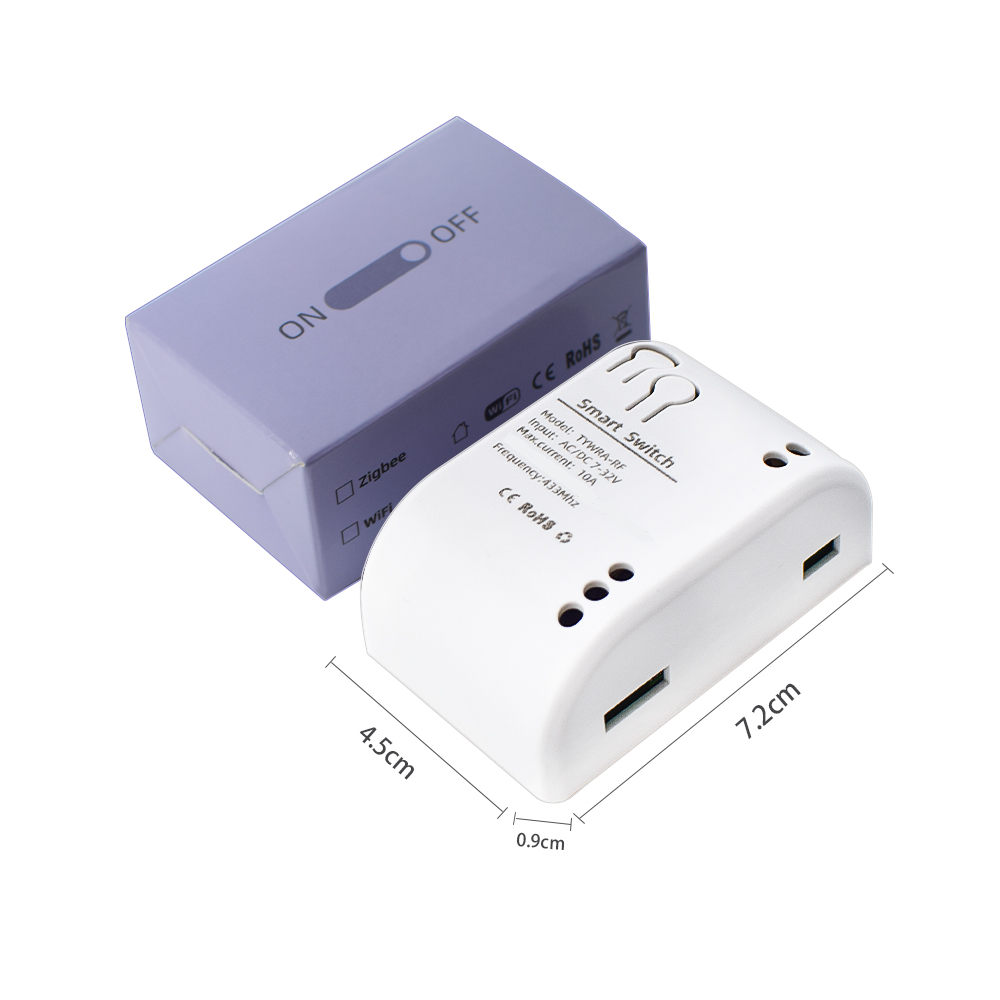

Dimensions: Box: 74 x 48 x 34mm.
Weight: 0.06kg.

What's in the Package;
1 x Zigbee 1CH 5V or 7-32V Door Gate Garage Opener Inching Relay Module with RF433Mhz.
1 x User Manual

*Please note the power input is only for the PCB Powering. The relays are Dry-contact switches without voltage output.*

*Please note that a Zigbee Hub/ Gateway is needed for this product to work correctly as this product connects to the Zigbee Hub/ Gateway and the Zigbee Hub/ Gateway connects to the Tuya/ SmartLife app to the Internet. Zigbee Hub/ Gateway is available separately for purchase.*
