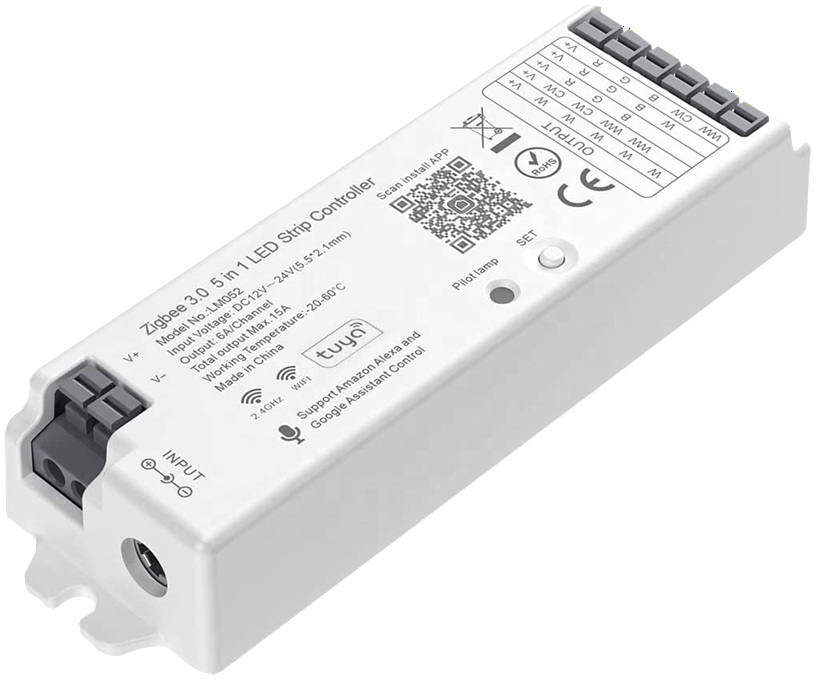

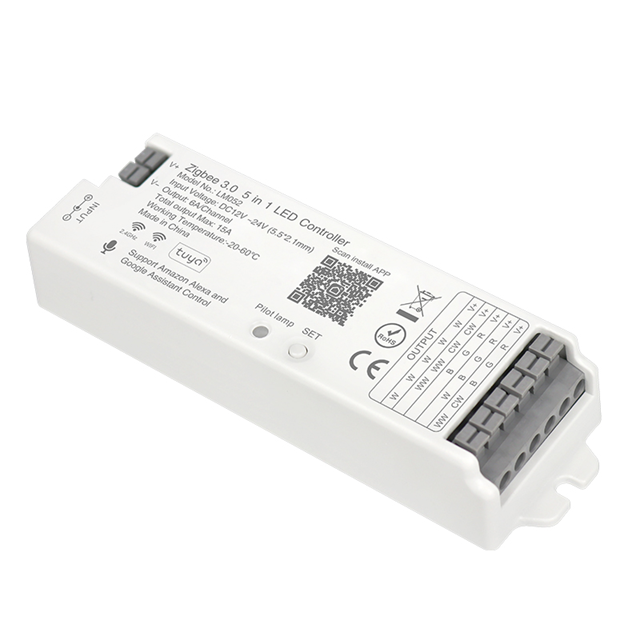

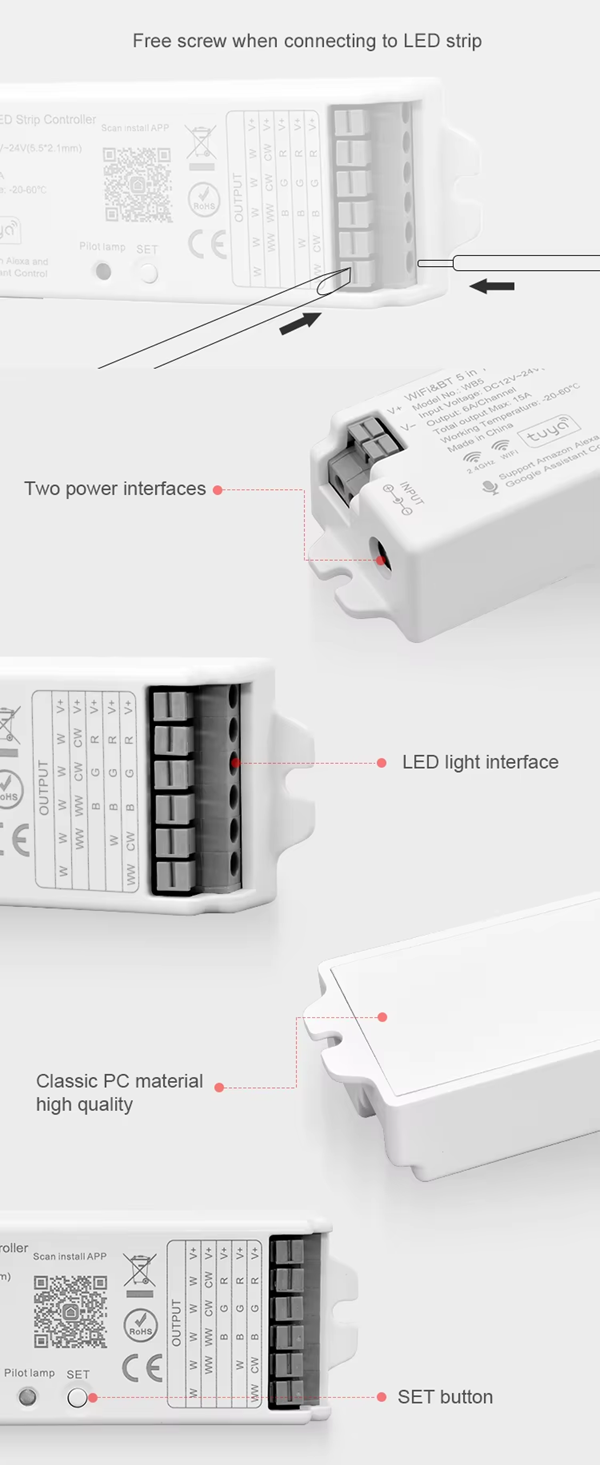

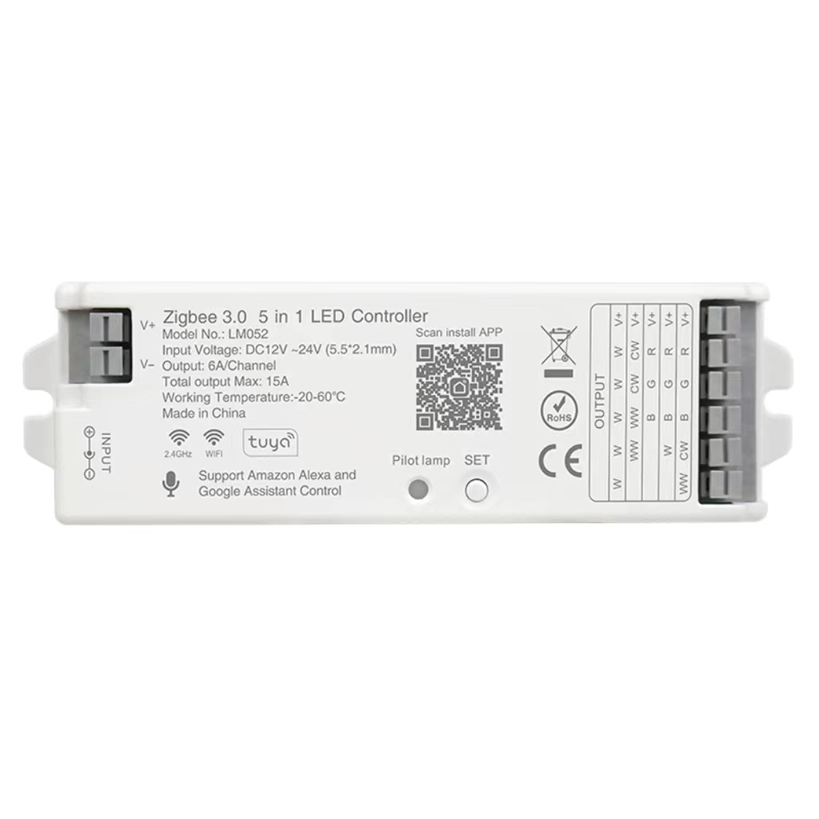

Smart Life Tuya Zigbee LED Strip Light Controller | PWM Single Colour/CCT/RGB/RGBW/RGBCCT DC12-24V

Welcome to Smart Home Automation.

Our Zigbee RGB LED Strip Controller is perfect for controlling your RGB Lighting in your home or for a special occasion.  Can be used for New Year's Day, Halloween, Thanksgiving, Christmas, Valentine's Day, and any sort of Decoration.

It can also trigger automation at the same time as per the scenarios below. For use in Homes, Schools, businesses, warehouses, restaurants, hospitals, etc. Turn your Light ON/ OFF anytime from anywhere in the world.

All you need is Our Zigbee Hub Gateway, Wi-Fi with constant Internet, and Electricity to power the Device and your Lights. Some of Our Devices are Battery Powered so you don't have to worry about messy cables or the need to run cables.

Features;

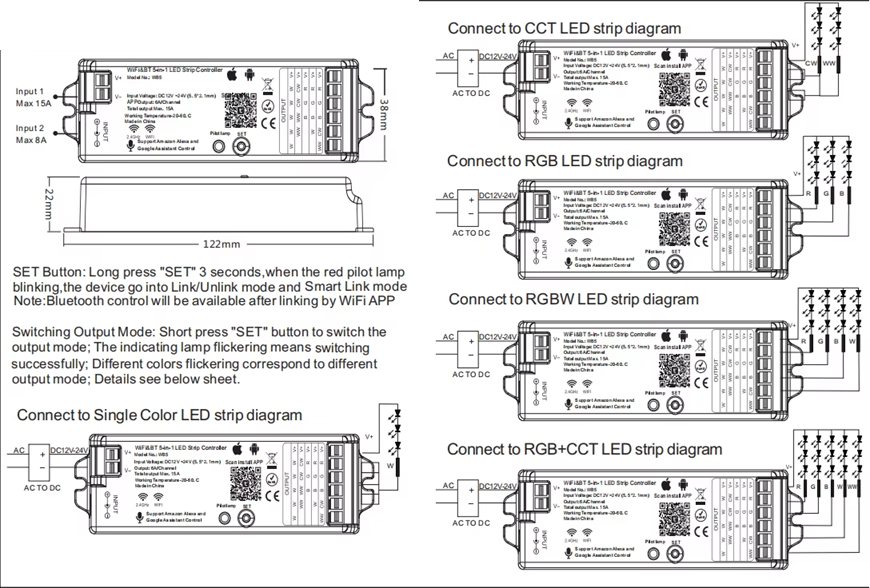

- Control your Single Colour/ CCT/ RGB/ RGBW/ RGBCCT LED Strips.
- Supports DC 12-24V LED Strips.
- Supports 2.4Ghz RF Remote controller (Not Included, Sold Separately).
- Smart Colour changing and Dimmable via the Tuya / Smart Life app or 2.4G RF Remote.
- Music Mode lights up the LED to the sound of Music.
- Also Supports and works with Amazon Alexa, Google Home.

Specifications;
- Electrical Voltage: DC 12-24V | Wire Ports 15A Max | DC Jack Port 8A Max.
- Max Wattage: At 12V, Each channel support up to 6A 72W not exceeding 15A 180W across all channels. | At 24V, Each channel support up to 6A 144W not exceeding 15A 360W across all channels.
- LED Strip Supported: Single Colour/ CCT/ RGB/ RGBW/ RGBCCT. Only 1 mode can be used at a time.
- Controller Type Supported: PWM/ Analog.
- LED Strip must support the Voltage you are inputting into the controller.
- Supports 2.4G RF wireless remotes, RC01RF/ RC02RF/ RC03RF / RC04RF / RC05RF / WR01RF/ WR02RF ). Sold Separately.
-  This model is strictly optimized & designed for PWM Single Colour LED Strips only. Ensure your strip matches the architecture to prevent mixed-up color channels.
- Incompatible Strips: It cannot control SPI LED strip with IC chips (such as those 3-pin RGBIC/ RGBWIC.
- Wireless Frequency: Zigbee 3.0
- Material: V-0 anti-fire PC (Plastic)
- Installation: Indoor or Outdoor. Controller is NOT Waterproof.
- Dimensions: Box: 123 x 40 x 30mm.
- Weight: 80g.

What's in the Package;
1 x Smart Life Tuya Zigbee LED Strip Light Controller | PWM Single Colour/CCT/RGB/RGBW/RGBCCT | DC12-24V.
1 x 3M Tape.
1 x User Manual.

Please note that a Zigbee Hub/ Gateway is needed for this product to work correctly as this product connects to the Zigbee Hub/ Gateway and the Zigbee Hub/ Gateway connects to the Tuya/ SmartLife app to the Internet. Zigbee Hub/ Gateway is available separately for purchase.

Warning: Power Supplies should not exceed more than 80% of their rated output capacity.

Voltage Warning: Input voltage must match the LED strip. A 12V power supply for a 12V LED strip, and a 24V power supply for a 24V LED strip. Connecting a 12V strip to a 24V source will instantly destroy the controller and lighting.

No SPI Support: This controller works only with PWM/Analog strips. It cannot control 3-pin SPI strips that have built-in IC chips.

SPI (Serial Peripheral Interface) is used to control individually addressable LEDs for dynamic animations, whereas PWM (Pulse Width Modulation) controls the overall brightness & Colour across the whole strip.

Network Constraint: Only supports 2.4 GHz Wi-Fi networks. 5.0 GHz Wi-Fi is strictly unsupported.

Remote sold separately: 2.4G RF physical remotes must be purchased separately.
