Smart Life Tuya WIFI 3CH Bidirectional Mini Power Monitor Clamp Meter | 240V | 80A | Three Phase

Welcome to the Digital Life Smart Home Automation Range.

The smart 3CH Bidirectional Mini Power Monitor Clamp Meter provides the perfect intelligent power Monitoring of your Smart Home or workplace. This model can be used for Single or Three Phase power.

View energy Consumption Data on the app to correctly track the energy usage around your home. Know which devices consume the most energy, and plan to save energy and electricity bills.

This Basic Power Energy Monitor is used for monitoring Energy consumption from your Mobile Smartphone via the Tuya/ Smart Life App from anywhere in the world.

All you need is Our Smart Home Devices, Wi-Fi with constant Internet, and Electricity to power the Device. Some of Our Devices are Battery Powered so you don't have to worry about messy cables or the need to run cables.

Features;
Monitor Power Electricity usage of the whole house or Appliances connected to the device.
Real-time monitor of Voltage, Current (A), Power wattage, and Total Kilowatt Hours including a Daily (Per Hour), Monthly (Per day), Yearly (Per month), and total KWh view.
Can be used with a Single Phase connection with each clamp connected to different Devices to monitor each device or Three Phase connection.
Create an automation and get alerted via Notification on your Mobile Smartphone within seconds if a certain Voltage / Current is reached.
Can be used to Monitor any appliance under 17600W (80A) Max.

In-App Features;

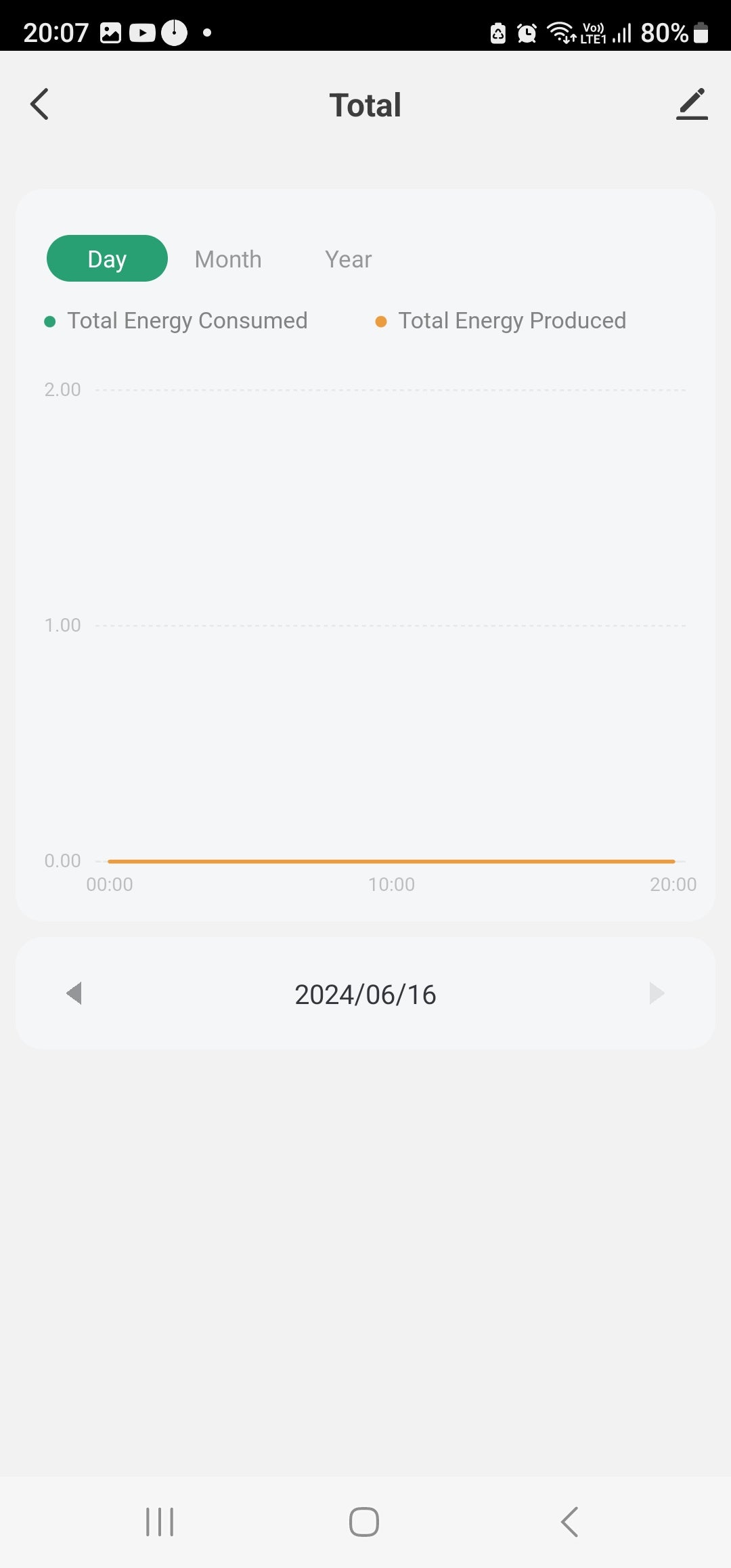

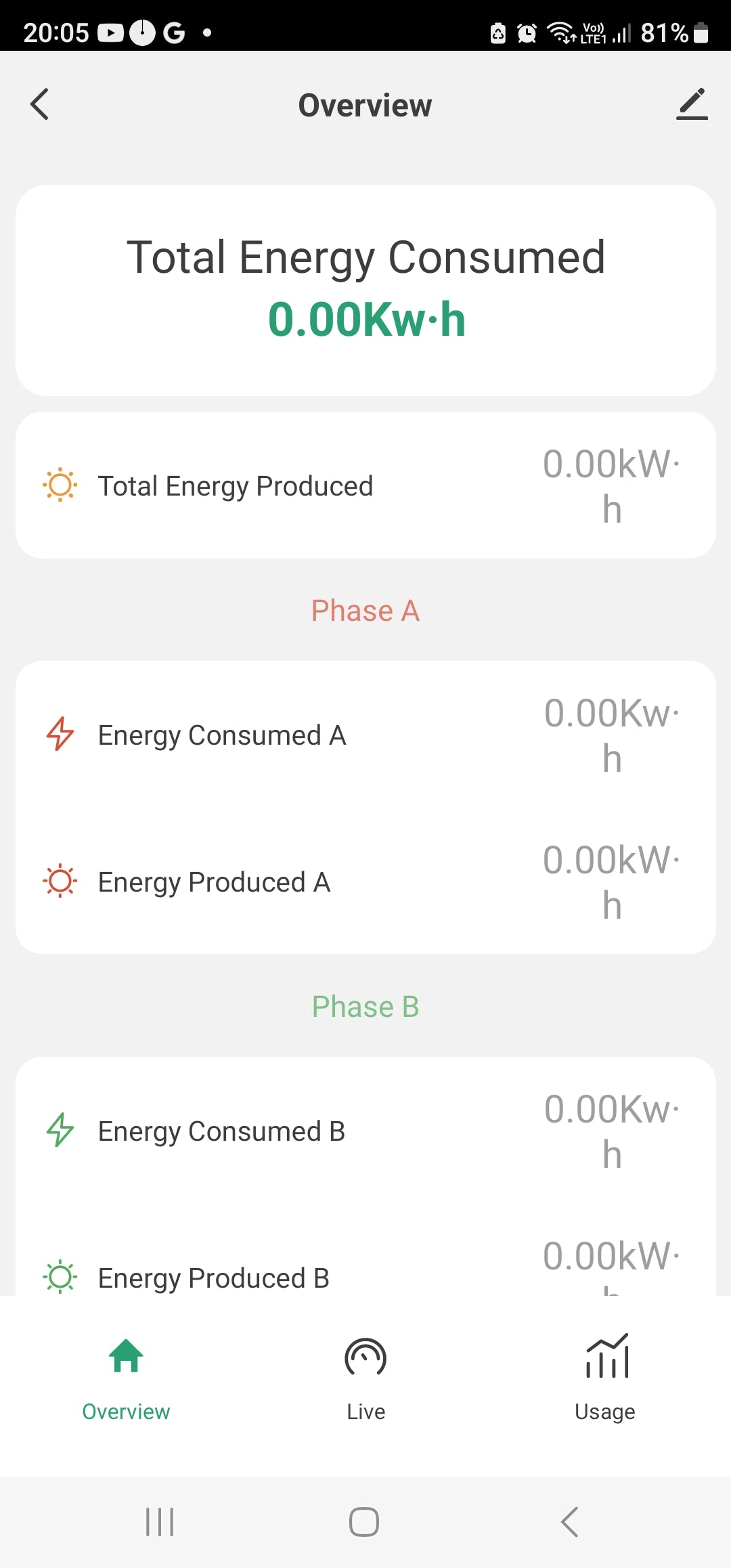

Overview: View the Total Energy Consumed (Forward Energy) and Produced (Reverse Energy) for all phases.
View the Total Energy Consumed and Produced for each phase.

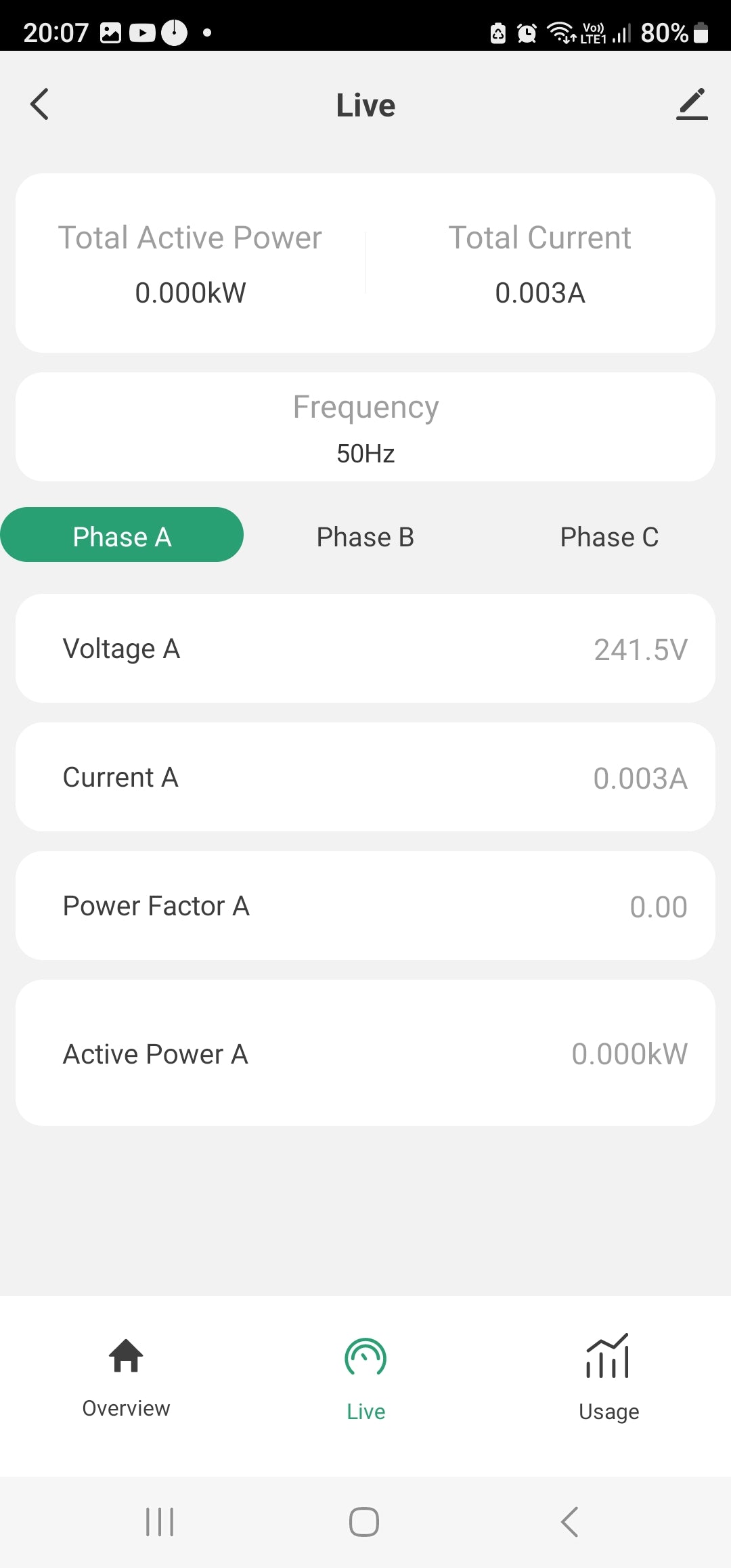

Live: Phase A/B/C: View Real-time Voltage, Current (Amps), Power Factor, Active Power wattage, frequency, and consumption for each channel and totals for all channels.

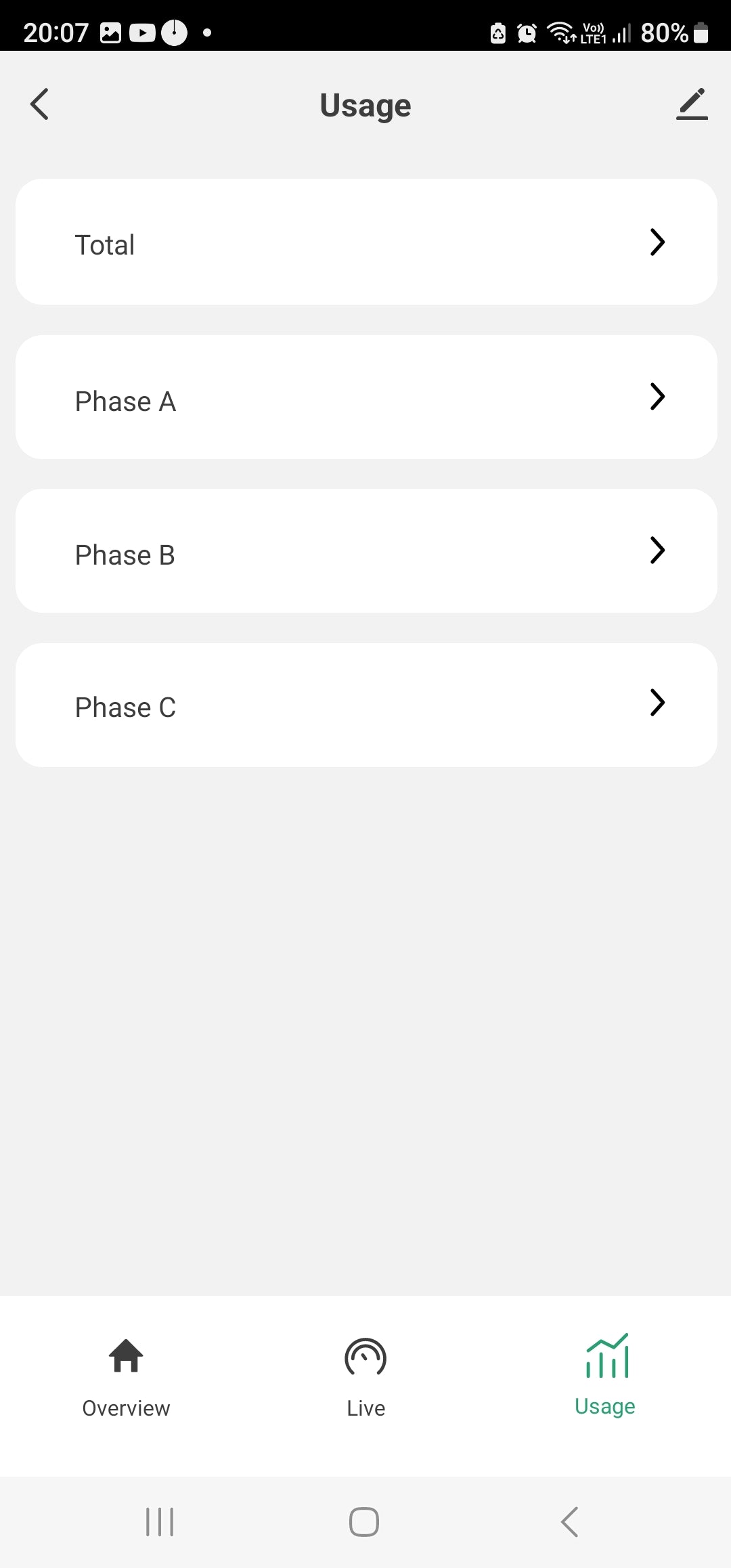

Usage: Total and Per Phase View of Daily (Per Hour) / Monthly (Per day) / Yearly (Per month) KWh view per phase and total for all phases.

Specifications;
Electrical Voltage: AC100V-240V.
For Single Phase or Three Phase Power Monitoring.
Power Measuring Range: Up to 17600W 17.6KW (80A) Max.
Clamp Diameter size for Wire cables up to 10mm.
This Device Only Measures real-time and total energy consumption.

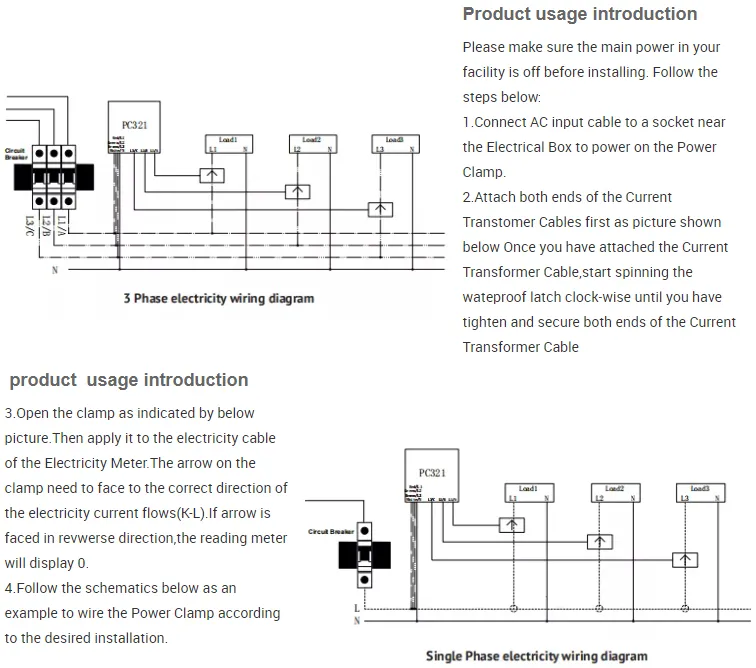

The clamp must be connected directly to only the Live wire as per the diagram picture.
Please note that Data cannot be extracted from the app. You can only view the data on a per-hour, per-day, or per-month Basis on the app.
Wireless Frequency: WiFi Standards IEEE 802.11 b/n/g on the 2.4G Hz Only.
Color: White.
Installation inside Distribution Box. The product and components are not waterproof.
Dimensions: Box: 222 x 150 x 66mm | White Controller Box only: 86 x 86 x 37mm (without Clamps)
Weight: 0.6kg.

What's in the Package;

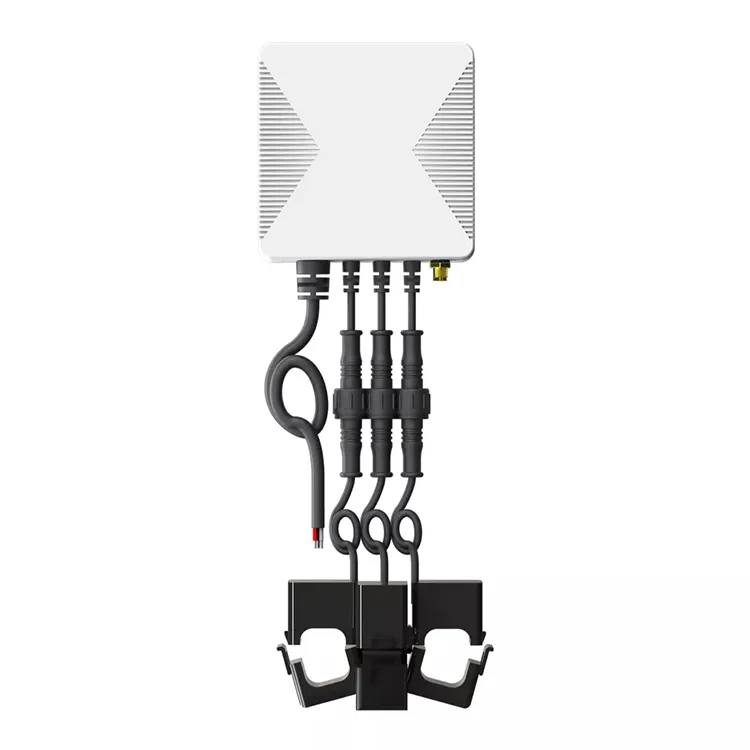

1 x Tuya WIFI 3CH Bidirectional Mini Power Monitor Clamp Meter | 240V | 80A | Single/ Three Phase.

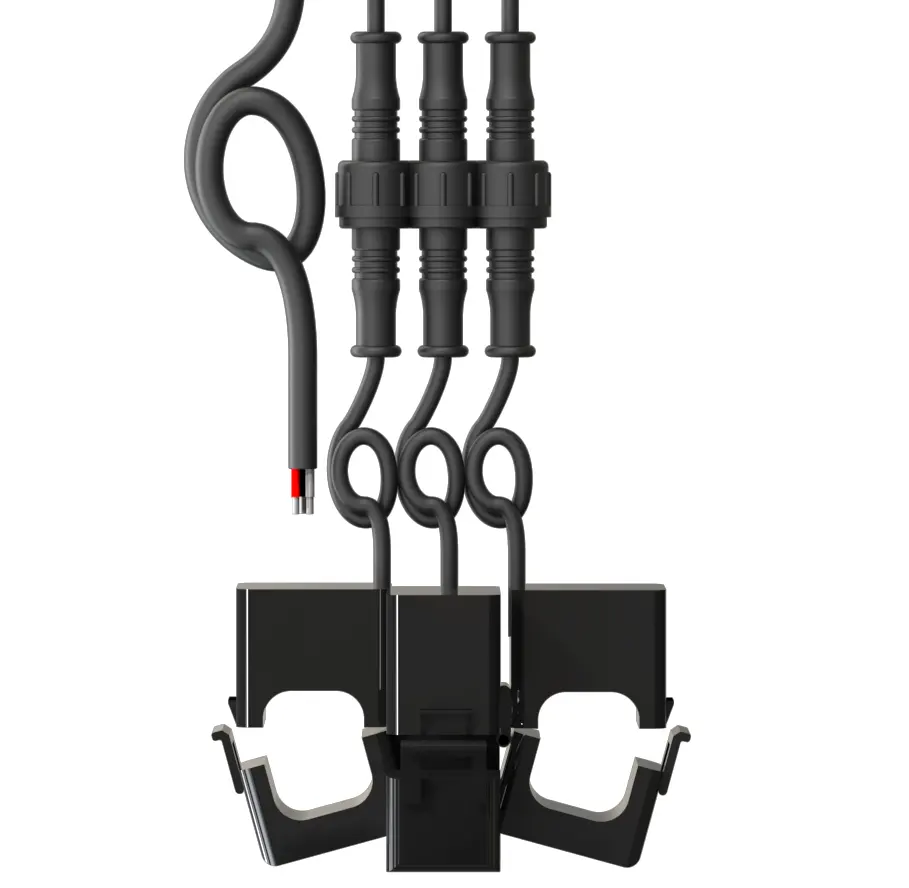

3 x 80A Clamp Meter w/ 70cm cable.

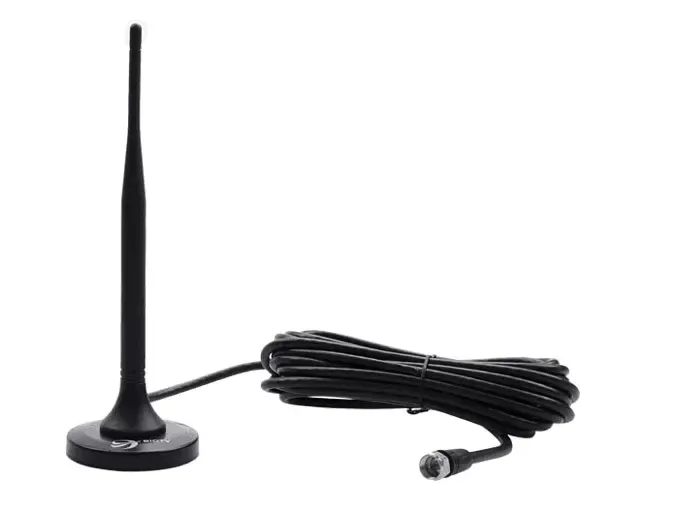

1 x External Wi-Fi antenna.
1 x Screw Set.
1 x User Manual.
