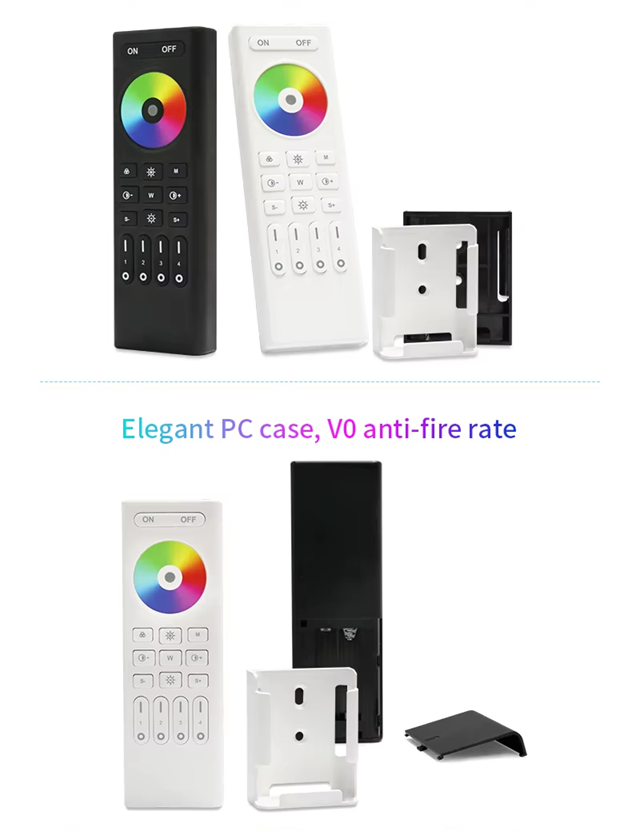

Wireless 2.4G RF Remote Controller | 4 Zones | RGB/ RGBW/ RGBCCT | Dimming | 3V | RC03RF | Black

Welcome to Smart Home Automation.

For use with our Range of LED Strip Controllers.

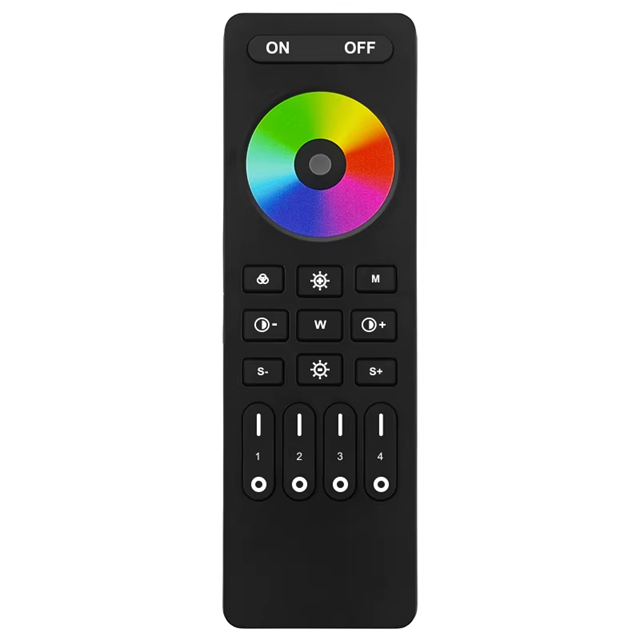

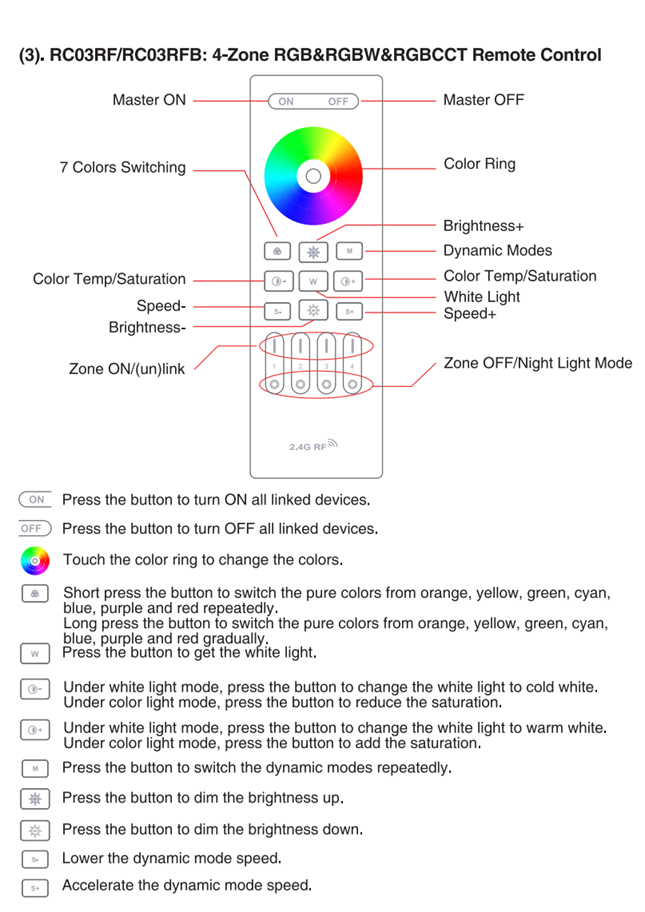

Controller Buttons;
Master ON | Master ON
Touch Pad Slider for changing Colour.
7 Colour Changing. | Brightness + |  Dynamic mode.
Colour Temperature Saturation - | White Light | Colour Temperature Saturation +.
Speed - | Brightness - | Speed +.
Zones 1, 2, 3, 4 ON/ OFF.

Press the button to turn ON all linked devices
Press the button to turn OFF all linked devices
Touch the Colour slider to change Colour.
Short press the button to switch the pure colors from orange, yellow, green, cyan,blue, purple and red repeatedly.
Long press the button to switch the pure colors from orange, yellow, green, cyan,
blue, purple and red gradually.
Press the button to get the white light.
Under white light mode, press the button to change the white light to cold white.
Under color light mode, press the button to reduce the saturation.
Under white light mode, press the button to change the white light to warm white.
Under color light mode, press the button to add the saturation.
Press the button to switch the dynamic modes repeatedly
Press the button to dim the brightness up.
Press the button to dim the brightness down.
Lower the dynamic mode speed.
Accelerate the dynamic mode speed.

Group Control
You can add an endless number of lights to a zone on the 4-channel remote by linking
the lights to different zones. This way, you are completely flexible in creating different
group combinations.
Note:
1. The user can re-programme freely as needed. One remote can control countless
lamps or controllers, but one lamp or controller can only be controlled by five
remotes (Max).
2. Please check the battery installation and controller (totally discharge the power),
When you programme after switching off and switching on.

Attention
1. This remote only controls our 2.4GHz RF products; it cannot control other products not
made by us.
2. When using the remote, if the indicated lamp is blinking quickly, please change the
battery in time. Please don't use a poor-quality battery to avoid the leaking of battery
liquid and damage to the remote.
3. This 2.4GHz remote is a precise electronic product; don't use it in humid, high
temperature, dusty, and high voltage environments; Saving it at indoor, dry and static-free environment.
4. Please don't use the remote in the wide-range metal or strong electromagnetic wave
area, otherwise, it will badly affect the controlling distance.

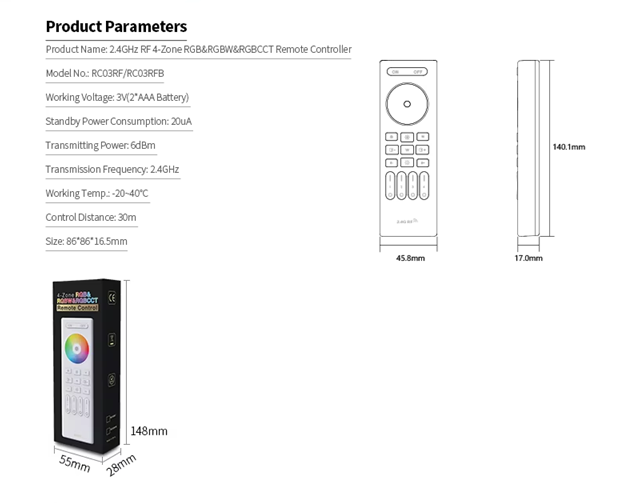

Specifications;
- Electrical Voltage: DC 3V (2 x AAA Batteries Included)
- Supported by our RGB/ RGBW/ RGBCCT Controllers.
- Wireless Frequency: 2.4GHz RF Only.
- Material: Plastic.
- Installation: Indoor. Wall Mountable. Remote is NOT Waterproof.
- Dimensions: Box: 146 x 55 x 24mm.
- Weight: 80g.

What's in the Package;
1 x Wireless 2.4G RF Remote Controller | 4 Zones | RGB/ RGBW/ RGBCCT | Dimming | 3V | RC03RF | Black.
1 x 3M Tape.

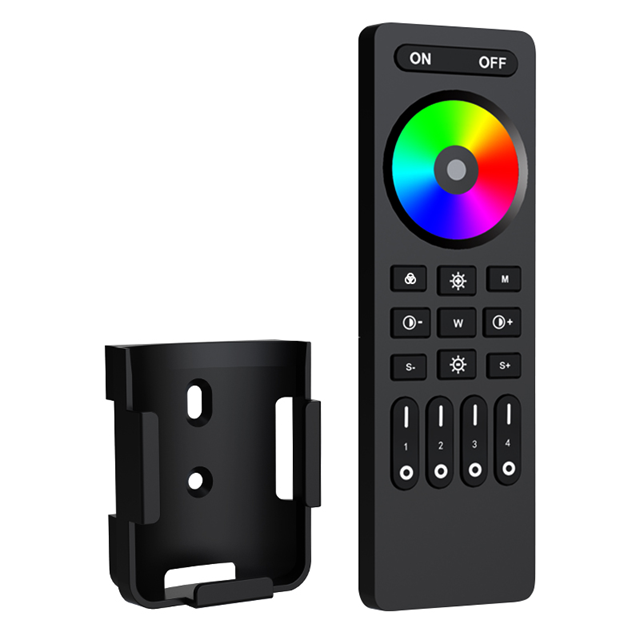

1 x Wall Mount Bracket.
1 x User Manual.

LED Strip Controllers Sold Separately.
