Wireless RF433Mhz Exit Button Door Release Button for 12V Access Control | Dry Contact

Welcome to the Digital Life Smart Home Automation Range.

Our Wireless Exit Button Door Release Button for 12V Access Control | Dry Contact is the perfect Wireless Exit Door Release Button.

Suitable for Homes, Apartments, Houses, Guest Lodges, Bed, and Breakfast accommodations, Airbnb, Shops, Farms, Businesses, etc. This device is for Single Door use.

Features;
Wireless RF433Mhz Exit Button supporting Rolling Code Encryption which is secure and reliable.
Support Toggle mode (ON/OFF) | 1 second | 5 seconds open time.
1 Controller can pair up to 6 wireless Exit Buttons.
Wireless Remote for Inside the house and Controller connects to the Electric Lock/ Access Controller's Exit Wires.

Specifications;
Model: Ebutton W1DC
Electrical Voltage: PCB Controller: DC12V | Working Current ≤60mA | Idle Current ≤20mA. |
Electrical Voltage: Wireless Exit Button: 3V CR2032 Battery | Working Current ≤8mA | Idle Current ≤5uA.
Dry Relay Contact Load: ≤5A 12V.
Communication Distance: Between Button and Controller is Less than 50m open area.

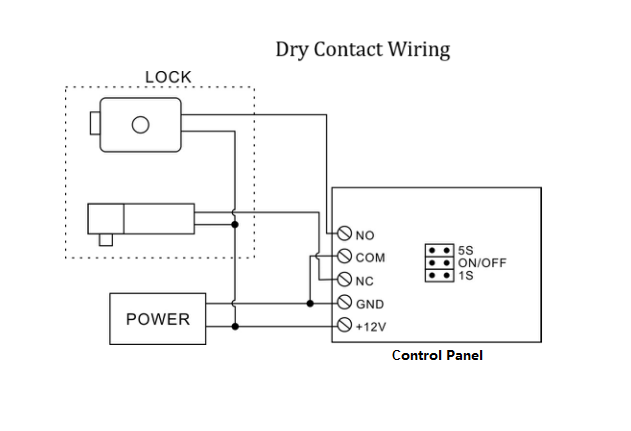

Wiring Connections support +12V, Ground (GND), Normally Open, Common, and Normally Closed).
Will connect to 12V DC+ (Live) and GND (Ground) input to power up the unit and COM to COM and NO (Normally Open) connected to PB (Push Button) / BT (Button Trigger) on your Motor Circuit Board.
Material: PC Button & PCB Controller.
Color: White.
Installation: Indoor or Outdoor. The product is not Waterproof.

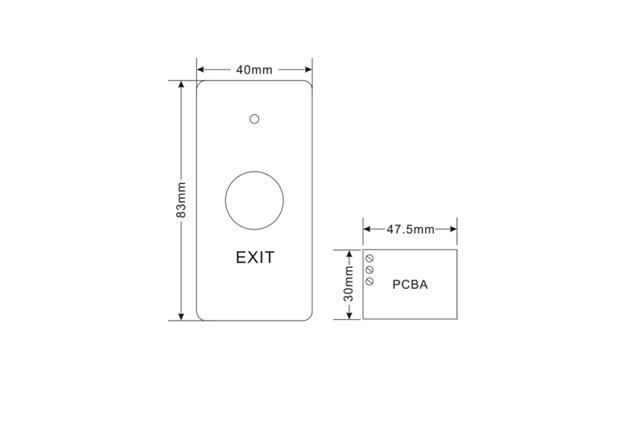

Dimensions: Box: 110 x 57 x 77mm
Weight: 80g.

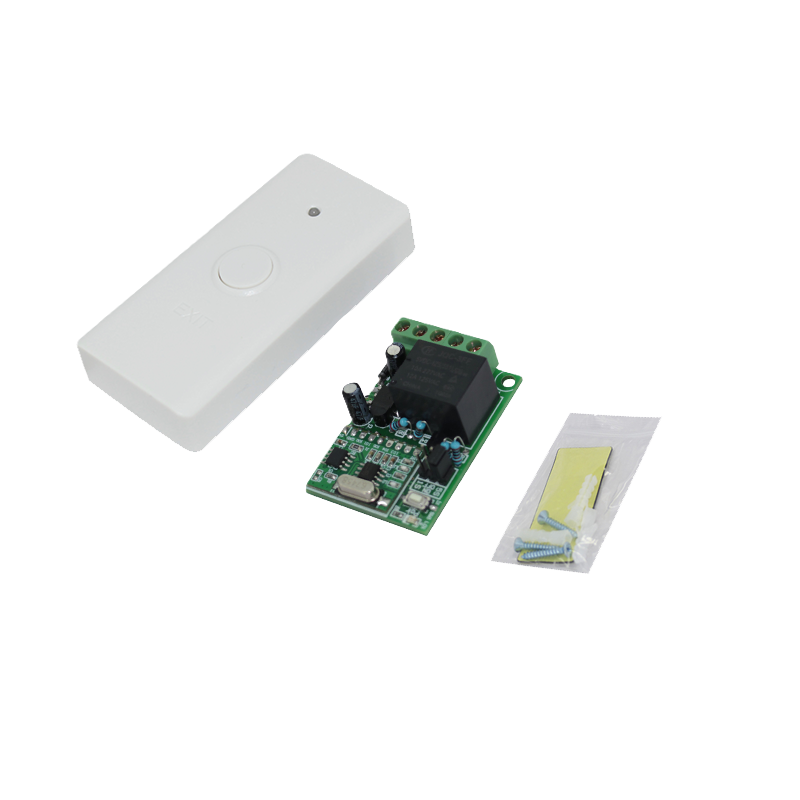

What's in the Package;

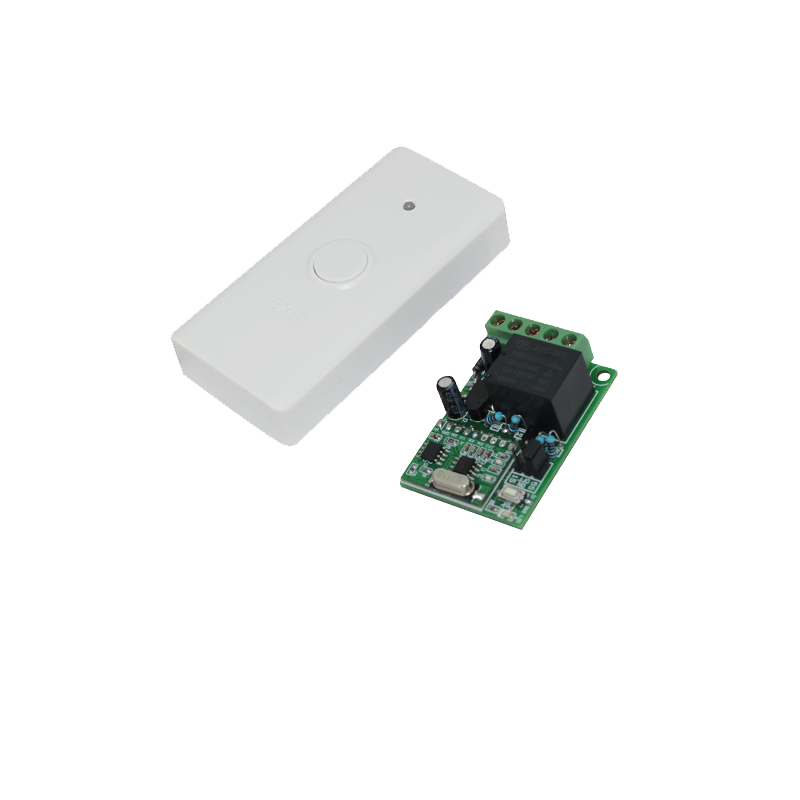

1 x Wireless Exit Button Door Release Button w/ Battery.

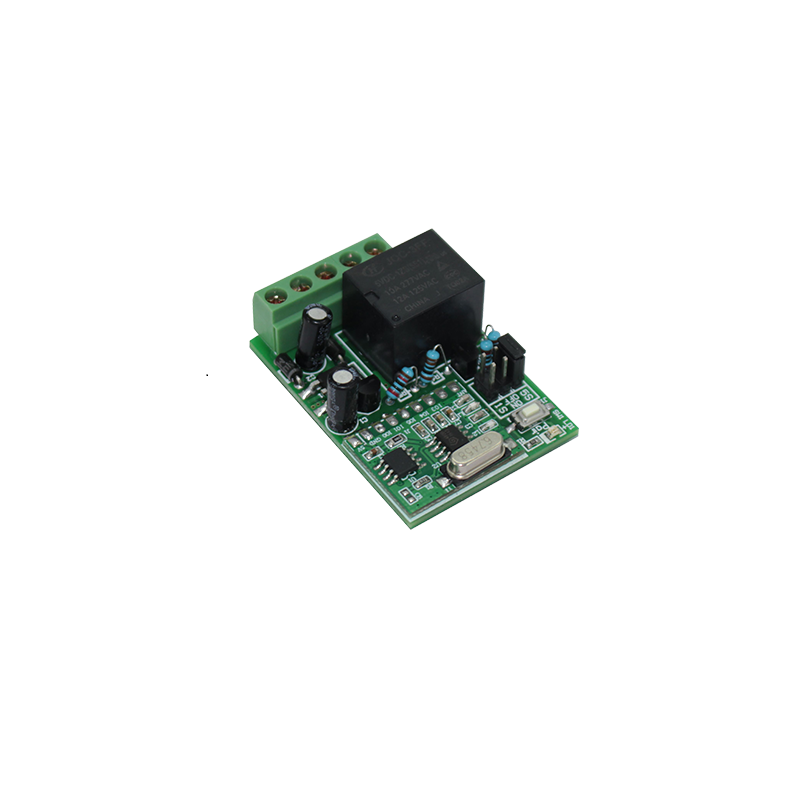

1 x Dry Contact Controller.
1 x 2 Way tape.
1 x Set of Screws.
