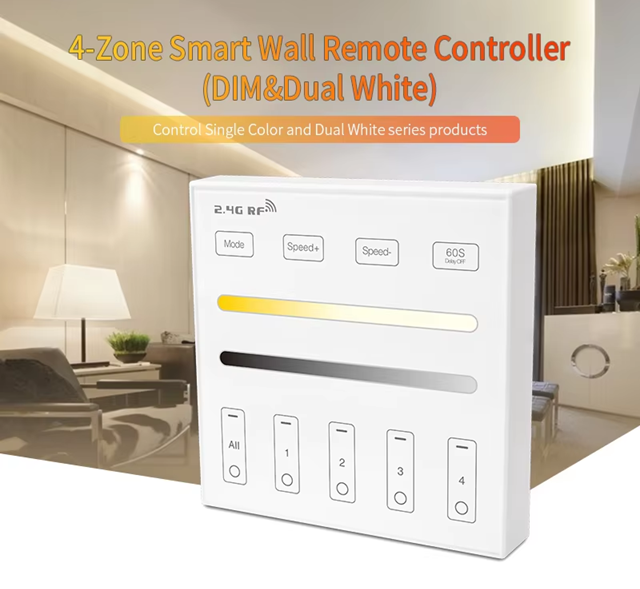

Wireless Touch 2.4G RF Remote Controller | 4 Zones | CCT | Dimming | 3V | WR02RF | White

Welcome to Smart Home Automation.

For use with our Range of LED Strip Controllers.

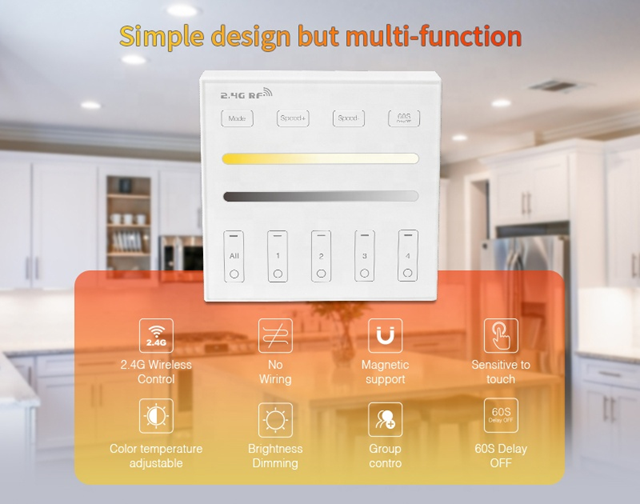

High precision capacitive touch screen IC which is very Stable and Sensitive. 2.4GHz high RF wireless control with long distance controlling, low power consumption and high speed transmitting rate. This wall remote widely works on our smart LED Lighting, LED controllers, etc.

When touching the button, LED pilot lamp will flash once with different sound. (Touching slider with no sound).

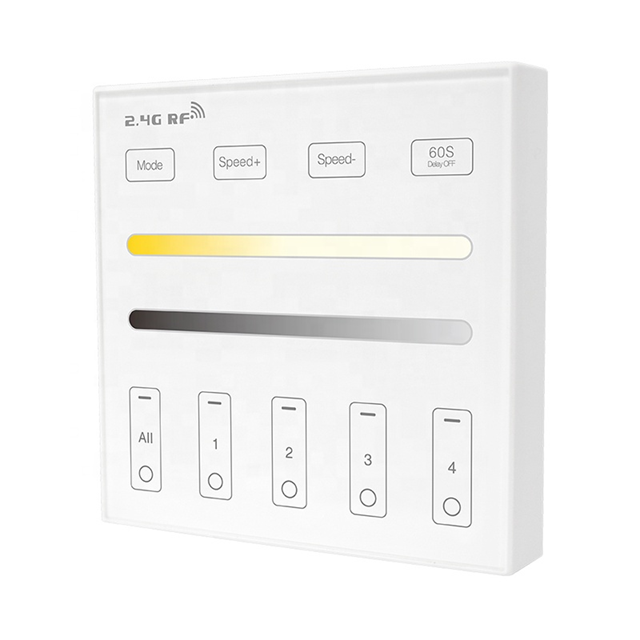

Controller Buttons;

Dynamic Mode | Mode Speed + | Mode Speed - | 60 Seconds Delay OFF.
CCT Adjust / Color Saturation Slider.
Brightness Dimming Slider.
AII ON | All OFF | Zones 1, 2, 3, 4 ON / OFF.

Touch the slider to adjust color temperature.
Note: when you control single color lights, the slider not working.
Touch dimming slider to change the brightness.
ALL ON: Touch to turn on all linked lights.
Long press over 5 seconds to turn ON the pilot sound.(The pilot sound is opened by default).
Zone(1-4) ON: Touch zone ON, turn on zone-linked lights.
ALL OFF: Touch to turn off all linked lights.
Long press 5 seconds to turn OFF the pilot sound.
Zone(1-4) OFF: Touch zone OFF, tumn off zone-linked lights.
Long press Zone (1-4) OFF to get the night light mode.

Switching dynamic modes.
Accelerate the speed on current dynamic mode.
Slow the speed on current dynamic mode.
When the light is ON, press "60S Delay OFF", the light will be OFF
automatically after 60 seconds.
Note: When set up "60S Delay OFF" function, the other buttons
not working during the 60 seconds; uses can press "60S Delay
OFF" button to delete this function, then other buttons can works
again.

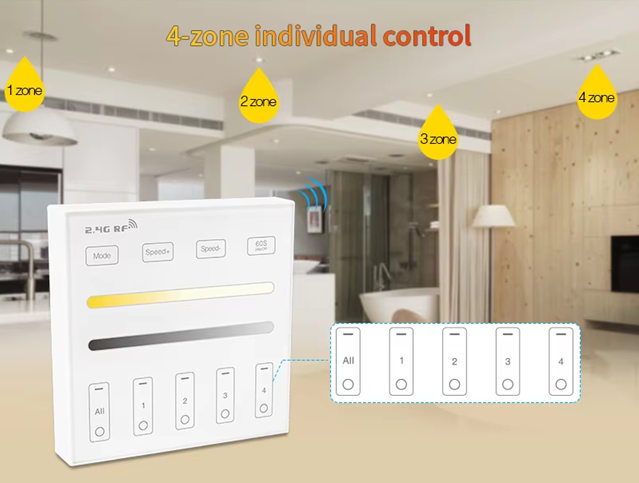

Group Control
You can add an endless number of lights to a zone on the 4-channel remote by linking
the lights to different zones. This way, you are completely flexible in creating different
group combinations.
Note:
1. The user can re-programme freely as needed. One remote can control countless
lamps or controllers, but one lamp or controller can only be controlled by five
remotes (Max).
2. Please check the battery installation and controller (totally discharge the power),
When you programme after switching off and switching on.

Attention
1. This remote only controls our 2.4GHz RF products; it cannot control other products not
made by us.
2. When using the remote, if the indicated lamp is blinking quickly, please change the
battery in time. Please don't use a poor-quality battery to avoid the leaking of battery
liquid and damage to the remote.
3. This 2.4GHz remote is a precise electronic product; don't use it in humid, high
temperature, dusty, and high voltage environments; Saving it at indoor, dry and static-free environment.
4. Please don't use the remote in the wide-range metal or strong electromagnetic wave
area, otherwise, it will badly affect the controlling distance.

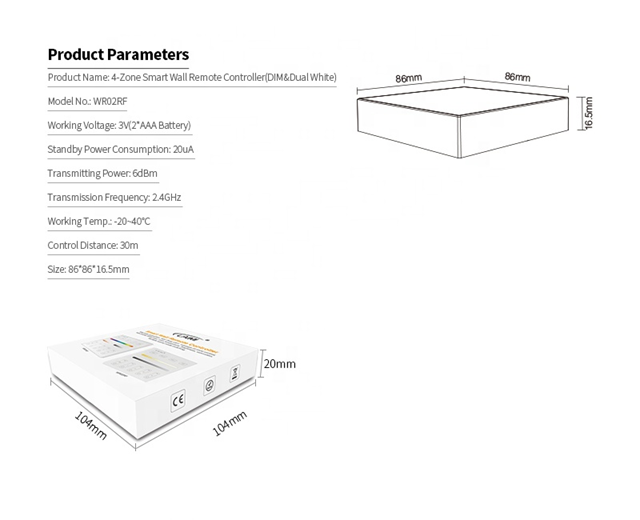

Specifications;

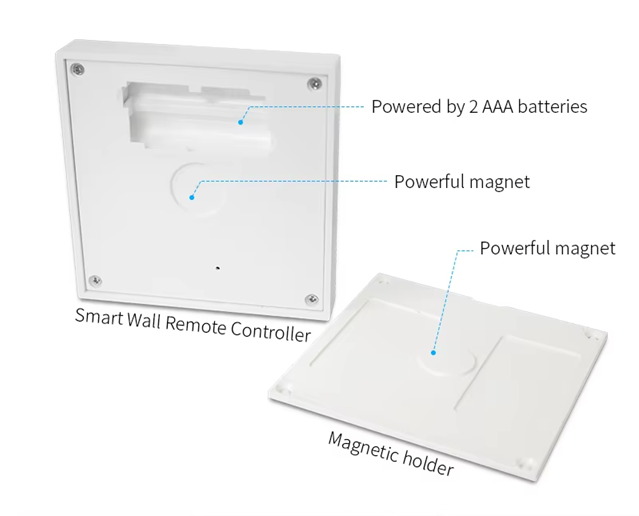

- Electrical Voltage: DC 3V (2 x AAA Batteries Included)
- Supported by our CCT Controllers.
- Wireless Frequency: 2.4GHz RF Only.

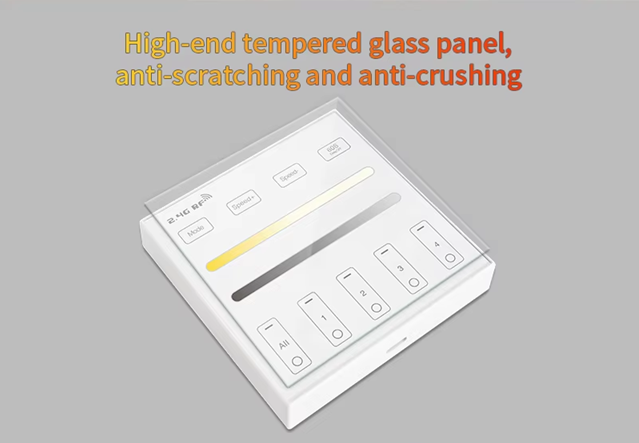

- Material: Glass & Plastic.
- Installation: Indoor. Wall Mountable. Remote is NOT Waterproof.
- Dimensions: Box: 104 x 104 x 27mm. | Remote is 86 x 86 x 18mm.
- Weight: 140g.

What's in the Package;
1 x Wireless Touch 2.4G RF Remote Controller | 4 Zones | CCT | Dimming | 3V | WR02RF | White.
1 x 3M Tape. (Stuck on back cover already)
1 x User Manual.

LED Strip Controllers Sold Separately.
